Produktbeschreibung

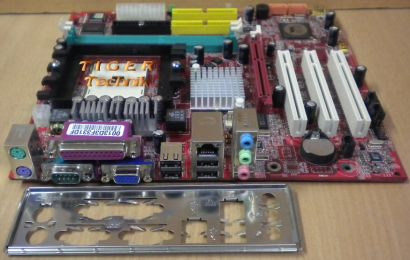

MSI MS-7181 K8MM3-V V1.0 Mainboard + Blende
Sockel 754 Sound VGA LAN AGP 8x
Technische Daten
CPU
Supports 64-bit AMD® K8 Athlon 64/ Sempron processor (Socket 754).
Supports 3700+ or higher CPU.
Chipset
VIA K8M800 Chipset
-HyperTransportTM connection to AMD K8 Athlon64/ Sempron processor
-8 or 16 bit control/address/data transfer both directions
-800/600/400/200 MHz “Double Data Rate” operation both direction
-AGP v3.0 compliant with 8x transfer mode
-Graphic integrated
VIA VT8237R/ VT8237R Plus Chipset
- Integrated Hardware Sound Blaster/Direct Sound AC97 audio
- Ultra DMA 66/100/133 master mode PCI EIDE controller
- ACPI& PC2001 compliant enhanced power management
- Supports dual channel native SATA controller up to 150MB/s
- Supports SATA RAID 0 or RAID 1
- Supports 8 USB2.0 ports
- Supports SATA2 Device (for VT8237R Plus only.)
Main Memory
Supports DDR266/333/400 DDR SDRAM, and unbuffered DIMMs for two 184- pin DDR DIMMs.
Supports DIMM sizes up to 2GB of memory in total.
Slots
One AGP 8x/4x slot.
Three 32-bit/33 MHz PCI slots.
On-Board IDE
An IDE controller on the VT8237R/VT8237R Plus chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes.
- Can connect up to four Ultra ATA drives.
Serial ATA/150 controller integrated in VT8237R/ VT8237RPlus.
- Up to 150MB/sec transfer speeds. (VT8237R Plus supports SATA2 device.)
- Can connect up to two Serial ATA drives.
- Supports RAID 0 or 1
On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 1 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 2 serial ports (Rear * 1/ Front * 1)
- 1 VGA port onboard
- 1 parallel port supports SPP/EPP/ECP mode
- 1 IrDA pinheader (optional)
- 1 CD-In pinheader
- 1 Aux-In pinheader
- 1SPDIF out pinheader (optional)
- 1 audio port (Line-in/Line-out/MIC)
- 8 USB 1.1/2.0 ports (Rear * 4/ Front * 4)
Audio
AC’97 link controller integrated in VIA VT8237R/ VT8237R Plus.
6 channels software audio codec VIA VT1617A
- Compliance with AC97 v2.3 Spec.
- Meet PC2001 audio performance requirement.
LAN
VIA VT8237R/ VT8237R Plus MAC + VIA 6103 Ethernet PHY
- Supports 10/100Mb/s auto-negotiation operation.
- Compliant with PCI v2.2 and PC99 standard.
- Supports ACPI Power Management.
BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.
Dimension and Mounting
Micro-ATX Form Factor: 24.4 cm (L) x 21.5 cm (W).
6 mounting holes
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
