Asus A8N-SLI Rev1.02 Mainboard +Blende Sockel 939 nForce4 SLI SATA PCIe LAN*m713

Asus A8N-SLI Rev1.02 Mainboard +Blende Sockel 939 nForce4 SLI SATA PCIe LAN*m713
Bild vergrößern

27,95 EUR

inkl. Mwst. Differenzbesteuert nach §25a UStG gegebenfalls plus Versandkosten

Lieferzeit: 3 Werktage

Lagerbestand: 1

Art.Nr.: m713
Asus A8N-SLI Rev1.02 Mainboard +Blende Sockel 939 nForce4 SLI SATA PCIe LAN*m713

Asus A8N-SLI Rev 1.02 Mainboard + Blende

Sockel 939 nForce4 SLI Dual PCIe x16

SATA GBLAN IEEE1394 Firewire Optical & Coaxial SPDIF

Technische Daten

Genaue Bezeichnung: Asus A8N-SLI/EAYZ

CPU

Socket 939 for AMD Athlon™ 64 FX/AMD Athlon™ 64 X2 (möglicherweise Bios Update erforderlich)/ AMD Athlon™ 64 processor

Supports AMD 64 architecture that enables simultaneous 32-bit and 64-bit architecture

Supports AMD® Cool ‘n’ Quiet! Technology

Chipset

NVIDIA® nForce™ 4 SLI

System Bus

1 GHz (K8) / 800 MHz

Memory

Dual-channel memory architecture

4 x 184-pin DIMM sockets support ECC/non-ECC unbufferred 400/333/266 MHz DDR memory modules

Supports up to 2 GB system memory

Expansion slots

2 x PCI Express x16 slots (SLI Mode)

2 x PCI Express x1 slots

3 x PCI slots

Storage

NVIDIA®nForce™ 4 SLI chipset supports:

- 2 x Ultra DMA 133/100/66/33 for up to 4 devices

- 4 x Serial ATA drives with RAID 0, RAID 1, RAID 0+1 configurations

Special features

ASUS EZ Flash, Q-Fan2, CrashFree BIOS 2, MyLogo2

Internal connectors

1 x Floppy disk drive connector

2 x IDE connectors

4 x Serial ATA connectors

1 x CPU fan connector

2 x Chassis fan connectors

1 x Chipset fan connector

1 x Power fan connector

1 x Serial port connector (COM port)

1 x 24-pin ATX power connector

1 x 4-pin ATX 12 V power connector

3 x USB 2.0 connectors for 6 additional USB 2.0 ports

2 x Internal audio connectors (CD/AUX)

1 x IEEE 1394a connector

1 x Front panel audio connector

1 x System panel connector

1x Game Panel connector

LAN

Marvell® 88E81111 PCI Express™ Gigabit LAN controller

AI Audio

Realtek® ALC850 8-channel CODEC

1 x Coaxial S/PDIF out port

1 x Optical S/PDIF out port

IEEE1394 Firewire

T1 1394a controller supports 2 x IEEE 1394a ports

USB

Supports up to 10 USB 2.0 ports

Rear panel

1 x Parallel port

1 x LAN (RJ-45) port

4 x USB 2.0 ports

1 x Optical S/PDIF out port

1 x Coaxial S/PDIF out port

2 x PS/2 ports (keyboard/mouse)

1 x IEEE 1394a port

8-channel audio ports

BIOS features

4 Mb Flash ROM, Phoenix-Award BIOS, LPC, Green, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a

Power Requirement

ATX power supply (with 24-pin and 4-pin 12 V plugs)

ATX 12 V 2.0 compliant

Form Factor

ATX form factor: 12 in x 9.6 in (30.5 cm x 24.4 cm)

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

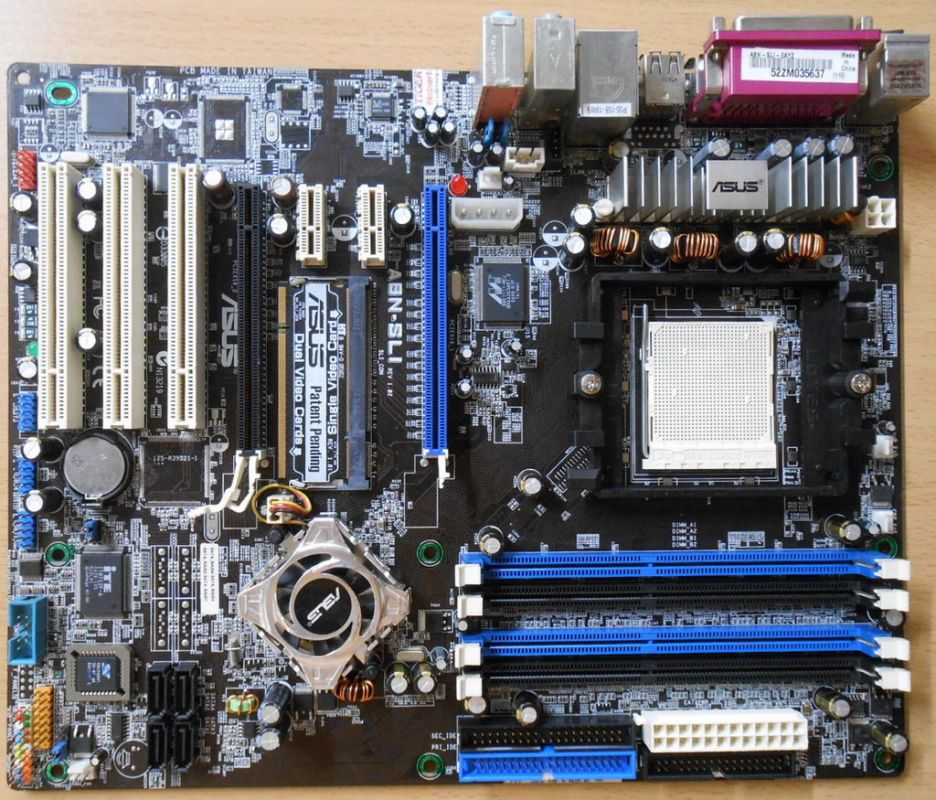

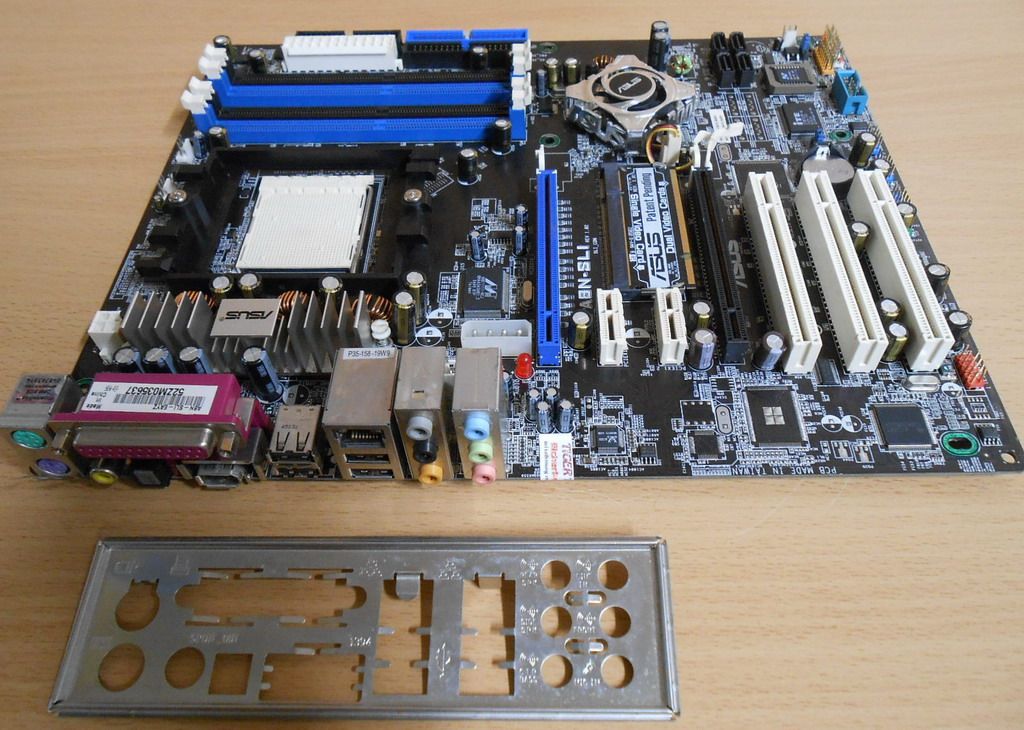

Abbildung ähnlich

Asus A8N-SLI Rev1.02 Mainboard +Blende Sockel 939 nForce4 SLI SATA PCIe LAN*m713

Diesen Artikel haben wir am Dienstag, 10. April 2018 in unseren Katalog aufgenommen.
