Produktbeschreibung

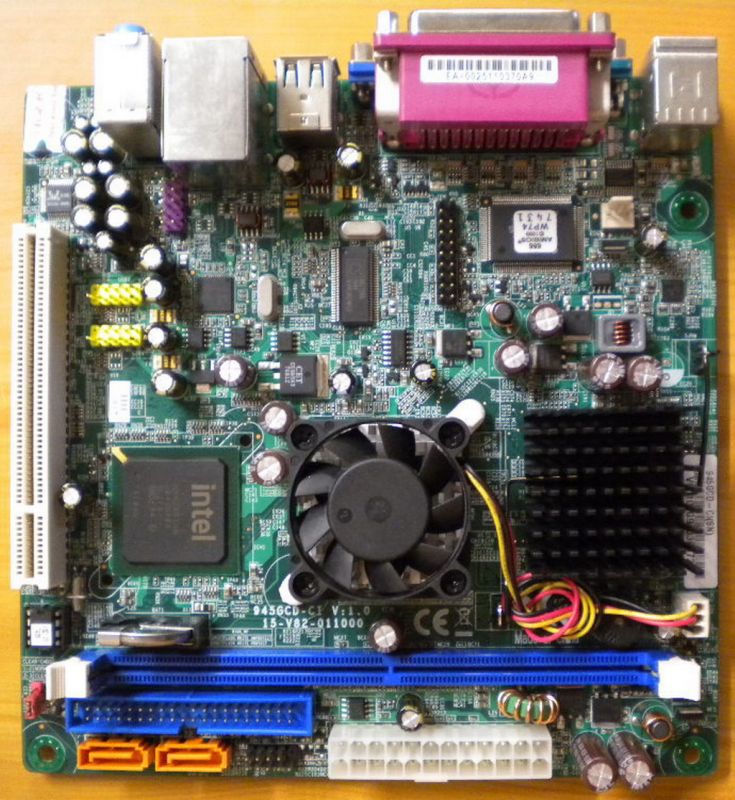

ECS 945GCD-CI V1.0 Mainboard + Blende
Intel ATOM 1.60 GHz CPU VGA LAN Audio
Technische Daten
ausgebaut aus eMachines EL1600 PC
CPU
Onboard Intel Atom (Diamondville) single core / dual core FCBGA 437-pin
1.60Ghz CPU speed with 512KB cache (single core) / 1MB cache (dual core)
FSB 533MHz
CHIPSET
Intel® 945GC & ICH7
North Bridge: Intel® 945GC
South Bridge: Intel® ICH7
GRAPHICS
Integrated Intel® Graphics Media Accelerator 950 ( GMA950 )
Max Dynamic Video Memory up to 8MB
MEMORY
Single-channel DDR2 memory architecture
1 x 240-pin DDR DIMM socket support up to 2 GB
Support DDR2 533/400 DDR2 SDRAM
EXPANSION SLOT
1 x PCI slot
STORAGE
Supported by Intel®ICH7
1 x IDE channel support 2 Ultra DMA100/66 devices
2 x Serial ATA 3.0Gb/s devices
AUDIO
Realtek ALC662 6-channel audio
LAN
Realtek RTL8201E 10/100 Lan(Co-layout RTL8111C)
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
4 x USB ports
1 x RJ45 LAN connector
1 x Audio port (Line-in,Line-out,Mic-out)
1 x VGA port
1 x Serial port (COM1)
1 x Parallel port (LPT)
INTERNAL I/O CONNECTORS & HEADERS
1 x SYS Fan header
1 x 24-pin ATX Power Supply connector
1 x IDE connector
2 x Serial ATA connectors
1 x Front panel switch/LED header
1 x Front panel audio header
2 x USB 2.0 headers support additional 4 USB 2.0 Ports
1 x TPM header
SYSTEM BIOS
AMI BIOS with 4Mb SPI Flash ROM
Supports Plug and Play , ACPI& DMI
Supports STR/STD, Hardware monitor
Supports PCI interrupt selection
Audio, LAN, can be disabled in BIOS
F11 hot key for boot up devices option
FORM FACTOR
Mini ITX 170x170mm
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
