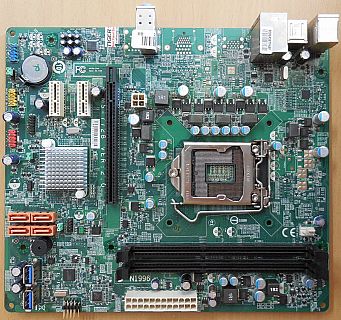

MSI MS-7728 Ver2.0 Mainboard +Blende Intel H61 Sockel 1155 Medion MT742G* m1064

MSI MS-7728 Ver 2.0 Mainboard + Blende Intel H61 Sockel 1155 Medion MT742G USB3.0 LAN Audio

Technische Daten

CPU

Intel ® Sandy Bridge processor in the LGA1155 package

Chipset

Intel ® H61 chipset

Memory Support

2 x DDR3 DIMMs support DDR3 1333/1066 DRAM (16GB Max; supports Dual-Channel mode)

LAN

Supports LAN 10/100/1000 by Realtekl ® RTL8111E

Audio

HD audio codec integrated by Realtek ® ALC887

Flexible 5.1-channel audio with jack sensing

SATA

4 x SATA 3Gb/s ports by Intel® H61 PCH

USB3.0

2 x USB 3.0 ports by ASMedia ASM1042

Internal Connectors

4 x SATA 3Gb/s ports

1 x 4-pin CPU FAN connector

1 x 24-pin ATX Power connector

1 x 4-pin 12V Power connector

1 x Front Panel connector

1 x Front Panel Audio connector

2 x USB3.0 ports

2 x USB2.0 header for 4 additional ports

1 x JSPI1 connector

1 x JLPC1 connector

1 x Buzzer

1 x CMOS Jumper

1 x J1 Jumper

1 x J2 Jumper

Back panel

1 x PS/2 keyboard port

1 x PS/2 mouse port

4 x USB 2.0 ports

1 x LAN port

3 x flexible audio ports

Slots

1 x PCIE x16 slot

2 x PCIE x1 slots

Form Factor

Micro-ATX (24.5 cm X 21.5 cm)

Mounting

6 mounting holes

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
