Pegatron IPMSB-GS Rev1.02 Mainboard +Blende Intel H67 Sockel 1155 VGA HDMI*m1122

Pegatron IPMSB-GS Rev 1.02 Mainboard + Blende Intel H67 Sockel 1155 VGA HDMI

Technische Daten

Prozessor

Socket 1155 for Sandy bridge CPU

Chipsatz

Intel® Couger Point H67

Arbeitsspeicher

4 x DDR3 240-pin DIMM sockets supporting up to 16 GB of system memory

Dual channel memory architecture

Support for DDR3 1333 MHz (PC3-10600) memory modules

Graphics

Integrated Intel® HD Graphics

Audio

Azalia Realtek ALC888S-VD2; 7.1 or 5.1 channels

LAN

Intel® Lewisville Gigabit LAN chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express slot x16

1 x PCI Express slot x4

2 x PCI Express slots x1

Storage Interface

2 x SATA 6Gb/s ports

4 x SATA 3Gb/s ports

USB

2 x USB 3.0 ports

12 x USB 2.0 ports (4 ports on the back panel, 8 ports available through the internal USB headers)

Interne I/O Anschlüsse

1 x 4-Pin CPU power connector

1 x 24-Pin ATX power connector

1 x 4-Pin CPU fan connector

1 x 3-Pin System fan connector

6 x SATA connectors

1 x Front panel audio connector

1 x Internal SPDIF output connector

1 x AUX in connector

1 x Internal serial port connector

4 x USB 2.0 connectors

1 x TPM connector

1 x ROM recovery connector

1 x Parallel port connector

1 x Front panel connector

1 x KBPWR Jumper

1 x Clear Password Jumper

1 x Clear CMOS jumper

1 x Flash Override Selector Jumper

1 x Buzzer

Rückseite I/O Panel

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x VGA port

1 x DVI-D port

1 x HDMI™ port

2 x USB 3.0 ports (blau)

4 x USB 2.0 ports

1 x LAN RJ-45 port

6 x Audio jacks

BIOS

SPI 32Mb (AMI)

Formfaktor

uATX; 9.6 inches x 9.6 inches

Lieferumfang

Das Mainboard inkl. Blende * Ohne weiteres Zubehör * gebraucht *

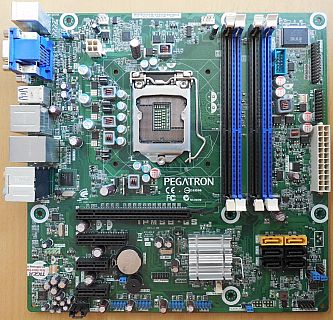

Abbildung ähnlich
