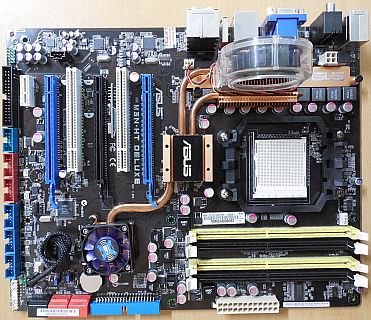

Asus M3N-HT Deluxe HDMI Rev1.02G Mainboard Sockel AM2+ nForce 780a SLI* m1131

Asus M3N-HT Deluxe HDMI Rev 1.02G Mainboard + Blende AMD Sockel AM2+ nVidia nForce 780a SLI

Technische Daten

Hersteller       Asus

Model       M3N-HT Deluxe HDMI Rev 1.02G

CPU

AMD® Socket AM2+ Phenom™ FX / Phenom™ / Athlon™ / Sempron™ Processors

AMD® Socket AM2 Athlon™ 64 X2 / Athlon™ 64 FX / Athlon™ 64 / Sempron™ Processors

AMD Cool 'n' Quiet™ Technology

Chipsatz

NVIDIA® nForce 780a SLI

System Bus

Up to 5200 MT/s; HyperTransport™ 3.0 interface for AM2+ CPU

2000/1600 MT/s for AM2 CPU

Memory

4 x 240-Pin DIMM sockets, Max. 8 GB, DDR2 1066*/800/667/533 ECC/non-ECC, Un-buffered Memory

Dual Channel memory architecture

*DDR2 1066 is supported by AM2+ CPUs only

**Refer to the Asus Website or the user manual for Memory QVL (Qualify Vendor List)

***When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

Slots

3 x PCI Express™ x16 slots (support NVIDIA® 3-way SLI™ Tech @ dual x16 mode or triple x8)

1 x PCI Express™ x1 slot

2 x PCI 2.2 slots

VGA

Integrated NVIDIA GeForce® 8 Series GPU

Hybrid SLI™ Support (supports Windows Vista only)

Supports HDMI™ Technology with max. resolution up to 1920 x 1200

Supports DVI with max. resolution up to 1920 × 1200 @ 60 Hz

Supports D-Sub with max. resolution up to 1920 × 1440 @ 75 Hz

HDMI/DVI/RGB Support

Supports Microsoft® DirectX® 10, OpenGL® 2.0, Pixel Shader 4.0

Supports PCIe 2.0/1.0 Architecture

Maximum shared memory of 512MB

Storage

by NVIDIA® Chipset

6 x SATA 3 Gb/s connectors (Use SATA 1-4 connectors for IDE mode)

NVIDIA® MediaShield RAID supports RAID 0, RAID1, RAID 0+1, RAID 5 and JBOD

1 x Ultra DMA 133/100/66/33

by Marvell® 6111 SATA Controller

1 x External SATA 3Gb/s port (SATA-On-The-Go)

High Definition Audio

ADI® AD1988B BH 8-Channel High Definition Audio CODEC

Coaxial S/PDIF out ports at back I/O

Support Jack Detection and Multi-streaming

ASUS AI Audio 2

LAN

NVIDIA Gigabit MAC

Atheros F1 Gigabit PHY featuring AI NET2

IEEE 1394

LSI® FW322 controller supports 2 x 1394a connectors (at mid-board)

USB

Supports up to 10 USB 2.0 ports (6 ports at mid-board, 4 ports at back panel)

ASUS AI Lifestyle Unique Features

ASUS Express Gate       Web browser, file downloading and uploading (through USB devices only); Further free features upgradable on ASUS websites; Onboard flash with Express Gate installed

ASUS Quiet Thermal Solution       ASUS AI Gear 2; 8+2 Phase Power Design; AI Nap; Fanless Design: Heat-pipe solution & Stack Cool 2; Q-Fan 2; Optional Fan for Water-cooling or Passive-cooling only

ASUS Crystal Sound       ASUS Noise Filter; AI AUDIO 2

ASUS EZ DIY       ASUS Q-Connector; Q-Shield; ASUS EZ Flash 2; O.C. Profile

ASUS exclusive Overclocking Features

Intelligent overclocking tools       AI Overclocking (intelligent CPU frequency tuner); ASUS AI Booster 2 Utility

Precision Tweaker       vDIMM: 35-step DRAM voltage control; vCore: Adjustable CPU voltage at 0.0125V increment; vChipset 16-step Chipset voltage control

SFS (Stepless Frequency Selection)       FSB tuning from 200MHz to 600MHz at 1MHz increment; Memory tuning from 533MHz up to 1066MHz; PCI Express frequency tuning from 100MHz up to 200MHz at 1MHz increment

Overclocking Protection       ASUS C.P.R.(CPU Parameter Recall)

Other Features

ASUS MyLogo2™

Uses 100% All High-quality Conductive Polymer Capacitors!

Multi-language BIOS

Interne Steckplätze

1 x AAFP Front Panel Audio connector

1 x CD audio in connector

1 x Chassis intrusion connector

1 x 4-pin CPU FAN connector

2 x 3-pin Chassis FAN connector

1 x 3-pin Power FAN connector

6 x SATA connectors

1 x IDE connector

1 x Floppy disk drive connector

3 x USB2.0 connectors for 6 additional USB2.0 ports

2 x IEEE1394a connector

1 x Serial port (COM1) connector

1 x S/PDIF Out connector

1 x Clear CMOS Jumper

1 x System panel connector

1 x 24-pin EATX power connector

1 x 8-pin EATX 12V power connector

Externe Anschlüsse

1 x PS/2 keyboard port

1 x Coaxial S/PDIF Out port

1 x Optical S/PDIF Out port

1 x HDMI port

1 x VGA D-Sub port

1 x External SATA port

1 x LAN (RJ-45) port

4 x USB 2.0 ports

8-channel Audio I/O

BIOS

8 Mb Flash ROM; DMI 2.0; PnP; WfM 2.0; SM BIOS 2.5; Award BIOS; ACPI 2.0; ASUS EZ Flash 2

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Formfaktor

ATX Form Factor; 12 inch x 9.6 inch (ca. 30.5cm x 24.4cm)

Besonderheiten

Die Southbridge wird durch einen Noiseblocker ultra quiet Lüfter und die Spannungsregulatoren werden zusätzlich durch den Optional-Lüfter gekühlt.

Lieferumfang

Das Mainboard inkl. Blende, Optional-FAN und Handbuch * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
