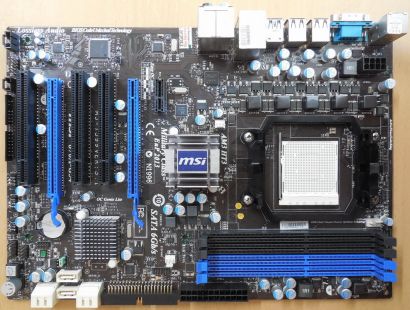

MSI 870A-G54 MS-7599 Ver 3.1 Mainboard +Blende AMD Sockel AM3 DDR3 USB3.0* m1135

MSI 870A-G54 MS-7599 Ver 3.1 Mainboard +Blende AMD Sockel AM3 DDR3 USB3.0 PCIe SATA

Technische Daten

CPU

64-bit AMD® Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU

Please refer to CPU Support for compatible CPU; the above description is for reference only

Hyper Transport Bus

HyperTransport 3.0 supporting speed up to 5200MT/s

Chipset

AMD® 870 and SB850 Chipset

Main Memory

Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600* (OC) SDRAM, 16GB Max

Slots

1 x PCI Express 2.0 slot with x16 operation (PCI Express Bus SPEC V2.0 compliant)

1 x PCI Express 2.0 slot with x4 operation (PCI Express Bus SPEC V2.0 compliant)

1 x PCI Express x1 slot

3 x PCI slots, support 3.3V/ 5V PCI bus Interface

On-Board IDE

One IDE port by JMicron® JMB368

- Supports Ultra DMA 66/100/133 mode

- Supports PIO, Bus Master operation mode

- Can connect up to two IDE devices

On-Board SATA

6 x SATA III (1~6) ports by AMD® SB850

- Supports storage and data transfers at up to 6Gb/s

RAID Function

SATA III 1~6 support RAID 0, 1, 5 or 10 mode by AMD® SB850

Audio

Chipset integrated by Realtek® ALC889

- True Blu-ray Audio Support

- Flexible 8-channel audio with jack sensing

- Compliant with Azalia 1.0 Spec

LAN

Realtek® PCI-E GbLAN controller 8111DL

- Integrated Fast Ethernet MAC and PHY in single chip

- Supports 10Mb/s, 100Mb/s and 1000Mb/s

- Compliance with PCI-Express Bus specification v1.0a

Internal I/O Connectors

1 x ATX 24-pin power connector

1 x ATX 8-pin 12V CPU power connector

1 x 4-Pin CPU FAN connector

2 x 3-Pin System FAN connectors

1 x Front panel audio connector

1 x JFP1 Front panel connector

1 x JFP2 Front panel 2 connector

1 x Chassis intrusion switch connector

3 x USB 2.0 connectors

6 x Serial ATA III connectors

1 x ATA133 HD connector

1 x Floppy Disk Drive connector

1 x OC Dial Button

1 x OC Dial Knob

1 x Clear CMOS jumper

1 x SPDIF-out connector

1 x CD-In connector

1 x TPM module connector

1 x JSPI1 connector

Back Panel I/O Ports

1 x PS/2 keyboard/mouse combo port

1 x Optical SPDIF-Out port

1 x Serial port

6 x USB 2.0 ports

2 x USB 3.0 ports (blue)

1 x RJ45 LAN jack

6 in 1 audio jack

Dimension

30.5cm (L) x 21.5cm (W); ATX Form Factor

Mounting

6 mounting holes

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
