Acer Aspire X3812 Mainboard DIG43L Eup DDRII 48.3BD01.011 Sockel 775 VGA* m1139

Acer Aspire X3812 Mainboard DIG43L Eup DDRII 48.3BD01.011 Sockel 775 VGA

Technische Daten

CPU / Processor

Intel® Core™2 Quad Q6600 / Q8200 / Q8300 / Q9300 / Q9400 / Q9550 / Q9650
Intel® Core™2 Duo E7400 / E7500 / E8500 / E8600
Intel® Pentium® Dual-Core E2220 / E5200 / E5300 / E5400
Intel® Celeron® E1400 / E1500 processors in the LGA775 package

FSB

1333/1066/800 MHz

Chipset

Intel® G43/G45 Express Northbridge + Intel® ICH10 Southbridge

Memory

4 x 240-Pin DIMM Steckplätze für non-ECC unbuffered DDR2 800 MHz (PC2-6400) DIMMs; Max. 8GB; Dual Channel unterstützt

VGA

Intel® G43 Express integrated Graphics

Steckplätze

1x PCI Express® x16 Slot, 1x PCI Express® x1 Slot

Onboard Audio

Realtek® ALC888S 8-channel High Defintion Audio Codec

Onboard LAN

Intel® WG82576V Gigabit Ethernet LAN 10/100/1000 Mbits

Storage

2 x SATA II 3Gb/s connectors for up to 2 SATA devices

1 x eSATA

USB

10 x USB2.0/1.1 (Rear 4 ports, Intern 3 headers for additional 6 ports)

Back panel I/O

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x VGA Sub-D

1 x HDMI

1 x eSATA port

4 x USB2.0 ports

1 x Gigabit LAN port

1 x Optical S/PDIF port

8-channel Audio ports (Microphone / Line-Out / Line-In 7 / Center speaker/subwoofer / Surround L/R)

Internal connectors

2 x Serial ATA connectors

1 x 4-Pin CPU FAN connector

1 x 4-Pin System FAN connector

1 x Front Audio connector

1 x Front Panel connector

3 x USB connectors supporting 2.0 ports for up to 6 additional ports

1 x Buzzer

1 x IEEE1394 connector

1 x CMOS Jumper

1 x ATX 24-pin Power connector

1 x 4-Pin 12V CPU Power connector

Bios

SPI Flash ROM 16 MB

Form factor

Micro ATX size; ca. 244mm x 200mm

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

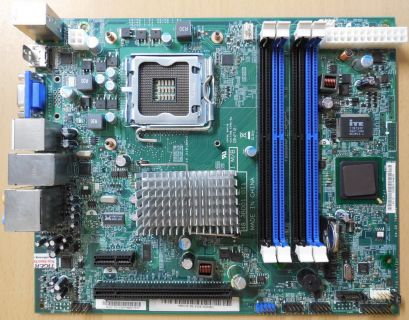

Abbildung ähnlich
