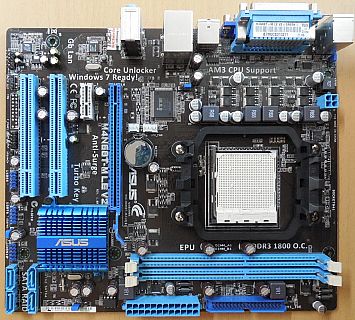

Asus M4N68T-M LE V2 Rev 1.00 Mainboard AMD Sockel AM3 DDR3 VGA PCIe IDE* m1145

Asus M4N68T-M LE V2 Rev 1.00 Mainboard AMD Sockel AM3 DDR3 PCIe SATA IDE

Technische Daten

CPU

AMD AM3 Phenom™ II / Athlon™ II / Sempron™ 100 Series Processors

AMD Cool 'n' Quiet™ Technology

AMD 64 Architektur ermöglicht simultane 32-Bit- und 64-Bit-Verarbeitung

Chipset

NVIDIA GeForce 7025 / nForce 630a

Memory

2 x DIMM, Max. 8GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066 MHz ECC, Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Eine Liste freigegebener Speichermodule finden Sie auf der Asus Webseite oder im Benutzerhandbuch

System Bus

Up to 2.0 GT/s

Grafik

Integrierter Grafikprozessor unterstützt RGB mit einer max. Auflösung von 1920 x 1440 @ 75 Hz

Multi-VGA-Ausgaben-Unterstützung: RGB port

Maximaler geteilter Speicher von 256 MB

Expansion Slots

1 x PCIe x16

1 x PCIe x1

2 x PCI

Storage

1 x UltraDMA 133/100/66 for up to 2 PATA devices (navy blue)

4 x SATA 3Gb/s ports (blue)

Support Raid 0, 1, 5, 10, JBOD

LAN

Realtek® 8211CL-VB 10/100/1000 Gigabit LAN Controller

Audio

VIA VT1708S 8-Channel High Definition Audio CODEC (Choose the chassis with HD audio module in front panel to support 8-Channel audio output)

Supports Multi-streaming, Anti-pop Function

USB Ports

10 x USB 2.0 ports (4 at back panel, black, 6 at mid-board)

Übertaktung

Overclocking Protection       ASUS C.P.R. (CPU Parameter Recall)

Special Features

Turbo Key

ASUS Quiet Thermal Solution       ASUS Q-Fan

ASUS EZ DIY       ASUS CrashFree BIOS 3; ASUS EZ Flash 2; ASUS MyLogo 2

ASUS Power Design       ASUS EPU-4 Engine

Core Unlocker

ASUS Exclusive Features       Anti-Surge; ASUS AI Net 2

Back I/O Ports

1 x PS/2 keyboard (purple)

1 x PS/2 mouse (green)

1 x LAN (RJ45) port

4 x USB 2.0 ports

1 x VGA SUB-D port

1 x COM port

1 x Parallel port

3 x Audio jacks

Internal I/O Ports

3 x USB 2.0 connectors supports additional 6 USB 2.0 ports

1 x IDE connector

4 x SATA 3Gb/s connectors

1 x 4-Pin CPU Fan connector

1 x 3-Pin Chassis Fan connector

1 x S/PDIF out header

1 x 24-pin EATX Power connector

1 x 4-pin ATX 12V Power connector

1 x Front panel audio connector (AAFP)

1 x Internal speaker connector

1 x System panel

1 x KBPWR Jumper

1 x USBPW1-4 Jumper

1 x USBPW5-10 Jumper

1 x CLRTC Jumper

BIOS

8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a

Form Factor

uATX Form Factor; 9.6 inch x 8.2 inch (24.4 cm x 20.8 cm)

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
