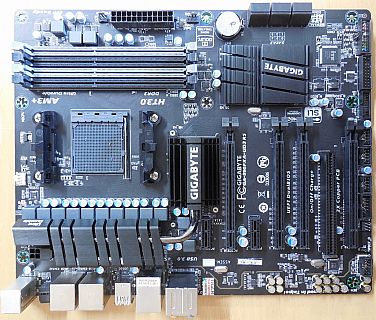

Gigabyte GA-990FXA-UD3 R5 Rev 1.0 Mainboard Sockel AM3+ PCIe DDR3 USB3.0* m1165

Gigabyte GA-990FXA-UD3 R5 Rev 1.0 Mainboard AMD 990FX Sockel AM3+ DDR3 PCIe USB3.0

Technische Daten

Prozessor

Support for AMD® Phenom™ II / AMD® Athlon™ II AM3 / AMD® AM3+ FX processors

(Please refer to the Gigabyte "CPU Support List" for more information.)

Hyper Transport Bus

HyperTransport™ 3.0

5200 MT/s

Chipsatz

AMD® 990FX Northbridge + AMD® SB950 Southbridge

Arbeitsspeicher

4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory

Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules (requires AM3+ CPU)

Dual channel memory architecture

Support for Extreme Memory Profile (XMP) memory modules

Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

(Please refer to the Gigabyte "Memory Support List" for more information.)

Multi-Graphics Technology

Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ Technologies (PCIEX16_1 and PCIEX16_2)

Support for AMD® Quad-GPU CrossFireX™ and 2-Way AMD® CrossFire™ Technologies (PCIEX16_1 and PCIEX16_2)

Audio

Realtek® ALC1150 High Definition Audio codec

2/4/5.1/7.1-channel

Support for Dolby® Home Theater®; S/PDIF Out

LAN

Realtek® Gigabit Ethernet LAN chip (10/100/1000 Mbit)

Erweiterungssteckplätze

2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)

*For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

2 x PCI Express x1 slots (conform to the PCI Express 2.0 standard.)

1 x PCI slot

Storage Interface

by Southbridge

6 x SATA 6Gb/s connectors (SATA3 0~5)

Support for SATA RAID 0, RAID 1, RAID 5, RAID 10 and JBOD

by Marvell® 88SE9172 chip

2 x eSATA 6Gb/s connectors on the back panel (Actual transfer rate is dependent on the device being connected.)

Support for RAID 0 and RAID 1

USB

by Chipset

14 x USB 2.0/1.1 ports (8 ports on the back panel, 6 ports available through the internal USB headers)

by VIA® VL805 chip

4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x Trusted Platform Module (TPM) header

6 x SATA 6Gb/s connectors

1 x 4-pin CPU fan header

1 x 4-pin system fan header

1 x 3-pin system fan header

1 x 3-pin power fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

3 x USB 2.0/1.1 headers

1 x USB 3.0/2.0 header

1 x COM A serial port header

1 x Clear CMOS jumper

Rückseite I/O Panel

1 x PS/2 keyboard/mouse port

1 x Optical S/PDIF Out connector

2 x eSATA 6Gb/s connectors

2 x USB 3.0/2.0 ports

8 x USB 2.0/1.1 ports

1 x RJ-45 port

6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)

I/O

ITE® I/O Controller chip

H/W Überwachung

System voltage detection; CPU/System temperature detection; CPU/System/Power fan speed detection; CPU overheating warning; CPU/System/Power fan fail warning; CPU/System fan speed control (Whether the fan speed control function is supported will depend on the cooler you install.)

BIOS

2 x 32 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, SM BIOS 2.7, ACPI 5.0, WfM 2.0

Einzigartige Funktionen

Support for @BIOS; Q-Flash; Xpress Install; Smart Recovery 2; EasyTune (may differ by motherboard model); ON/OFF Charge

Betriebssystem

Support for Microsoft Windows 8.1 / 8 / 7

Form Factor

ATX Form Factor; 30.5cm x 24.4cm

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
