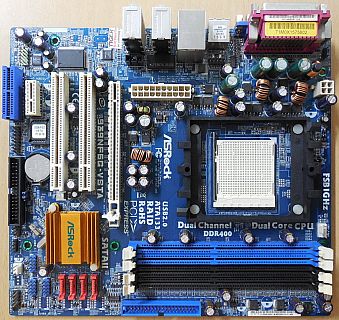

ASRock 939NF6G-VSTA Mainboard +Blende AMD Sockel 939 PCIe DDR SATA VGA Aud*m1174

ASRock 939NF6G-VSTA Rev 1.01 Retro Mainboard +Blende AMD Sockel 939 PCIe DDR SATA VGA Audio USB2.0 IDE ATA133

Technische Daten

Hersteller       ASRock

P/N       939NF6G-VSTA Rev 1.01

CPU

Socket 939 for AMD Athlon™ 64FX / 64X2 / 64 processors

Supports AMD's Cool 'n' Quiet Technology, Untied Overclocking Technology, Hyper-Transport Technology

FSB 1000MHz (2.0 GT/s)

Chipset

NVIDIA® GeForce 6100 / GeForce 6150SE + nForce 430 (MCP61)

Memory

Dual Channel DDR memory technology

4 x DDR DIMM slots

Supports DDR400/333/266 non-ECC, un-buffered memory

Max. capacity of system memory: 4GB (Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.)

Graphics

Integrated NVIDIA® GeForce6-class graphics

DirectX 9.0 VGA, Pixel Shader 3.0

Max. shared memory 256MB

Audio

7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)

LAN

Realtek PHY RTL8201CL 10/100 Ethernet LAN Controller

Supports Wake-On-LAN, PXE

Slots

2 x PCI slots

1 x PCI Express x16 slot

1 x PCI Express x1 slot

1 x HDMR slot

Internal Connectors

4 x SATA2 3.0 Gb/s connectors, supporting RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, and Hot Plug functions

1 x ATA133 IDE connector (supports 2 x IDE devices)

1 x Floppy connector

1 x IR header

1 x Game header

1 x COM1 port header

1 x 4-pin CPU FAN connector

1 x 3-pin Chassis FAN connector

1 x 20 pin ATX power connector

1 x 4-pin 12V power connector

1 x CD in header

1 x Front panel audio connector

1 x Front Panel connector

1 x Speaker connector

3 x USB 2.0 headers (support 6 USB 2.0 ports)

1 x PS2_USB_PW1 Jumper

1 x CLRCMOS Jumper

Rear Panel I/O

1 x PS/2 Mouse Port

1 x PS/2 Keyboard Port

1 x VGA Port

1 x Parallel Port (ECP/EPP support)

4 x Ready-to-Use USB 2.0 Ports

1 x RJ-45 Port

1 x 8-ch HD Audio Jack (Side Speaker / Rear Speaker / Central / Bass / Line-in / Front Speaker / Microphone)

Unique Feature

Hybrid Booster       CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.)

Hardware Monitor

CPU Temperature Sensing, Chassis Temperature Sensing, CPU Fan Tachometer, Chassis Fan Tachometer, CPU Quiet Fan, Voltage Monitoring: +12V, +5V, +3.3V, Vcore

BIOS

4Mb AMI Legal BIOS

Supports "Plug and Play", Jumperfree

ACPI 1.1 Compliance Wake Up Events

SMBIOS 2.3.1 Support

Form Factor

Micro ATX Form Factor; ca. 24.4 cm x 21.8 cm (9.6-in x 8.6-in)

OS

Microsoft Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant

Certifications

FCC, CE

Lieferumfang

Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
