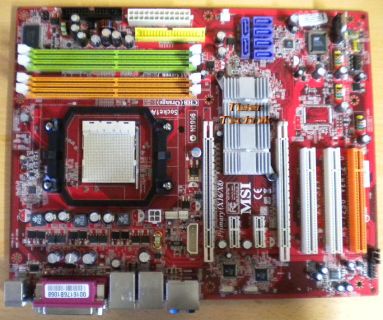

MSI K9N SLI MS-7250 Ver2.0 Mainboard +Blende Sockel AM2 DDR2 PCIe Dual LAN* m185

MSI K9N SLI MS-7250 Ver2.0 Mainboard + Blende

Sockel AM2 DDR2 PCIe Dual LAN

Technische Daten

CPU

- AMD® Athlon 64 X2, Athlon 64, Athlon FX and Sempron in the socket AM2 package.

(For the latest information about CPU, please visit the MSI Website)

FSB

HyperTransport supporting speed up to 1GHz (2000MT/s)

Chipset

nVIDIA® nForce 570 SLI for K9N SLI Series

RAM

DDRII 533/667/800 SDRAM (8GB Max)

4 DDRII DIMMs (240pin / 1.8V)

LAN

Supports Dual LAN 10/100/1000 Fast Ethernet by Vitesse VSC8601

Audio

Chip integrated by Realtek® ALC888

Flexible 8-channel audio with jack sensing

Compliant with Azalia 1.0 Spec

IDE

1 x IDE port by nForce 570 SLI/ nForce 570

Supports Ultra DMA 66/100/133 mode

Supports PIO, Bus Master operation mode

SATA

6 x SATA II ports by nForce 570 SLI/ nForce 570

Supports storage and data transfers at up to 300 MB/s

RAID

SATA1~6 supports RAID 0/ 1/ 0+1 or RAID 5 mode by nForce 570 SLI/ nForce 570

Floppy

1x Floppy port

Supports 1 FDD with 360K,  720K, 1.2M, 1.44M and 2.88Mbytes

Back panel

- 1 x PS/2 mouse port

- 1 x PS/2 keyboard port .

- 1 x Serial port

- 1 x Parallel port supporting SPP/EPP/ECP mode

- 1 x Coaxial SPDIF-out port

- 4 x USB 2.0 Ports

- 2 x LAN jacks (10/100/1000) by Vitesse VSC8601

- 5 x flexible audio jacks.

- 1 x Optical SPDIF-out  jack.

On-Board Pinheaders:

- 1 x D-Bracket 2 pinheader

- 1 x IrDA pinheader

- 3 x USB 2.0 pinheaders

Slots:

For K9N SLI Series

- 2 x PCI-Express x16 slots support SLI technology

SLI mode

- Both PCIE X16 slots are compatible with PCI Express x8 non-SLI mode

- Primary PCIE X16 slot is compatible with PCI Express X16, Secondary PCIE X16 slot is compatible with PCI  Express X8

- 2 x PCI Express x1 slots

- 3 x PCI slots, support 3.3V/ 5V PCI bus Interface, includes one orange slot which supports 2 master for MSI special PCI function card (ex. wireless LAN and bluetooth combo card.).

Form Factor:

- ATX (24.5 cm X 30.5 cm)

Mounting:

- 9 mounting holes

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
