ECS Elitegroup K7VZA Rev. 1.0 Mainboard

Sockel 462 AGP CNR PCI + Blende



Technische Daten:



CPU Support:

AMD Athlon (Thunderbird)

AMD Athlon XP (Palomino, Thoroughbred A, Thoroughbred B)

AMD Athlon MP (Palomino)

AMD Duron (Spitfire, Morgan)



Chipset:

VIA KT133A (VT8363A) / VT82C686B

NB/SB interconnection via PCI with 133 MB/s

Supports FSB 200/266 (100/133 MHz DDR)

Supports Advanced Configuration and Power Interface (ACPI)

Supports Universal Serial Bus (USB 1.1)

Supports up to AGP 4x (AGP 1.0/2.0, 3.3V/1.5V)

Supports PCI v2.2

Supports IDE/PATA with up to UDMA100

Supports hardware monitoring and Super I/O



Memory:

3 168-Pin DIMM sockets supporting SDRAM

Supports up to 3 DIMMs PC100/133

Supports up to 512 MiB DIMMs

Supports max. 1.5 GiB RAM



Audio:

VT82C686B integrated VIA AC'97 audio controller

VIA VT1611A AC'97 audio codec

AC'97 2.1 compliant



Internal I/O:

1 AGP

5 PCI

1 AMR

2 PATA/IDE

1 Floppy port

1 USB 1.1 header

1 Dual color LED header

1 WOL header

1 WOM header

1 IrDA TX/RX header

2 CD-IN

Back Panel I/O

PS/2 keyboard

PS/2 mouse

2 USB 1.1 ports

2 RS-232 ports (COM)

1 parallel port (LPT)

1 game port

Audio connectors (line-out, line-in, mic-in)



BIOS:

2MBit Flash EEPROM (DIP32)

Award Modular BIOS v6.00PG

Supports Plug-and-Play (PNP)

Supports Advanced Power Management (APM)

Supports Advanced Configuration and Power Interface (ACPI)

Supports Desktop Management Interface (DMI)

Miscellaneous:

ATX form factor

20 pin ATX power connector

VIA VT82C686B southbridge integrated hardware monitoring and Super I/O

Cypress W230-03H clock generator (PLL)

Fairchild KA7500B SMPS controller

On-board PC speaker

2 3-pin FAN headers

9 mounting holes







Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

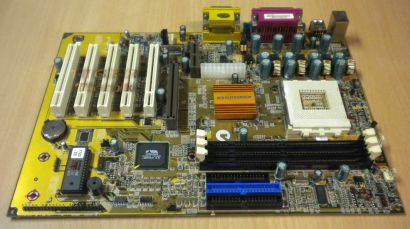

Abbildung ähnlich
