ASRock K7VT4A+ Rev 1.01 Mainboard + Blende Sockel A 462 FSB333 DDR AGP 8x* m262

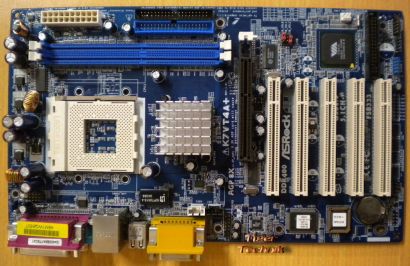

ASRock K7VT4A+ Rev 1.01 Mainboard + Blende

Sockel A 462 FSB333 DDR AGP 8x



Technische Daten

CPU

- Socket A (462) for AMD Sempron, Athlon XP/Athlon/Duron processor

- FSB 333/266 MHz

Chipset

- Northbridge: VIA® KT400A

- Southbridge: VIA® 8235

Memory

- Supports DDR400/333/266 non-ECC, un-buffered memory

- DIMM slots: 2

- Max. capacity of system memory: 2GB

BIOS

- 2Mb AMI BIOS with ACPI, SM BIOS 3.0, PnP

Audio

- CMedia CMI9761 6 channel AC'97 audio codec

LAN

- VIA® 6103 10/100 Ethernet LAN PHY

- 802.3u, WOL supported

- Supports PXE

Slots

- 1 x AGP8X/4X slot , 1.5V

- 5 x PCI slots( PCI 2.2 compliance)

Connector

- 2 x ATA 133/100/66 IDE connectors ( supports 4 x IDE devices)

- 1 x Floppy connector

- CPU/Chassis FAN connectors

- 20 pin ATX power connector

- IDE LED connector

- CD/AUX audio in header

- Front panel audio connector

- 1 x USB 2.0 port pin header

Rear Panel I/O

ASRock I/O

- 4 x USB2.0 ports

- 1 x RJ45 LAN port

- 1 x Serial port (COM1)

- 1 x PS2 Keyboard connector

- 1 x PS2 Mouse connectors

- 1 x Parallel port (LPT1)

- 1 x Audio ports ( Line In/Out, Mic In)

- 1 x Game/MIDI port

Unique Feature

Hybrid Booster:

- CPU Frequency Stepless control

- CPU Multiplier

- CPU Vcore Adjustment

- ASRock U-COP

- Boot Failure Guard (B.F.G)

Form Factor

- ATX, 305mm x 178mm

OS

- Microsoft® Windows® 98SE/ME/2000/XP compliant

Certifications

- FCC, CE

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
