Art.Nr: m07

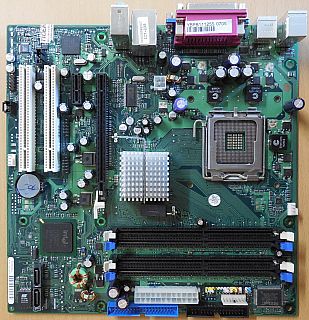

FSC Fujitsu Siemens D1931-A21 GS 3
Mainboard mit Blende Sockel 775
Original Fujitsu-Siemens-Computers Ersatzteil !!!
Chipset: Intel 915G
Board size: μATX
VGA: ja
Audio / 6-channel / S/PDIF: ja / nein / nein
Buzzer / int. Speaker Support: nein / ja
LAN 1 Gbit / 100 Mbit / 10 Mbit: ja / ja / ja
LAN ASF / Alert-on-LAN / WoL / Boot: nein / nein / ja / ja
SATA / ATA / RAID: ja / ja / nein
FireWire / HI-SPEED USB 2.0: nein / ja
Fan monitoring PSU** / CPU (FAN1) / AUX1 (FAN2) / AUX2 (FAN3): nein / nein / nein / nein
Fan control PSU** / CPU (FAN1) / AUX1 (FAN2) / AUX2 (FAN3): nein / ja / nein / nein
Temperature monitoring CPU/ONB1/ONB2/OFFB: ja / nein / nein / nein
SmartCard Reader Support (USB / serial): ja / nein
Fujitsu Siemens Computers Keyboard Power Button Support: ja
Silent Fan / Silent Fan LT: nein / ja
System Guard / Silent Drives: nein / ja
Recovery BIOS / Desk Update / Multi Boot / Safe Standby: ja / ja / ja / ja
HDD Password / USB Security: nein / ja
Logo Boot / Intel On Screen Branding: nein / ja
DIMM Sockets (DDR1 400 / DDR2 533): 4x DDR1 400
PCI Express x16 slot for graphics cards: 1
PCI Express x1 slot: 1
PCI slot (32 bit, 33 MHz, 5 V and 3.3 V): 2
Serial ATA interface (150 Mbyte/s) / ATA interface (100 Mbyte/s) / Floppy interface: 2x SATA / 1x ATA / 1x Floppy
S/PDIF (digital Audio)* OUT / IN: nein / nein
Audio Input: ja
Front panel Audio (9-pin for headphone, microphone)
AC'97 / High Definition Audio (Azalia): ja / HD nein
FireWire * (9-Pin, Intel standard header): nein
USB Ports* (2.0, ~480 MB/s): 4
Serial Ports* (FIFO, 16550 compatible): nein
Fan Connectors PSU** / CPU (FAN1) / AUX1 (FAN2) / AUX2 (FAN3): nein / 1 / 1 / nein
SMBus Connector* (Case Temperature): nein
Cover monitoring* (Casing open): nein
BTX (24-pin) / ATX12V (20-pin) power supply: ja / ja
VGA: 1
Audio Mic. In / Line in / Line out (or configurable with driver): 1 / 1 / 1
Audio Surround / Rear Surround / Center LFE: nein / nein / nein
S/PDIF (digital audio, cinch)* OUT / IN: nein / nein
S/PDIF (digital audio, optical) OUT: nein
LAN (RJ-45): 1
PS/2 mouse/keyboard: 1 / 1
FireWire * (6-Pin, IEEE 1394 port): nein
USB Ports (2,0, ~480 MB/s): 4
Serial Ports (RS232, FIFO, 16550 compatible): 1
Parallel Port (EPP/ECP): 1
* for use with internal devices or optional Front or Rear panel
** not supported by standard power supplies
Hier gehts zum Handbuch ---> http://www.datasheets.pl/motherboards/MOTHERBOARD_D1931.pdf
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
25,95 €
inkl. Mwst. Differenzbesteuert nach §25a UStG
gegebenenfalls plus Versandkosten
