HP 335186-001 Rev A01 Mainboard +Blende D220 MT NR138 Sockel 478 LAN VGA* m441

HP 335186-001 Rev. A01 Mainboard + Blende für HP/Compaq D220 MT Lite-On NR138 Sockel 478 LAN VGA

HP Standard ist ohne Retentionmodul. Entweder in Verwendung mit einem originalen HP D220 Systemlüfter oder durch den Einsatz eines Retentionmoduls nutzbar.

Technische Daten

HP P/N       335186-001

Weitere Bezeichnungen       NR138 Rev. A01

CPU

Intel Celeron with 400MHz FSB and 128KB L2 Advanced Transfer Cache (2.0/2.1/2.2GHz)

Intel Pentium 4 with 533MHz and 512KB L2 Advanced Transfer Cache (2.4/2.66/2.8GHz)

Chipset

Intel 845GE chipset

Memory

2 x DDR SDRAM PC-2100(266MHz) / PC-2700(333MHz); maximal 2GB non-ECC Memory

Grafik

integrated Intel Extreme Graphics

Expansion Slots

3 x PCI slots (32-bit; 33MHz; full height)

Storage

2 x Ultra ATA/100 IDE ports support up to 4 IDE devices

1 x Floppy Disk Drive port

Audio

Analog Devices ADI1981B AC´97 Audio Codec

LAN

Broadcom® BCM 4401 10/100Mbps Fast Ethernet Controller

Back Panel I/O ports

1 x PS/2 Keyboard port

1 x PS/2 Mouse or Pointing Device port

4 x USB2.0 ports

1 x RJ-45 LAN port

1 x VGA Sub-D port

1 x Parallel port

1 x Serial port

1 x Audio ports (Line-In, Line-Out, Microphone)

Internal I/O

1 x 20-Pin ATX Mainboard connector

1 x 4-Pin 12V CPU connector

1 x 3-Pin CPU FAN connector

1 x 3-Pin Chassis FAN connector

1 x 3-Pin System FAN connector

2 x IDE connector

1 x FDD connector

1 x CMOS Switch

1 x J10 Mono Out connector

1 x JP1 Jumper

1 x JP2 Jumper

1 x Front Panel connector

1 x CD_In connector

1 x AUX connector

1 x USB2.0 header for 2 optional USB2.0 ports

1 x Wake-On-LAN connector

1 x Buzzer

Formfactor

Micro-ATX; ca. 244 mm x 244 mm

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

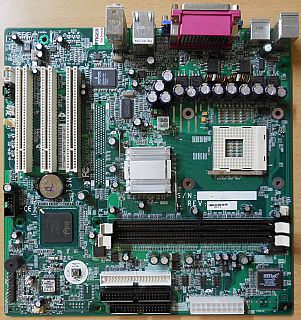

Abbildung ähnlich
