Elitegroup ECS K7S5A V3.1 Mainboard +Blende Sockel 462 A DDR oder SDRAM* m13

Elitegroup ECS K7S5A V3.1 Mainboard + Blende

Sockel 462 A DDR oder SDRAM

Technische Daten

CPU

Socket 462 for AMD Athlon™ XP/ Athlon™/ Duron™ processor

FSB 266/200 MHz

CHIPSET

SiS® 735 single chip

North Bridge & South Bridge:SiS® 735

MEMORY

Wahlweise nur DDR-RAM oder SD-RAM seperat nutzbar!

2 x 184-pin DDR DIMM socket , support DDR266/200 DDR SDRAM

2 x 168-pin SDRAM DIMM socket support PC133/100 3.3V SDRAM

Maximum     1GB

Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS.For Windows® 64-bit OS with 64-bit CPU, there is no such limitation

EXPANSION SLOT

1 x AGP 4X slot

5 x PCI slots

1 x AMR slot

STORAGE

Support by SiS® 735

4 x  Ultra DMA100/66 devices

AUDIO

C-Media CMI9738 4-channel audio CODEC

Compliant with AC'97 2.2 specification

REAR PANEL I/O

1 x PS/2 keyboard & PS/2 mouse connectors

2 x USB 1.1 ports

1 x Parallel port (LPT)

1 x Serial port (COM1)

1 x Game port

1 x Audio port (Line-in, Line-out, Mic-in)

INTERNAL I/O CONNECTORS & HEADERS

1 x 20-pin ATX Power Supply Connector

1 x FDD connector supports one 360K~2.88MB FDD

2 x IDE connectors

1 x IrDA for SIR header

1 x Speaker header

1 x USB 1.1 header support additional 2 USB ports

1 x Front panel switch/LED header

1 x Front panel audio header

CD in1/CD in2 header

CPUFAN/SYSFAN connectors

WOL connector

SYSTEM BIOS

AMI BIOS with 2Mb Flash ROM

Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

Supports ACPI revision 1.0 specification

FORM FACTOR

ATX Size, 305mm*244mm

 Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

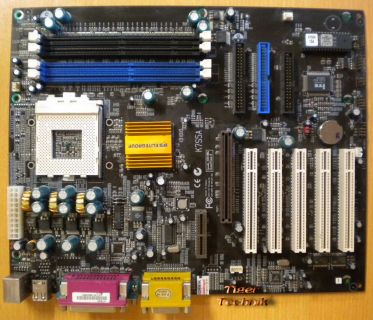

Abbildung ähnlich
