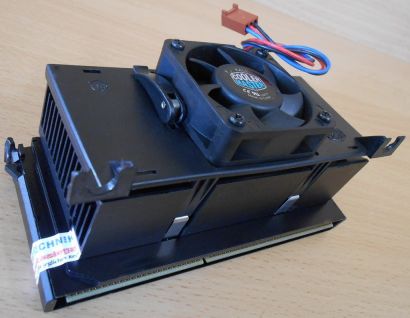

CPU Prozessor AMD Athlon 800 MHz AMD-K7800MPR52B A FSB200 512KB Slot A* c933

Technische Daten

Type

CPU / Microprocessor

Market segment

Desktop

Family

AMD Athlon

CPU part number

AMD-K7800MPR52B A is an OEM/tray microprocessor

Frequency

800 MHz

Bus speed

200 MHz

Clock multiplier

8

Package

Card Module

Socket

Slot A

Architecture / Microarchitecture

Microarchitecture

K7

Processor core

Pluto (Model 2)

Manufacturing process

0.18 micron

Die

102mm2

Data width

32 bit

The number of CPU cores

1

The number of threads

1

Floating Point Unit

Integrated

Level 1 cache size

64 KB 2-way set associative code cache; 64 KB 2-way set associative data cache

Level 2 cache size

512 KB backside cache running at 320 MHz

Multiprocessing

Uniprocessor

Features

MMX instructions; Extensions to MMX; 3DNow! technology; Extensions to 3DNow!

Low power features

Halt state; Stop Grant states; Sleep state; Probe state

Electrical / Thermal parameters

V core

1.7V ± 0.1V

Minimum/Maximum operating temperature

0°C - 70°C

Minimum/Typical/Maximum power dissipation

7 Watt (Stop Grant mode) / 43 Watt / 48 Watt

Notes on AMD Athlon 800 MHz

Actual bus frequency is 100 MHz. Because the processor uses Double Data Rate bus the effective bus speed is 200 MHz.
