Medion MD5000 Ver1.2 MSI MS-6701 Mainboard +Blende FSB533 AGP8x 5.1 Audio* m434

Art.Nr: m434

Medion MD5000 Ver 1.2 MSI MS-6701 Mainboard + Blende FSB533 AGP8x 5.1 Audio

Technische Daten


Supports Socket 478 for P4/Celeron processors (Willimate and Northwood core) with 400/533 MHz

Core Frequency from 1.3 GHz to 2.8 GHz and up


SiS® 648 chipset

- Supports Intel Pentium 4 processors with data transfer rate up to 533 MHz

- Supports 64-bit high performance DDR333+/DDR333/DDR266 memorycontroller

- Supports AGP 8X/4X interface

- Supports bi-directional 16-bit data bus with 1 GHz bandwidth MuTIOL

SiS® 963 chipset

- Supports Dual-IDE ATA 66/100/133

- Integrated audio controller with AC97 interface

- Low pin count interface for SIO

- Advanced power management and PC2001 compliance

Main Memory

Supports two 184-pin DDR DIMMs

Supports up to 2GB PC2700/2100/1600 DDR SDRAMs

Supports 2.5v DDR SDRAM


One AGP (Accelerated Graphics Port) 4x/8x slot

Three 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)

On-Board IDE

Dual-IDE controller integrated in SiS 963 chipset

Supports PIO, Bus Master and Ultra DMA133/100/66/33 operation modes. Can connect up to four IDE devices.

On-Board Peripherals

1 x floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

1 x serial port

1 x parallel port

1 x Audio 3 in vertical for 6 channels Line-out, 2 in vertical for MIC & Linein

1 x standard 1394 connector

1 x mini 1394 connector

5 x USB ports (3x Front + 2x Rear)

1 x RJ-45 Lan Jack

1 x PS2 KB

1 x PS2 Mouse

Onboard IEEE1394

Integrated in SiS 963 SB



S/W RealTek ALC650 6-channel audio codec with SPDIF in/out


Realtek RTL8201BL


The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.

The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.


M-ATX Form Factor; 24.4 cm x 23.0 cm


6 mounting holes


Suspend to RAM/Disk (S3/S4)

PC2001 compliant

Chassis Intrusion Detection


Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

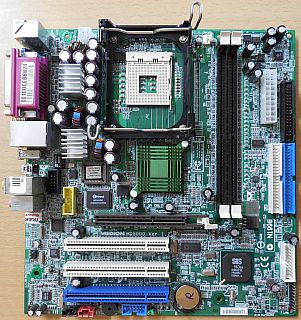

Abbildung ähnlich


14,75 EUR

inkl. Mwst. Differenzbesteuert nach §25a UStG gegebenenfalls plus Versandkosten
