Asus M3N78-VM Rev1.02G Mainboard +Blende AMD Sockel AM2+ AM2 DDR2 VGA HDMI* m756

Art.Nr: m756

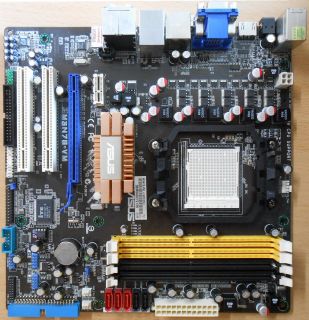

Asus M3N78-VM Rev 1.02G Mainboard + Blende


Technische Daten

Prozessor / CPU

Socket AM2+ / AM2 Processors

AMD AMD Phenom™ FX / Phenom / Athlon™ / Sempron™

Support bis zu 140W CPU

AMD Cool 'n' Quiet™ Technology


GeForce 8200

System Bus

Bis zu 5200 MT/s via HyperTransport™ 3.0 interface für AM2+ CPU

2000/1600 MT/s für AM2 CPU


4 x 240-pin DIMM, max. 8 GB, DDR2 1066*/800/667/533 ECC, Non-ECC, Un-buffered Memory

Dual Channel memory architecture

*DDR2 1066 is supported by AM2+ CPU only

**Refer to the Asus Website or user manual for Memory QVL (Qualify Vendor List)

***When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.


Integrated NVIDIA GeForce® 8 Series GPU

Hybrid SLI™ Support (support Windows® Vista only.)

Supports HDMI™ Technology with max. resolution up to 1920 x 1200

Supports DVI with max. resolution up to 1600 × 1200

Supports D-Sub with max. resolution up to 1920 × 1440

Supports Microsoft® DirectX 10, OpenGL 2.0, Pixel Shader 4.0

Support PCIe 2.0 / 1.0 Architecture

Maximum shared memory of 256MB


1 x PCIe x16 (blau)

1 x PCIe x1

2 x PCI


NVIDIA® MediaShield™ Chipset built-in,

RAID 0,1,0+1,5, JBOD

1 x UltraDMA 133/100 up to two devices

5 x SATA 3Gb/s ports (Use SATA1-3 for IDE mode.)


NVIDIA nForce built-in Gigabit MAC with external RTL8211CL-GR


VT1708B 8-Channel High Definition Audio CODEC

- Optical S/PDIF out port at back I/O

- Support Jack Detection and Multi-streaming


12 x USB 2.0 Schnittstellen (6 an der Gehäuserückseite, 6 intern)

ASUS AI Lifestyle Features

ASUS Quiet Thermal Solution

- ASUS Q-Fan


- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

Overclocking Features

- GPU Overclocking up to 600 MHz

SFS (Stepless Frequency Selection)

- HT tuning from 200MHz up to 400MHz at 1MHz increment

- Memory tuning from 533MHz up to 1066MHz

- PCIe frequency tuning from 100MHz up to 200MHz at 1MHz increment

Overclocking Protection:

- ASUS C.P.R. (CPU Parameter Recall)

Special Features


ASUS MyLogo 2

Back Panel I/O Ports

1 x PS/2 Keyboard/Mouse Combo port

1 x Optical S/PDIF Out

1 x HDMI

1 x DVI

1 x D-SUB

1 x External SATA (Does not support port multiplier)

1 x RJ45 port

6 x USB 2.0/1.1

8-Channel Audio I/O

Internal I/O Connectors

3 x USB connector (6 ports)

1 x Floppy disk drive connector

1 x TPM header

1 x LPT connector

1 x COM connector

5 x SATA connectors

1 x CPU Fan connector

1 x Chassis Fan connector

1 x Power Fan connector

1 x Front panel audio connector

1 x S/PDIF Out connector

1 x Chassis Intrusion connector

1 x CD audio in connector

1 x 24-pin ATX Power connector

1 x 4-pin ATX +12V Power connector

1 x System Panel connector


8 Mb Flash ROM; AMI BIOS; PnP; DMI 2.0; WfM 2.0; SM BIOS 2.5; ASUS EZ Flash 2


9.6 " x 9.6 " ( 24.4 cm x 24,4 cm )

uATX Formfaktor


Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich


39,95 EUR

inkl. Mwst. Differenzbesteuert nach §25a UStG gegebenenfalls plus Versandkosten
