Lenovo M81 03T8005 IS6XM Ver 1.0 Mainboard +Blende Sockel 1155 PCIe DDR3* m802

Lenovo M81 03T8005 IS6XM Ver 1.0 Mainboard + Blende Sockel 1155 PCIe DDR3

Technische Daten

CPU

Intel® Core i3-2100 Prozessor (3 MB Cache, 3,10 GHz); Intel® Core i3-2100T Prozessor (3 MB Cache, 2,5 GHz); Intel® Core i3-2120 Prozessor (3 MB Cache, 3,30 GHz); Intel® Core i5-2300 Prozessor (6 MB Cache, 2,8 GHz); Intel® Core i5-2390T Prozessor (3 MB Cache, 2,7 GHz); Intel® Core i5-2400 Prozessor (6 MB Cache, 3,10 GHz); Intel® Core i5-2400S Prozessor (6 MB Cache, 2,50 GHz); Intel® Core i5-2500 Prozessor (6 MB Cache, 3,30 GHz); Intel® Core i5-2500S Prozessor (6 MB Cache, 2,70 GHz); Intel® Core i5-2500T Prozessor (6 MB Cache, 2.30 GHz); Intel® Core i7-2600 Prozessor (8 MB Cache, 3,40 GHz); Intel® Core i7-2600S Prozessor (8 MB Cache, 2.80 GHz)

3 MB bis 8 MB Cache, prozessorabhängig

Chipset

Intel Q65 Chipset

Main Memory

Supports 1GB, 2GB, 3GB, 4GB, 8GB, 16GB memory

4 x UDIMM slots, PC3-10600 1333MHz DDR3

Slots

1 x PCI Express x16

1 x PCI Express x1

2 x PCI

On-Board SATA

1 x SATA3 (6Gb/sec Transferrate)

2 x SATA2 (3Gb/sec Transferrate)

1 x eSATA (3Gb/sec Transferrate)

Video

Integrated Graphics Adapter (Intel HD Graphics 2000)

Audio

Integrated Audio

ALC662 chipset

LAN

Intel 82579 Gigabit Ethernet Controller

10Mbps, 100Mbps, 1000Mbps Data Rates Supported

RJ45 External Connector Type

Power management

Advanced Configuration and Power Interface (ACPI) support

Internal I/O Connectors

ATX 24-Pin power connector

4-pin ATX 12V power connector

CPU / Power / System fan connectors

Clear CMOS jumper

Serial port connector (COM2)

Parallel port connector (LPT)

2 x USB 2.0 connector support additional 4 ports

Front panel audio connector

Mono Out connector

Front panel connectors

3 x Serial ATA device connector + 1 x eSATA connector

Ther_HD connector

Back Panel I/O Ports

1 x COM Serial RS-232

1 x VGA (Sub-D)

1 x DisplayPort

1 x Audio I/O (3 in 1)

6 x USB 2.0

1 x RJ45 LAN jack

1 x PS/2 keyboard

1 x PS/2 mouse

All systems conforms to the following industry standards:

ACPI v3.0, DMI v2.0, IEEE 802.3, JEDEC 240-pin DIMM memory, SmBios v2.6, PCI v2.3, PCIe v1.0, Serial ATA II/III, PXE v2.1, USB v2.0, AMT7.1

Dimension

Tower (4x5)

Lieferumfang

Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

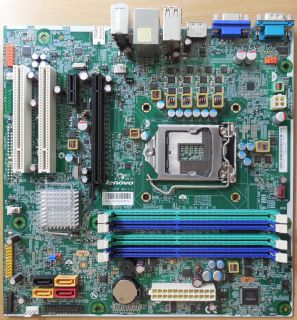

Abbildung ähnlich
