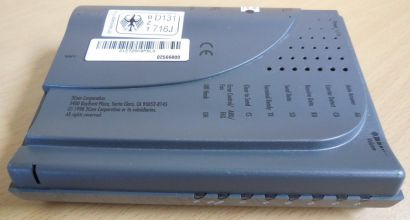

U.S.Robotics 56K Analog Faxmodem SP Message Plus seriell 1x RJ-11 DB25* nw534

U.S.Robotics 56K Analog Faxmodem Sportster Message Plus seriell 1x RJ-11 1x DB25

- is a feature-enhanced external modem with added FlashMemory

- provides the full functionality of a standard Sportster modem

- retains incoming fax and voice messages and therefore is not just a pass through device

- is capable of receiving and storing incoming fax and voice messages without any DTE(Data    Terminal Equipment) intervention

- can transfer stored messages to the DTE(Data Terminal Equipment) at a later time

- enables remotely stored voice messages to be accessed through a dialup connection

- offers a voice channel feature that includes a built-in condenser microphone

Modulation Schemes

x2 technology; ITU-T V.34+; ITU-T V.34; ITU-T V.32bis; ITU-T V.32; ITU-T V.23; ITU-T V.22bis; ITU-T V.22; Bell 212A; ITU-T V.21; Bell 103

Error Control and Data Compression Schemes

ITU-T V.42; ITU-T V.42bis; MNP 2-5

Fax Modulation Schemes

ITU-T V.17; ITU-T V.29; ITU-T V.27ter; ITU-T V.21

Fax Standards

EIA 578 Class 1 FAX; EIA 592 Class 2.0 FAX

Front Channel Link Rates

33333, 37333, 41333, 42666, 44000, 45333, 46666, 48000, 49333,50666, 52000, 53333, 54666, 56000

Back Channel Link Rates

14400, 16800, 19200, 21600, 24000, 26400, 28800, 31200

V.34+ Link Rates

4800, 7200, 9600, 12000, 14400, 16800, 19200, 21600, 24000,26400, 28800, 31200, 33600

V.32bis Link Rates

4800, 7200, 9600, 12000, 14400

Additional Link Rates

300, 1200/75 (V.23), 1200, 2400

Fax Link Rates

2400, 4800, 7200, 9600, 12000, 14400

Lieferumfang

 Nur das Modem * Ohne Netzteil oder weiteres Zubehör * gebraucht *

Abbildung ähnlich
