Intel DQ45CB Rev E30148 207 Mainboard +Blende Sockel 775 DDR2 VGA DVI PCIe* m893

Intel DQ45CB Rev E30148-207 Mainboard + Blende Sockel 775 DDR2 VGA DVI PCIe

Technische Daten

CPU

Intel® Core™2 Quad processor in an LGA775 socket

Intel® Core™2 Duo processor in an LGA775 socket

Intel® Pentium® Dual-Core processor in an LGA775 socket

Intel® Celeron® Dual-Core processor in an LGA775 socket

Intel® Celeron® processor 400 Sequence in an LGA775 socket

Chipset

Intel® 82Q45 Graphics and Memory Controller Hub (GMCH) + Intel® 82801JDO I/O Controller Hub (ICH10DO)

Memory

4 x 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets (non-ECC)

Support for DDR2 800 MHz or DDR2 667 MHz DIMMs

Support for up to 8 GB of system memory using DDR2 800 MHz or DDR2 667 MHz DIMMs

Expansion Capabilities

1 x PCI Express x16 2.0 bus add-in card connector

2 x PCI Express x1 bus add-in card connectors

1 x PCI Conventional bus connector

Storage

5 x SATA 3.0 Gb/s ports (0,1,5,10 Intel Matrix Storage Technology Support RAID)

1 x External SATA 3Gb/s port

Video

Intel® Graphics Media Accelerator 4500 (Intel® GMA 4500) onboard graphics subsystem

LAN Support

Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel®82567LM Gigabit Ethernet Controller

Audio

5.1-channel audio subsystem using the ADI AD1882 high definition audio codec

USB

12 x USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)

IEEE1394 Firewire

2 x Firewire ports (1 port at mid-board, 1 port at back panel)

Legacy I/O Control

Legacy I/O controller for serial port header

Back Panel I/O Ports

1 x DVI-I (blau)

1 x DVI-D (weiß)

1 x IEEE1394 Firewire

1 x External SATA

1 x RJ45 port

6 x USB 2.0/1.1

5.1-channel Audio I/O

Internal I/O Connectors

1 x 24-pin ATX Power connector

1 x 4-pin ATX 12V Power connector

1 x CPU Fan connector (4pin)

2 x Chassis Fan connector (3-pin)

1 x Front panel audio connector

1 x Front panel HD audio connector

1 x System Panel connector

1 x IEEE1394 Firewire connector

3 x USB connectors support additional 6 USB ports

1 x Serial port connector (COM)

5 x SATA connectors

1 x CMOS Jumper

BIOS

Intel® BIOS (resident in the SPI Flash device)

Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and SMBIOS

Instantly Available PC Technology

Support for PCI* Local Bus Specification Revision 2.3

Support for PCI Express* Revision 1.0a

Suspend to RAM support

Wake on PCI, RS-232, front panel, USB ports, LAN

Hardware Monitor Subsystem

Intel® Quiet System Technology implemented through the Intel® Management Engine (Intel® ME) in ICH10DO

Voltage sense to detect out of range power supply voltages

Thermal sense to detect out of range thermal values

Three fan headers

Three fan sense inputs used to monitor fan activity

Advanced Technologies

Intel® Virtualization Technology for Directed I/O (VT-d); Intel® vPro™ Platform Eligibility; Intel® ME Firmware Version 5; Intel® Remote PC Assist Technology; Intel® CIRA Technology; TPM; Intel® Quiet System Technology; Intel® HD Audio Technology; Intel® Matrix Storage Technology

Form Factor

Micro-ATX 9.60 inches x 9.60 inches (243.84 mm x 243.84 mm)

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

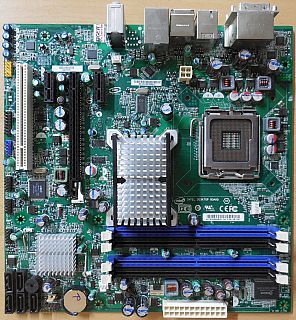

Abbildung ähnlich
