Produktbeschreibung

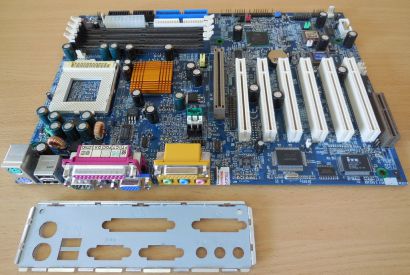

Gigabyte GA-6OXM7E Rev 2.0 Mainboard + Blende Intel Sockel 370 AGP PCI VGA
Technische Daten
Prozessor
Socket 370 for Intel® FC-PGA Pentium®III or other compatible processors
AUTO detect CPU voltage
Supports Auto/66/100/133 MHz FSB & other clocks by Gigabyte EasyTune III Utility
Chipsatz
Intel® 815E AGPset
iTE IT8712F-A I/O & health chip
Creative CT5880 PCI sound chip; AC97
Arbeitsspeicher
32MB to 512MB memory size
4 x DIMM sockets
Supports 32/64/128/256/512 MB SDRAM module
Erweiterungssteckplätze
1 x AGP slot supports 2X/4X mode AGP card or supports AIMM
1 x CNR (Communication Networking Riser) slot
6 x PCI slots support 33MHz & PCI 2.2 compliant
I/O
2 x Ultra DMA 33/66/100 IDE ports on board
1 x FDD, 2 x COM (1 by optional cable), 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
1 x VGA(DB15), 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
Provides one SPDIF connector (Optional)
2 x USB ports on board and another 2 front USB ports by cable (optional accessary)
Provides header for Smart Card Reader
IrDA header ready
Front panel audio header ready
20 pin IA port header (Optional)
H/W Überwachung
Auto speed down and alarm when CPU overheat or fan failure (OS independent & driverless)
3 fanpower & speed detection connectors; Case open detection
System health status detect & report by BIOS, LDCM®
H/W detect ±5V, ±12V, CPU voltage & CMOS battery status
BIOS
Supports DualBIOS™ technology; 4Mbit flash RAM
BIOS with enhanced ACPI feature for PC99/Win98/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
Auto-detect & report system health status
Form Factor
ATX, 4 layer PCB (ca. 30.5 x 21.5cm)
Andere Funktionen
Suspend-To-RAM (STR)
Includes Wake-On-LAN header (WOL); Includes Wake-On-Ring (WOR)
Poly fuse for keyboard, USB & game overcurrent protection
Stromversorgung
ATX power connector
Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem & switch
Power-off by Windows 95/98/2000 shut down & Switch
Supports USB device wake-up
Suspend / Wake-on by ACPI & APM device
AC recovery ON/OFF control; 3 level ACPI LED support
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
