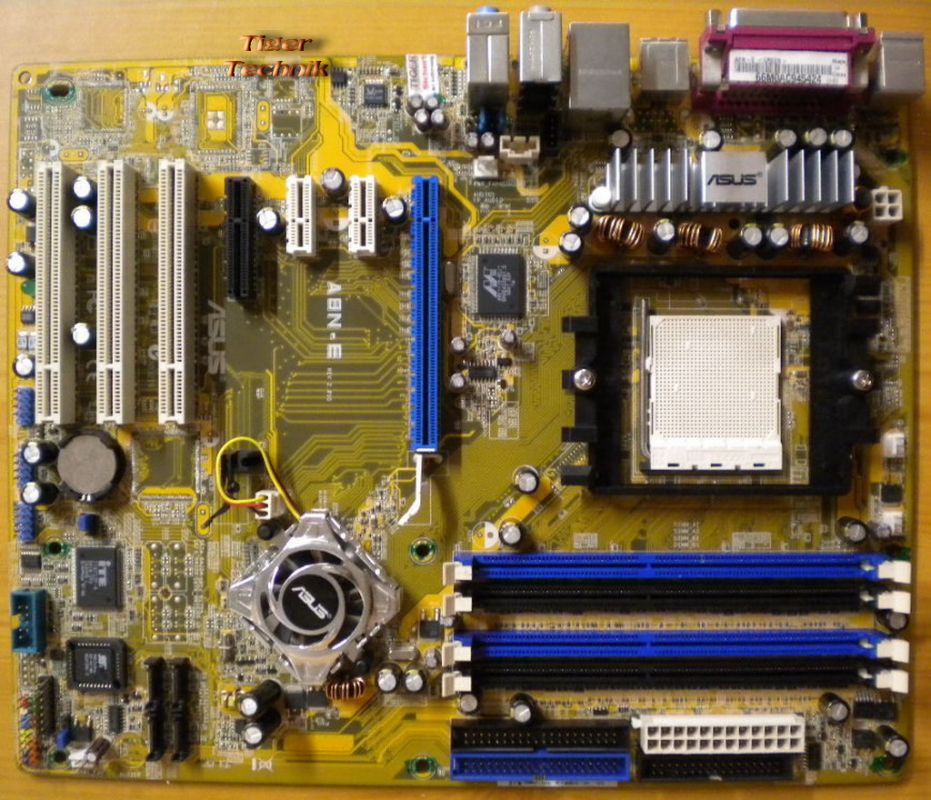

Asus A8N-E Rev 2.01G Mainboard + Blende Sockel 939 nForce4 SATA PCIe GLAN* m646

Asus A8N-E Rev 2.01G Mainboard + Blende Sockel 939 nForce4 SATA PCIe GLAN

Technische Daten

CPU

Socket 939 for AMD Athlon™ 64 FX/AMD Athlon™ 64 X2 / AMD Athlon™ 64 processor

Supports AMD 64 architecture that enables simultaneous 32-bit and 64-bit architecture

Supports AMD® Cool ‘n’ Quiet! Technology

Chipset

NVIDIA® nForce™ 4 Ultra

System Bus

1600/2000 MT per second

Memory

Dual-channel memory architecture

4 x 184-pin DIMM sockets support ECC/non-ECC unbufferred 400/333/266 MHz DDR memory modules

Supports up to 4 GB system memory

Expansion slots

1 x PCI Express x16 slots

2 x PCI Express x1 slots

1 x PCI Express x4 slot*

*(Note: Supports a total bandwidth of 1GB/s)

3 x PCI slots

Storage

NVIDIA®nForce™ 4 Ultra chipset supports:

- 2 x Ultra DMA 133/100/66/33

- 4 x Serial ATA 3Gb/s drives

- RAID 0, RAID 1, RAID 1+0, and JBOD that spans across the Serial ATA and Parallel ATA drives

Overclocking

AI NOS™ (Non-Delay Overclocking System)

ASUS AI Overclocking (Intelligent CPU frequency tuner)

ASUS PEG Link

Fixed PCI Express/PCI/SATA frequencies

ASUS C.P.R. (CPU Parameter Recall)

Precision Tweaker supports:

- DIMM voltage: 9-step DRAM voltage control

- Core voltage: Adjustable CPU voltage at 0.0125 increment

- PCI Express Frequency: Allows 1MHz increment from 100MHz to 200MHz

- Stepless Frequency Selection(SFS) allows 1MHz increment from 200 MHz to 400 MHz

Special features

ASUS EZFlash, Q-Fan, CrashFree BIOS 2, Multi-language BIOS, MyLogo2, Instant Music

Internal connectors

1 x Floppy disk drive connector

2 x IDE connectors

4 x Serial ATA connectors

1 x CPU fan connector

1 x Power fan connector

2 x Chassis fan connector

1 x Chipset fan connector

1 x Serial port connector (COM port)

1 x 24-pin ATX power connector

1 x 4-pin ATX 12 V power connector

3 x USB 2.0 connectors for 6 additional USB 2.0 ports

1 x Internal audio connectors (CDAUX)

1 x GAME/MIDI connector

1 x Chassis intrusion connector

1 x Front panel audio connector

System panel connector

LAN

NVIDIA®nForce™ 4 built-in Gigabit MAC with external

Marvell®PHY supports:

- NV ActiveArmor™

- NV Firewall™

AI NET2

AI Audio

Realtek® ALC850 8-channel CODEC

1 x Coaxial S/PDIF out port

1 x Optical S/PDIF out port

Supports Universal Audio Jack (UAJ®) Technology

Supports Audio Sensing and Enumeration Technology

USB

Supports up to 10 USB 2.0 ports

Rear panel

1 x Parallel port

1 x LAN (RJ-45) port

4 x USB 2.0 ports

1 x Optical S/PDIF out port

1 x Coaxial S/PDIF out port

1 x PS/2 keyboard port

1 x PS/2 mouse port

8-channel audio ports

BIOS features

4 Mb Flash ROM, Phoenix-Award BIOS, PnP, DMI2.0,

WfM2.0, SM BIOS 2.3

Power Requirement

ATX power supply (with 24-pin and 4-pin 12 V plugs)

ATX 12 V 2.0 compliant

Form Factor

ATX form factor: 12 in x 9.6 in (30.5 cm x 24.4 cm)

Lieferumfang

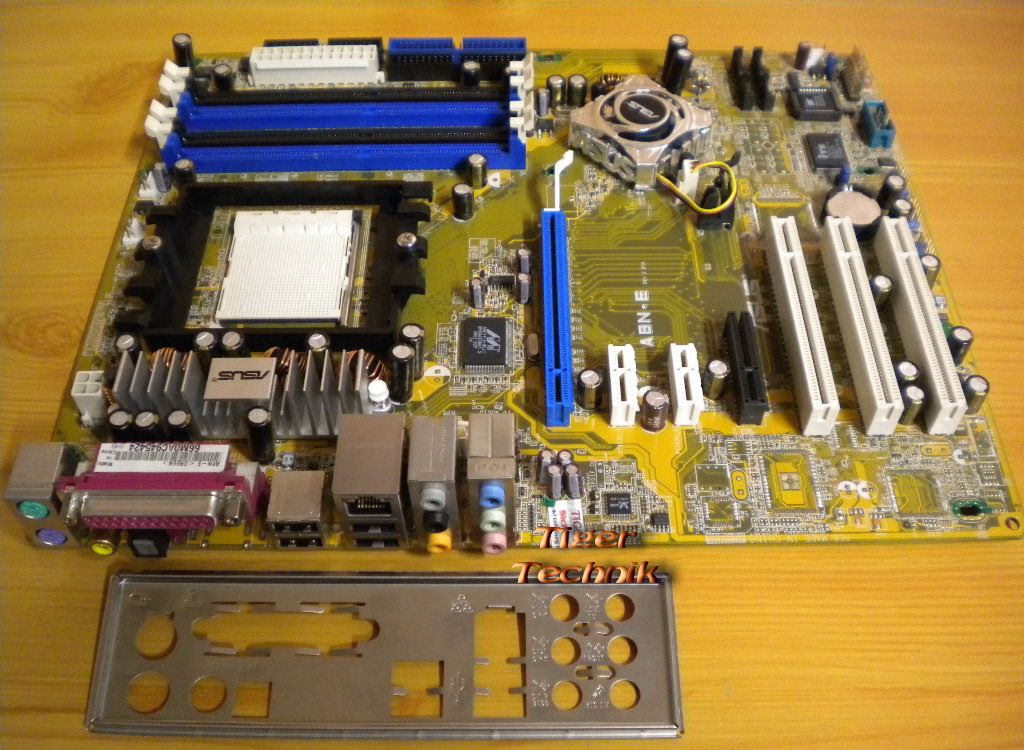

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
