Asus A8V-MX Rev 1.00 Mainboard mit Blende * So 939 AGP 8x LAN USB2.0 SATA *m107

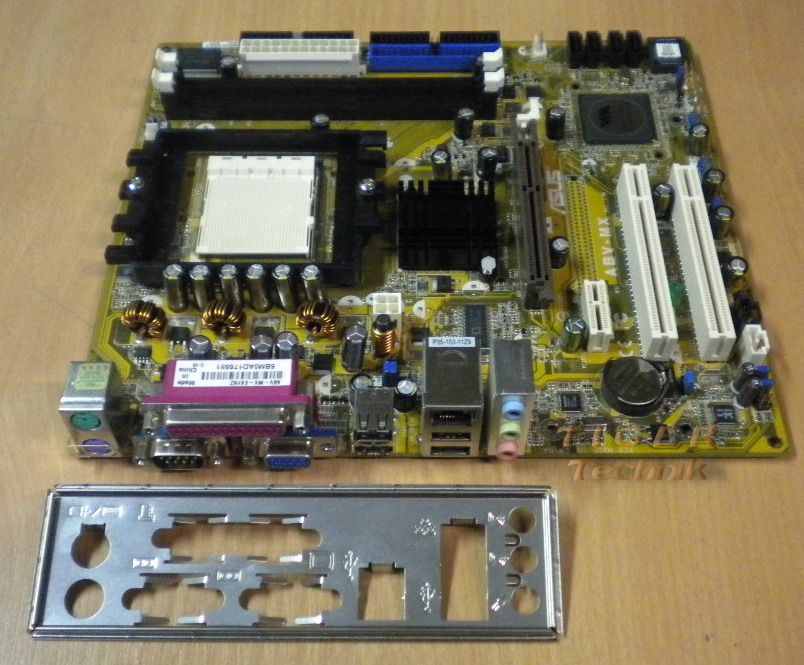

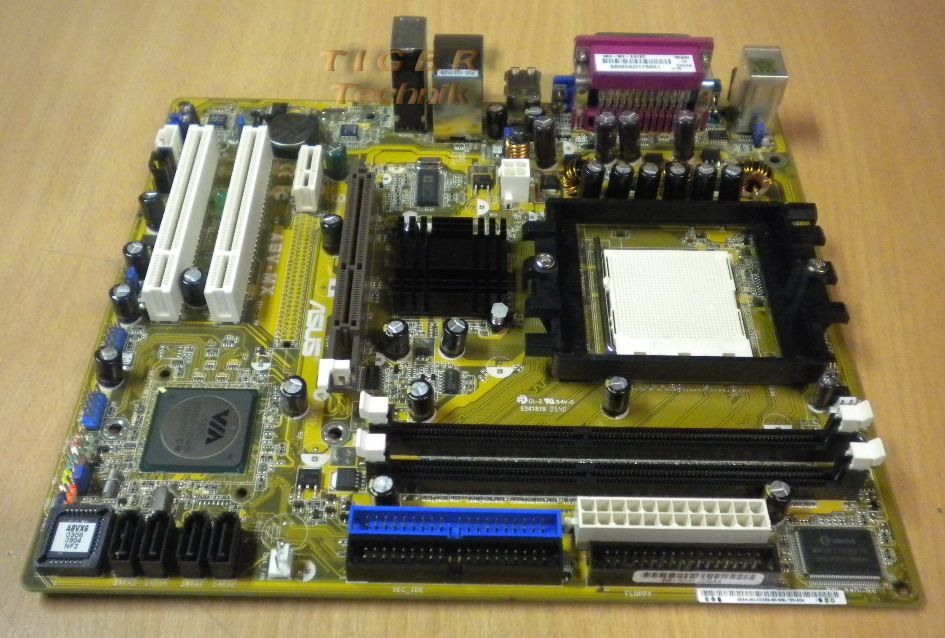

Asus A8V-MX Rev 1.00 Mainboard mit Blende

Technische Daten:

CPU

Socket 939 for AMD Athlon™ 64FX/Athlon™ 64 X2/Athlon™ 64/Sempron™ 64 processors

Chipset

Northbridge: VIA K8M800

Southbridge: VT8251

System Bus

1600 MT/s

Memory

Dual-channel memory architecture

2 x 184-pin DIMM sockets support up to 2 GB of unbufferred ECC/non-ECC 400/333/266 MHz DDR memory modules

Expansion slots

1 x PCI Express™ x1 slot

1 x AGP 8X slot

2 x PCI slots

Graphics

Integrated in the Northbridge

Storage

VT8251 Southbridge supports:

- 2 x UltraDMA 133/100/66/33 IDE slots

- 4 x Serial ATA I/Serial ATA II hard disk drives with RAID 0, RAID 1, RAID 0+1, and JBOD configuration

Audio

Realtek® ALC653 6-channel CODEC

S/PDIF out interface

LAN

Realtek® RTL8201CL 10/100 LAN PHY

USB

          Supports up to 8 USB 2.0 ports

Special features

ASUS Q-Fan

ASUS MyLogo™

BIOS features

4 Mb Flash ROM, AMI BIOS, PnP, DMI, WfM2.0, ACPI 2.0a, SM BIOS 2.3, PXE flash utility

ASUS EZ Flash

ASUS CrashFree BIOS 2

ASUS C.P.R. (CPU Parameter Recall)

Rear panel

1 x Parallel port

1 x LAN (RJ-45) port

4 x USB 2.0 ports

1 x Serial port (COM)

1 x PS/2 keyboard port

1 x PS/2 mouse port

6-channel audio ports

Internal connectors

1 x Floppy disk drive connector

1 x Primary IDE connector

1 x Secondary IDE connector

4 x Serial ATA connectors

1 x Chassis intrusion connector

1 x CPU fan connector

1 x Chassis fan connector

2 x USB 2.0 connectors for four additional USB 2.0 ports

1 x Optical drive audio in connector

1 x AUX connector

1 x Front panel audio connector

1 x S/PDIF connector

24-pin ATX power connector

4-pin x ATX 12V power connector

System panel connector

Power Requirement

ATX power supply (with 24-pin and 4-pin 12 V plugs)

ATX 12 V 2.0 compliant

Form Factor

mATX: 9.6 in. x 8.6 in. (24.5cm x 21.8cm)

Manageability

WOR by Ring, WOL/WOR by PME, WO USB, WO KB/MS

Hier gehts zum Handbuch --->  http://dlcdnet.asus.com/pub/ASUS/mb/socket939/A8V-MX/e2337_a8v-mx.pdf

Lieferumfang

Das Mainboard + Blende - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
