Produktbeschreibung

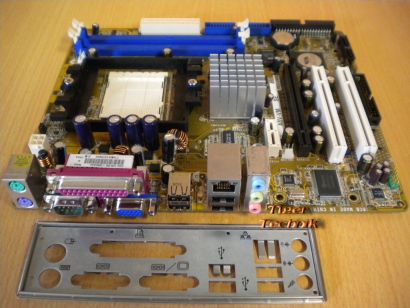

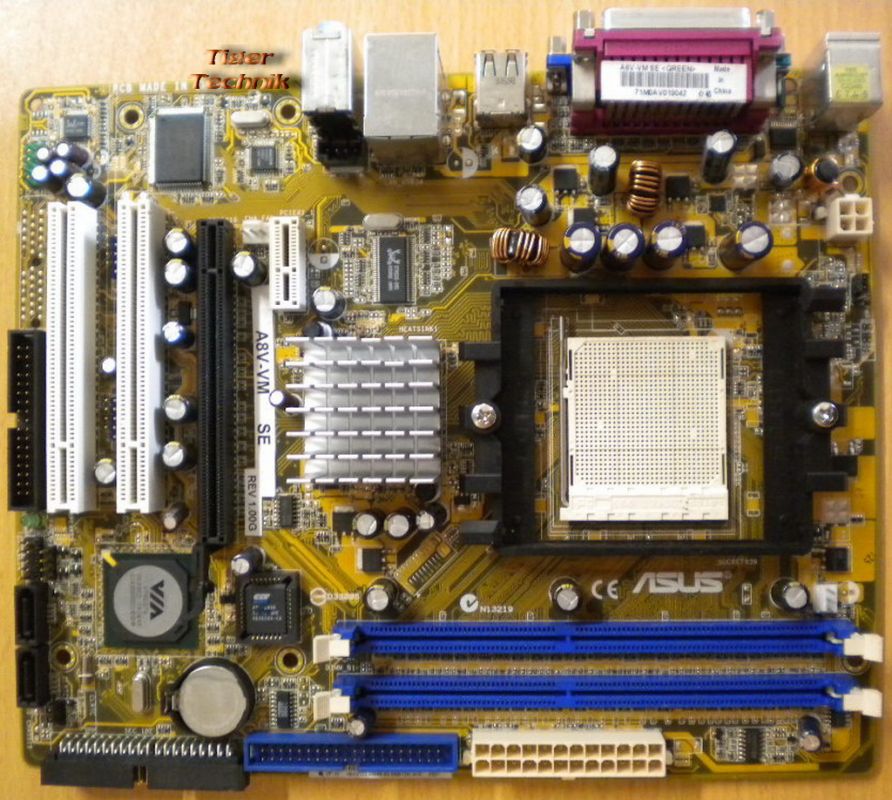

Asus A8V-VM SE Rev 1.00G Mainboard + Blende
Technische Daten
CPU
Socket 939 for AMD processors
Supports AMD 64 architecture that enables simultaneous 32-bit and 64-bit computing
Supports AMD Cool 'n' Quiet!™ Technology
Chipset
Northbridge: VIA® K8M890
Southbridge: VIA® VT8237A
System Bus
1GH/z
Memory
Dual-channel memory architecture
2 x 184-pin DIMM sockets support unbuffered ECC/non-ECC DDR 400/333/266 MHz memory modules
Supports up to 2 GB system memory
VGA
Integrated Gfx in North bridge
Expansion slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
Storage
VIA® VT8237A South Bridge supports:
- 2 x Ultra DMA 133/100/66/33
- 2 x Serial ATA devices with RAID 0, RAID 1, and JBOD configurations
Audio
Realtek® ALC660 6-channel CODEC
USB
Supports up to 8 USB 2.0 ports
LAN
Realtek® RTL8201CL 10/100M LAN PHY
ASUS special features
ASUS MyLogo, ASUS EZ Flash, ASUS CrashFree BIOS 2
BIOS features
4 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3
Back Panel I/O Ports
1 x Parallel port
1 x Serial port
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x RJ45 port
4 x USB 2.0 ports
6-Channel Audio I/O ports
1 x VGA port
Internal I/O connectors
1 x 24-pin ATX power connector
1 x 4-pin ATX 12V power connector
2 x USB connectors for four additional USB 2.0 ports
1 x Front panel audio connector
CPU/Chassis fan connectors
1 x CD audio-in connector
1 x System panel connector
Manageability
Wfm2.0, DMI2.0, WOL by PME, WOR by PME, PXE
Form Factor
mATX Form Factor: 9.6 in x 7.8 in (24.4 cm x 19.4 cm)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
