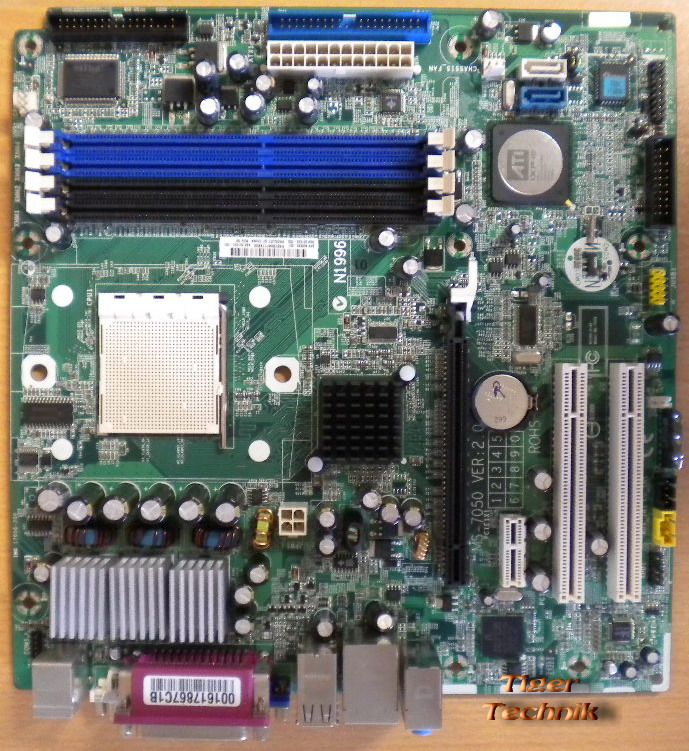

HP 409643-001 361635-003 MSI MS-7050 Ver: 2.0 Mainboard + Blende Sockel 939*m450

HP 409643-001 361635-003 MSI MS-7050 Ver: 2.0

Mainboard + Blende Sockel 939 z.B. für DX5150

Ohne Retentionmodul! Nur in Verwendung mit einem HP Kühler oder nach Einbau eines Retentionmoduls sinnvoll.

CPU Support

AMD Athlon 64 FX (Clawhammer, San Diego, Toledo)

AMD Athlon 64 X2 (Manchester, Toledo)

AMD Opteron (Venus)

AMD Sempron (Palermo)

Chipset

NB/SB interconnection via A-Link Express with 1 GB/s (4 PCIe lanes)

Supports HyperTransport interface (800/1000 MHz)

Supports asynchronous HyperTransport and memory controller interface speeds

Supports Advanced Configuration and Power Interface (ACPI)

Supports Universal Serial Bus (USB 2.0)

Supports PCI Express (PCIe 1.0a)

Supports PCI v2.3

Supports IDE/PATA with up to UDMA133

Supports Serial ATA 1.5 Gbit/s

Supports Serial ATA RAID modes 0, 1

Memory

Supports up to 4 DIMMs DDR 333/400

Supports up to 1 GiB DIMMs

Supports max. 4 GiB RAM

Supports 128 bit memory interface (Dual Channel)

Graphics

Supports up to 128 MB shared memory (UMA)

Supports HyperMemory technology

Supports Pixel Shader Model 2.0

Supports Vertex Shader Model 2.0

Microsoft DirectX 9.0b compliant

OpenGL 2.0 compliant

Audio

Realtek ALC655 AC'97 audio codec

AC'97 2.3 compliant

LAN

Supports 10/100/1000M Gigabit Ethernet

Connected via PCIe x1

Internal I/O

1 PCIe x1

2 PCI

2 SATA

1 PATA/IDE

1 Floppy port

1 RS-232 header (COM)

1 USB 2.0 header

1 FrontPanel audio header

AUX-IN, CD-IN

Back Panel I/O

PS/2 mouse

6 USB 2.0 ports

1 DVI-D port

1 VGA port

1 RJ45 (LAN)

1 parallel port (LPT)

Audio connectors (line-out, line-in, mic-in)

BIOS

4MBit Flash EEPROM (PLCC32)

Phoenix - Award WorkstationBIOS v6.00PG

Supports Plug-and-Play (PNP)

Supports Advanced Power Management (APM)

Supports Advanced Configuration and Power Interface (ACPI)

Supports Desktop Management Interface (DMI)

Miscellaneous

24 pin ATX power connector

4 pin 12V power connector

SMSC LPC47B397-NC hardware monitoring and Super I/O chip

MSI MS-6 ACPI controller

ICS 951412AG clock generator (PLL)

Intersil ISL6559CB multiphase PWM controller (2-/3-/4-phase operation)

2 3-pin FAN headers

8 mounting holes

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
