ASRock K7S8X Rev 3.01 Mainboard +Blende Sockel A 462 AGP LAN Audio USB2.0* m707

ASRock K7S8X Rev 3.01 Mainboard + Blende

Sockel A 462 AGP LAN Audio USB2.0

Technische Daten

CPU

- Socket 462, supporting AMD Sempron, Athlon, Athlon XP, Duron

- FSB 333/266/200 MHz

Chipset

- SiS 746FX

Memory

- 3 x DDR DIMMs, DDR400/333/266 non-ECC, un-buffered memory

- DDR266/200, Max. capacity of system memory: 3GB

- DDR333, Max. capacity of system memory: 2GB

- DDR400, Max. capacity of system memory: 1GB

BIOS

- 2Mb AMI BIOS with ACPI, SM BIOS 2.3.1, PnP

Audio

- AC97 CODEC

- 5.1 Channel 3D

LAN

- 802.3u, 10/100 Ethernet LAN, WOL supported

- Supports PXE

Slots

- 1 x AGP 8X/4X 1.5Volt

- PCI 5 slots, PCI 2.2

Connector

- 2 x ATA 133/100/66/33 IDE

- 1 x connector Floppy

- 1 x SIR

- CPU/Chassis FAN connectors

- 20 pin ATX power connector

- CD/AUX/ audio in

- Front panel audio connector

- 1 x USB2.0 connector for additional USB2.0 ports

Rear Panel I/O

ASROCK I/O:

- 1 x Keyboard PS2

- 1 x Mouse PS2

- 4 x USB 2.0

- 1 x Serial

- 1 x Parallel

- 1 x Game/MIDI

- 1 x LAN RJ45

- Audio I/O Line In/Line Out/Mic

Unique Feature

Hybrid Booster:

- CPU Multiplier

- CPU Vcore adjustment

- CPU Frequency Stepless Control

- AGP/PCI frequency fix

- ASRock U-COP, Boot Failure Guard (B.F.G)

Form Factor

- ATX , 12"x7.5"

OS

- Microsoft® Windows® 98SE/ME/2000/XP compliant

Lieferumfang

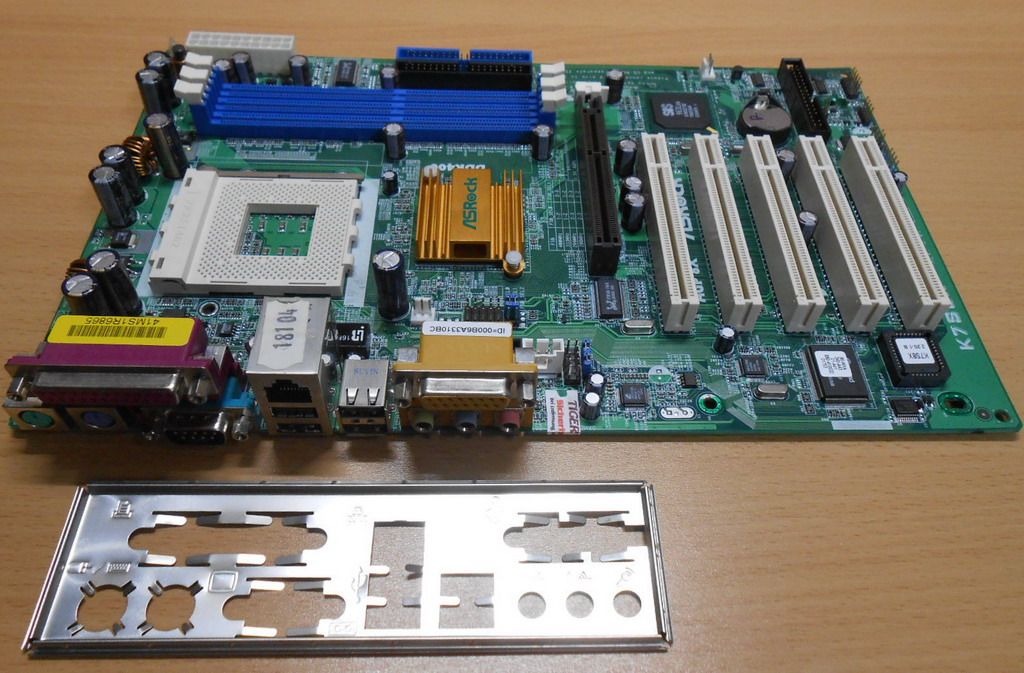

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

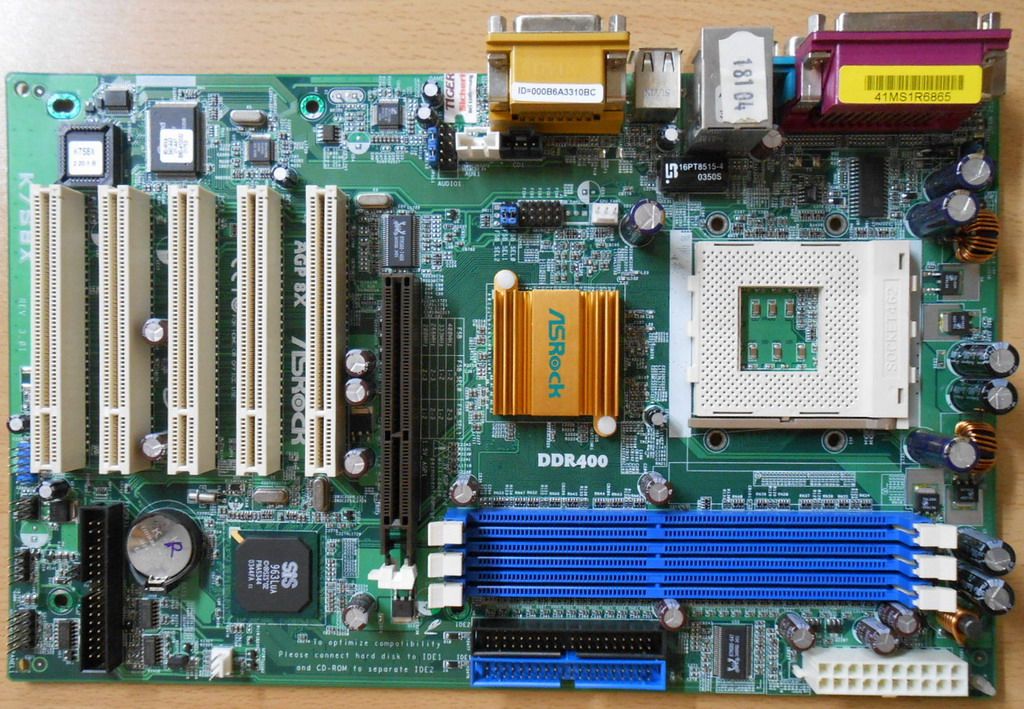

Abbildung ähnlich
