Produktbeschreibung
Asus A7N8X rev. 1.04 4MBO-OEM mit Blende
Auch passend für Vobis und Actebis PC´s mit dem Asus A7N8X Mainboard!
Technische Daten:
CPU
Socket A for AMD Athlon™ XP/Athlon™ / Duron™
Thoroughbred/ Barton Core Support
Chipset
North Bridge: NVIDIA® nForce2 400 South Bridge: NVIDIA® nForce2 MCP
Front Side Bus
400 / 333 / 266 / 200 MHz
Memory
DDR 400
3 x 184-pin DIMM Sockets
Max. 3 GB unbuffered PC3200/PC2700/PC2100/PC1600 non-ECC DDR RAM Memory
Expansion Slots
1 x AGP(1.5V only)
5 x PCI
IDE
2 x UltraDMA 133/100/66/33
Audio
Realtek® ALC650 6CH w/built in HP amplifier
LAN
1 Ports
MCP integrated NVIDIA® MAC + Realtek® 8201BL PHY
Special Features
Power Loss Restart
Q-Fan Technology
STR (Suspend-to-RAM)
C.O.P. (CPU Overheating Protection)
CPU Throttle
Back Panel I/O Ports
1 x Parallel
1 x Serial
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x Audio I/O with SPDIF & More
2 x USB 2.0
Internal I/O Connectors
1 x USB 2.0 connector support additional 2 USB 2.0 ports
CPU/Chassis FAN connectors
Game Connector(optional)
20 pin ATX power connector
IDE LED connector, power LED connector
WOR, WOL, Chassis Intrusion, SM Bus, SIR
Headphone (optional)
Front MIC
CD/AUX/Modem audio in
Front Panel Audio connector (optional)
BIOS
2Mb Flash ROM, Award BIOS, TCAV, PnP, DMI2.0, DMI, Green
Industrial Standard
PCI 2.2, USB 2.0
Manageability
DMI 2.0, WOR, WOL, Chassis Intrusion
Form Factor
ATX Form Factor
12" x 9.6" (30.5cm x 24.5cm)
Lieferumfang
Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

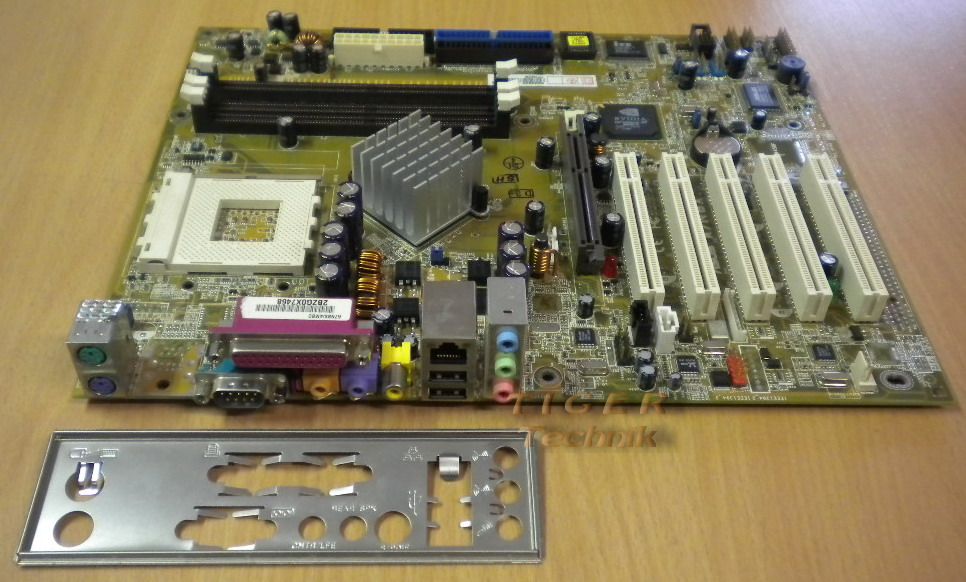

Abbildung ähnlich
