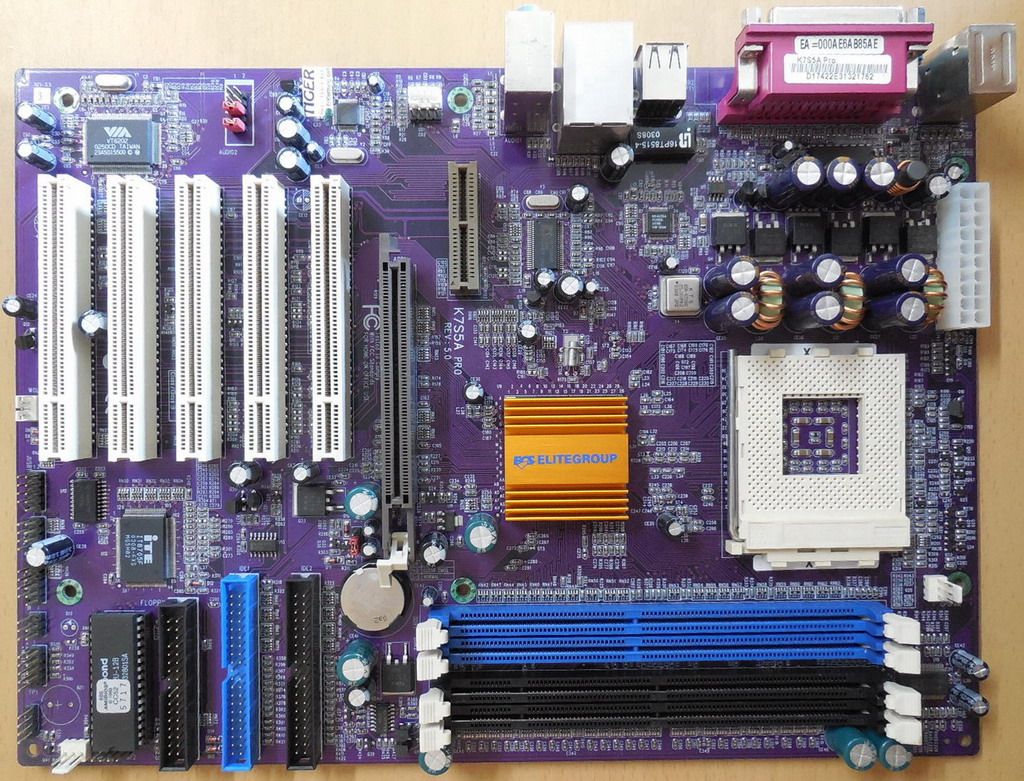

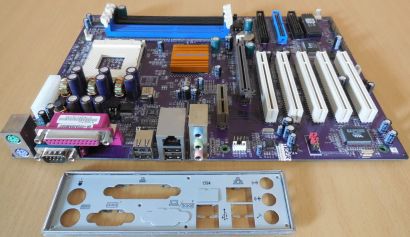

Elitegroup ECS K7S5A PRO Mainboard +Blende Sockel 462 A LAN DDR oder SDRAM*m1152

Elitegroup ECS K7S5A PRO Rev 5.0 Mainboard + Blende Sockel 462/A LAN Audio DDR oder SDRAM

Technische Daten

CPU

Socket 462 for AMD Athlon™ XP / Athlon™ / Duron™ processors

FSB 266/200 MHz

CHIPSET

SiS® 735 North Bridge & South Bridge

MEMORY

Wahlweise nur DDR-RAM oder SD-RAM seperat nutzbar!

2 x 184-pin DDR DIMM socket, support DDR266/200 2.5V DDR SDRAM

2 x 168-pin SDRAM DIMM socket, support PC133/100 3.3V SDRAM

Maximum RAM    1GB

EXPANSION SLOTS

1 x AGP 4X slot

5 x PCI slots

1 x AMR slot

STORAGE by SiS® 735

4 x  Ultra DMA100/66 devices

AUDIO

C-Media CMI9738 4-channel audio CODEC

Compliant with AC'97 2.2 specification

LAN

Realtek® RTL8201BL 10/100 Mbps Fast Ethernet Controller

REAR PANEL I/O

1 x PS/2 keyboard connector

1 x PS/2 mouse connector

4 x USB 2.0 ports (by VIA® VT6202)

1 x RJ45 LAN connector

1 x Parallel port (LPT)

1 x Serial port (COM1)

1 x Audio ports (Line-In, Line-Out, Mic-In)

INTERNAL I/O CONNECTORS & HEADERS

1 x 20-pin ATX Power Supply Connector

1 x FDD connector supports 360K~2.88MB FDD

2 x IDE connectors

1 x IrDA for SIR header

1 x Speaker header

3 x USB 1.1 header support additional 6 USB ports

1 x Front panel header

1 x Front panel audio header

1 x CD_IN1 header

1 x CD_IN2 header

1 x 3-Pin CPU FAN connector

1 x 3-Pin SYS FAN connector

1 x WOL connector

1 x Clear CMOS Jumper

SYSTEM BIOS

AMI BIOS with 2Mb Flash ROM

Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI

Supports ACPI revision 1.0 specification

FORM FACTOR

ATX Size; ca. 305mm x 220mm

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
