Gigabyte 7VM400M-RZ Rev 1.0 Mainboard +Blende Sockel A 462 AGP 8X VGA LAN* m1021

Gigabyte 7VM400M-RZ Rev 1.0 Mainboard + Blende Sockel A 462 AGP 8X VGA LAN

Technische Daten

Prozessor

Socket A for AMD Athlon™ XP / Athlon™ /Duron™ processor

Front Side Bus

333/266/200 MHz FSB

Chipsatz

VIA KM400 Northbridge + VIA 8235 Southbridge + ITE IT8705F Super I/O

Arbeitsspeicher

DDR333(PC2700) / DDR266(PC2100) / DDR200(PC1600) - 184pin DDR1

Up to max. 2GB by 2 DIMM slots

Erweiterungssteckplätze

1 x AGP slot (8X/4X-AGP 3.0 compliant)

3 x PCI slots (PCI 2.2 compliant)

VGA

UniChrome™ graphics engine

Audio

VIA 1617 High Quality 6-channel AC’97 audio codec chip

LAN

VIA 6103 Ethernet 10/100Mb LAN PHY

Interne I/O Anschlüsse

1 x FDD port

2 x UDMA ATA133/100/66 Bus Master IDE ports

2 x USB 2.0 connectors (supports 4 additional ports)

1 x Game / Midi connector

1 x Com B connector

1 x 3-pin CPU FAN connector

1 x 3-pin SYSTEM FAN connector

1 x CLR_CMOS Jumper

1 x Chassis Intrusion connector

1 x Front Panel connector

1 x Power LED connector

1 x SPDIF Out connector

1 x CD_In connector

1 x Front Audio Panel connector

1 x Surround Center connector

1 x JP1 FSB Jumper

1 x 20-pin ATX Mainboard Power connector

Rückseite I/O Panel

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x VGA port

1 x RJ45 port

2 x USB 2.0 ports

1 x COM port

1 x LPT

Audio (1 x Line-in / 1 x Line-out / 1 x Mic) ports

H/W Überwachung

System health status auto-detect and report by BIOS

H/W detect and report CPU voltage

Support auto temperature detect thermal shutdown function

BIOS

2Mbit BIOS ROM

Form Factor

m-ATX; ca. 24.4 x 23.3 cm

CPU/AGP/DIMM Einstellungen

CPU FSB adjustable via BIOS (1MHz-linear)

Andere Funktionen

@BIOS; Q-Flash

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

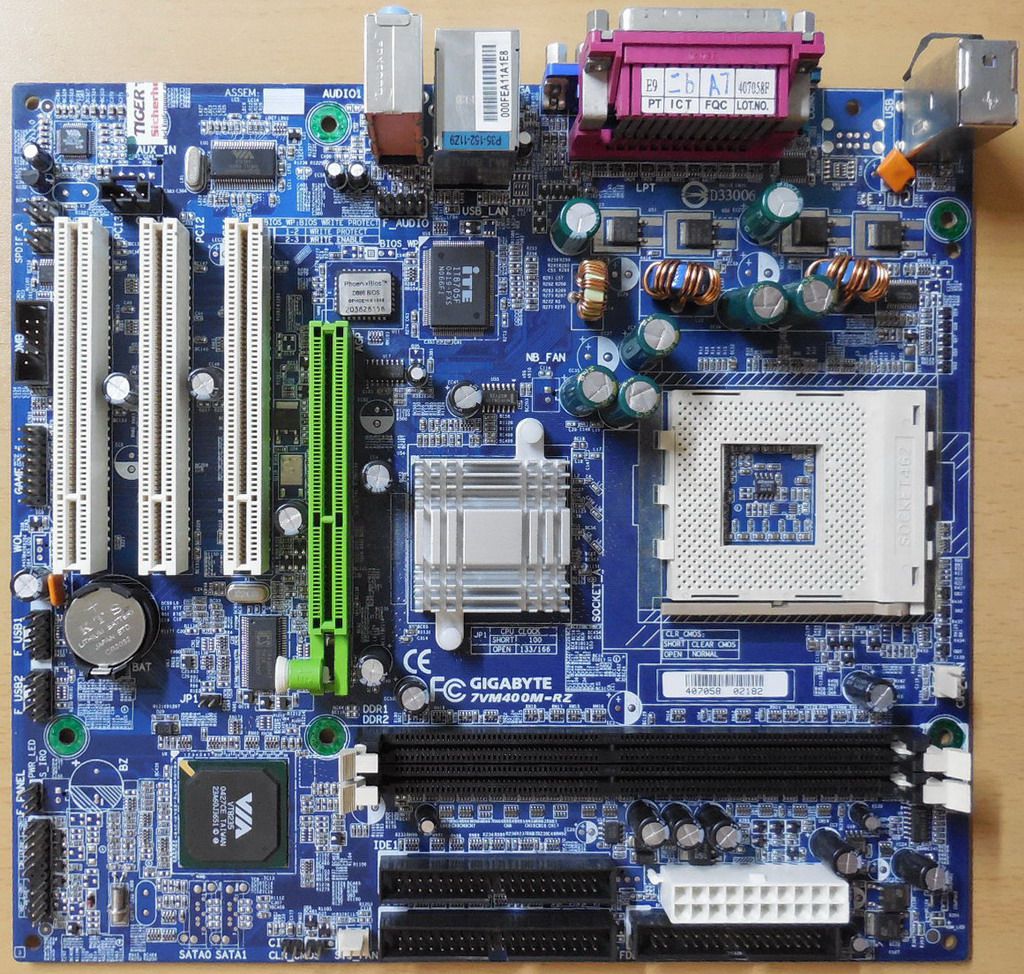

Abbildung ähnlich
