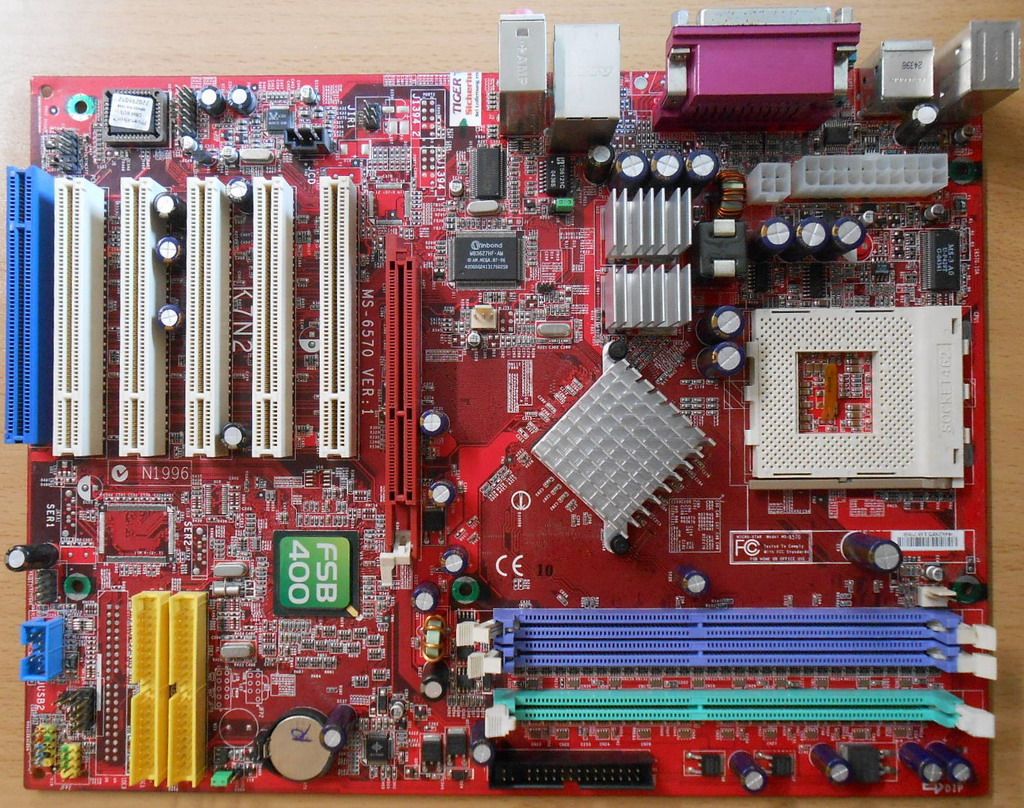

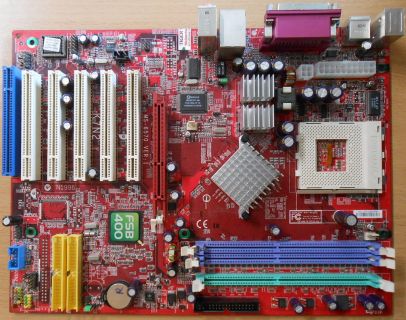

MSI MS-6570 Ver1 K7N2 Mainboard +Blende Sockel A 462 FSB 400 DDR AGP8X PCI* m282

MSI MS-6570 Ver1 K7N2 Mainboard + Blende

Sockel A 462 FSB 400 DDR AGP8X PCI

Technische Daten

CPU

Supports Socket A (Socket-462) for AMD Athlon/Athlon XP /Duron processors @ FSB 100/133/166/200

Supports 600MHz up to Athlon XP 2700+ processor or higher

Chipset

NVIDIA nForce2 SPP

Supports DDR200/266/333/400

Supports external AGP 4X/8X

NVIDIA nForce2 MCP2

AC97 Interface supporting up to two concurrent codecs

Ultra ATA-133 for the fastest hard disk throughput

USB 2.0 EHCI/1.1 OHCI controller

Main Memory

Supports six memory banks using three 184-pin DDR DIMMs

Supports up to 3GB PC3200/2700/2100/1600 DDR SDRAMs

Supports both 64-bit and 128-bit DDR SDRAM

Slots

One AGP (Accelerated Graphics Port) 1.5V 4X/8X slot

Five 32-bit PCI bus slots (support 3.3v/5v PCI bus interface)

One ACR (Advanced Communication Riser) slot

On-Board IDE

An IDE controller on the MCP2 chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes. Can connect up to four IDE devices

On-Board Peripherals

On-Board Peripherals include:

- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes

- 1 serial port

- 1 parallel port supports SPP/EPP/ECP mode

- 3 audio ports in vertical

- 1 D-Bracket2 pinheader

- 1 S-Bracket pinheader

- 1 Bluetooth pinheader (Optional)

- 6 USB ports (Rear * 4/ Front * 2)

- On-Board 10/100 Ethernet (Optional)

Audio

Realtek ALC650 6-channel audio

BIOS

The mainboard BIOS provides “Plug & Play” BIOS which detects the peripheral devices and expansion cards of the board automatically.

The mainboard provides a Desktop Management Interface (DMI) function which records your mainboard specifications.

Mounting and Dimension

ATX Form Factor: 30.5 cm (L) x 23 cm (W)

6 mounting holes

Others

Suspend to RAM/Disk (S3/S4)

PC2001 compliant

Support PCI 2.2//WOR

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
