Shuttle XPC SS40G FS40V1.2 Mainboard +Blende Sockel A 462 VGA LAN FireWire* m275

Shuttle XPC SS40G FS40V1.2 Mainboard + Blende

Sockel A 462 VGA LAN FireWire

Technische Daten

Chipset

Northbridge: SiS740, Southbridge: SiS961

SiS740 Chipset for 100/133MHz clock frequency

Socket A CPU Support

supports the following 462Pin socket A processors:

AMD Athlon XP with 266MHz FSB

AMD Duron (Morgan-core, from 1GHz on) with 200MHz FSB successfully tested with: Duron up to 1,3GHz / Athlon up to 1,4GHz / Athlon XP up to 2600+

Automatic adjustment of CPU Vcore-voltage

Burn Proof CPU protection only for AthlonXP  (Automatic power off if overheated)

Integrated 3D-Graphics-Accelerator

Integrated SiS315-graphics accelerator in chipset

Shared Memory in BIOS adjustable up to 64MB capacity with TV-out (S-Video and AV combined)

Expansion Slots

2 x 32 Bit PCI (both Busmasters)

Onboard IDE Controller

2-Channel Enhanced PCI IDE for up to 4 IDE devices; supports up to UltraDMA/100

Integrated Netzwork-Function

Realtek RTL8100B Fast Ethernet Controller with MAC Interface; supports 10/100MBit with RJ45-connector on the backpanel

Hardware-monitoring

for voltage, temperature and fan

Backpanel (Connectors on the rear of the mainboards)

1 x VGA

1 x PS/2-Mouse

1 x PS/2-Keyboard

2 x USB

1 x RJ45 Network connector

2 x Firewire IEEE1394

2 x Seriell (16550 compatible, Fifo)

1 x Line-out

1 x Line-in (in Multichannel-operation used for rear speakers)

1 x Bass/Center-out

Frontpanel (Anschlüsse zur Vorderseite des Gehäuses)

1 x Firewire IEEE1394 (zwei weitere im Backpanel)

2 x USB

Audio: Mikrofon, Line-out

Onboard (more connectors on the mainboard)

1 x Floppy drive (for 2 floppy drives up to 2,88 MB)

1 x Audio-in (CD-in)

3 x 12V-connectors for fan

20-pole ATX-power supply connector

Memory

2 x 184-Pin DIMM-socket for up to 2 GB memory DDR SDRAM with 2,5V

PC2100 (DDR266) or PC1600 (DDR200) with 64, 128, 256, 512 and 1024 MB

Soundfunction

Multi-Channel Hardware Audio Controller

supports 5.1 speaker, C3DX positional audio with 6 speakers

HRTF-3D positional audio, supports Direct Sound 3D and A3D-Interface

Legacy SBPRO compatible

Power Management

ACPI (Advanced Configuration and Power Interface)

supports power saving modes Modi S1 (Snoop), S3 (Suspend to RAM) and S5 (Soft-off)

Power on via modem (Ring Power up), Timer (Datum/Zeit), PCI-Card (PCIPME Power up)

On/Off-button with two functions: Suspend-mode / soft-off

BIOS

2 MBit Flash EPROM mit AWARD Bios; supports Green PC and Desktop Managment Interface (DMI)

Form Factor

FlexATX: 25,4 x 18,5 cm

Conformity

This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU-guidelines:

- EMV-guideline 89/336/EWG electromagnetic tolerance

- LVD-guideline 73/23/EWG use of electric devices within certain voltage-limits

Lieferumfang

Das Mainboard inkl. Blende ohne weiteres Zubehör * gebraucht *

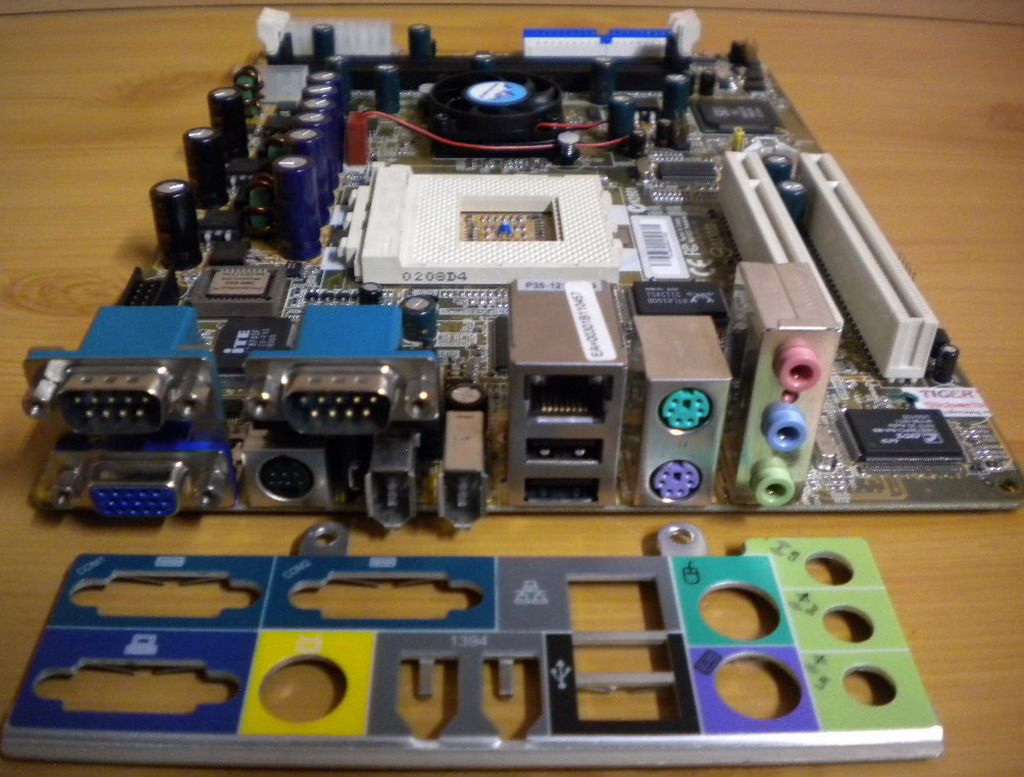

Abbildung ähnlich
