ASRock ALiveNF6G-DVI Rev 2.02 Mainboard +Blende Sockel AM2 VGA PCIe SATA2* m866
Für eine größere Ansicht klicken Sie auf das Vorschaubild
ASRock ALiveNF6G-DVI Rev 2.02 Mainboard +Blende Sockel AM2 VGA PCIe SATA2* m866

ASRock ALiveNF6G-DVI Rev 2.02 Mainboard +Blende Sockel AM2 VGA PCIe SATA2* m866

Art.Nr: m866
Lieferzeit: 3 Tage
Lagerbestand: 0
Artikelzustand: gebraucht

Dieser Artikel ist momentan nicht verfügbar
34,45 EUR
inkl. Mwst. Differenzbesteuert nach §25a UStG
gegebenenfalls plus Versandkosten


Produktbeschreibung

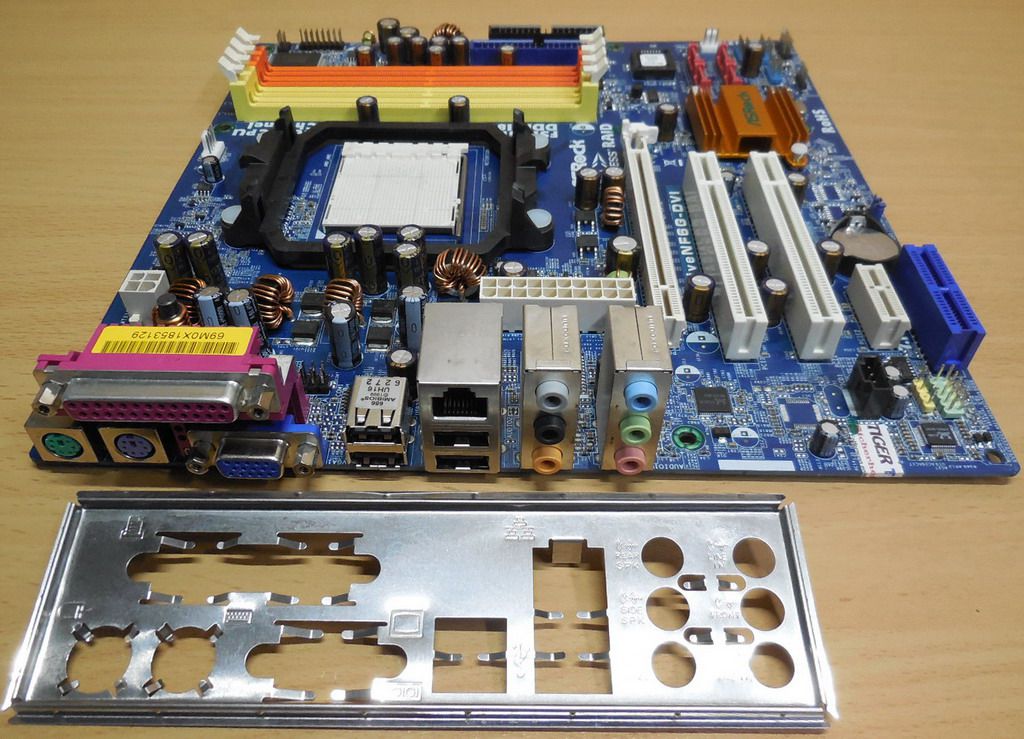

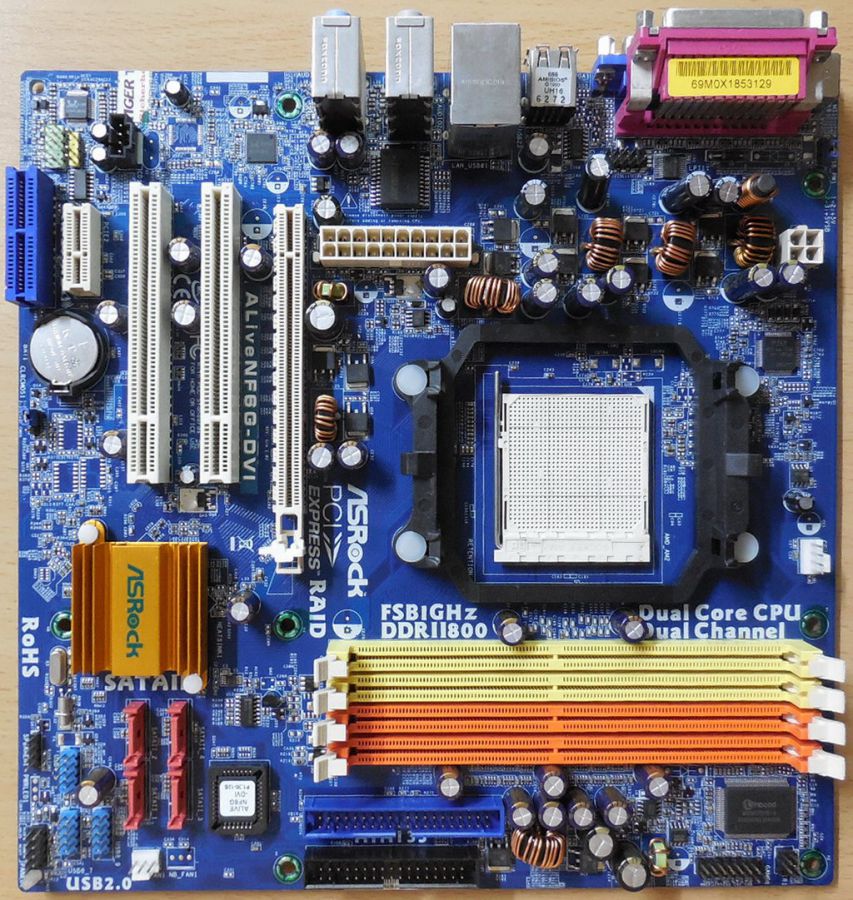

ASRock ALiveNF6G-DVI Rev 2.02 Mainboard + Blende Sockel AM2 VGA PCIe SATA2

Technische Daten

CPU

Socket AM2 for AMD Athlon™ 64FX / 64X2 / 64 and Sempron processors

AMD LIVE!™ Ready

Supports AMD's Cool 'n' Quiet Technology

FSB 1000MHz (2.0 GT/s)

Supports Untied Overclocking Technology

Supports Hyper-Transport Technology

Chipset

NVIDIA® GeForce 6100 / nForce 430 or GeForce 6150SE / nForce 430

Memory

Dual Channel DDR2 memory technology

4 x DDR2 DIMM slots

Supports DDR2 800/667/533 non-ECC, un-buffered memory

Max. capacity of system memory: 8GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.

BIOS

4Mb AMI BIOS

AMI Legal BIOS

Supports "Plug and Play"

ACPI 1.1 Compliance Wake Up Events

Supports Jumperfree

SMBIOS 2.3.1 Support

Graphics

Integrated NVIDIA® GeForce6 Series

DX9.0 VGA, Pixel Shader 3.0

Max. shared memory 256MB

Two graphics output options: Support D-Sub and DVI-D ports with DVI Graphics-SI Card by independent display controllers

Audio

7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)

LAN

Gigabit LAN 10/100/1000 Mb/s

Giga PHY RTL8211B

Supports Wake-On-LAN

Supports PXE

Slots

1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots

1 x HDMR slot

Connector

4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ and Hot Plug functions

1 x ATA133 IDE connector (supports 2 x IDE devices)

1 x Floppy connector

1 x IR header

1 x Game header

1 x COM port header

1 x HDMI_SPDIF header

CPU/Chassis FAN connector

20 pin ATX power connector

4 pin 12V power connector

CD in header

Front panel audio connector

4 x USB 2.0 headers (support 6 USB 2.0 ports)

Rear Panel I/O

HD 8CH I/O

1 x PS/2 Mouse Port

1 x PS/2 Keyboard Port

1 x VGA/D-Sub Port

1 x Parallel Port (ECP/EPP support)

4 x Ready-to-Use USB 2.0 Ports

1 x RJ-45 Port

HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Unique Feature

Hybrid Booster:

CPU Frequency Stepless Control

ASRock U-COP

Boot Failure Guard (B.F.G.)

ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%

Hardware Monitor

CPU Internal Temperature Sensing

CPU Ambient Temperature Sensing

Chassis Temperature Sensing

CPU Fan Tachometer

Chassis Fan Tachometer

CPU Quiet Fan

Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Form Factor

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

OS

Microsoft® Windows® 2000 / XP / XP Media Center / XP 64-bit / Vista™ / Vista™ 64-bit / 7 / 8 / 10 compliant

Certifications

FCC, CE

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
