Produktbeschreibung

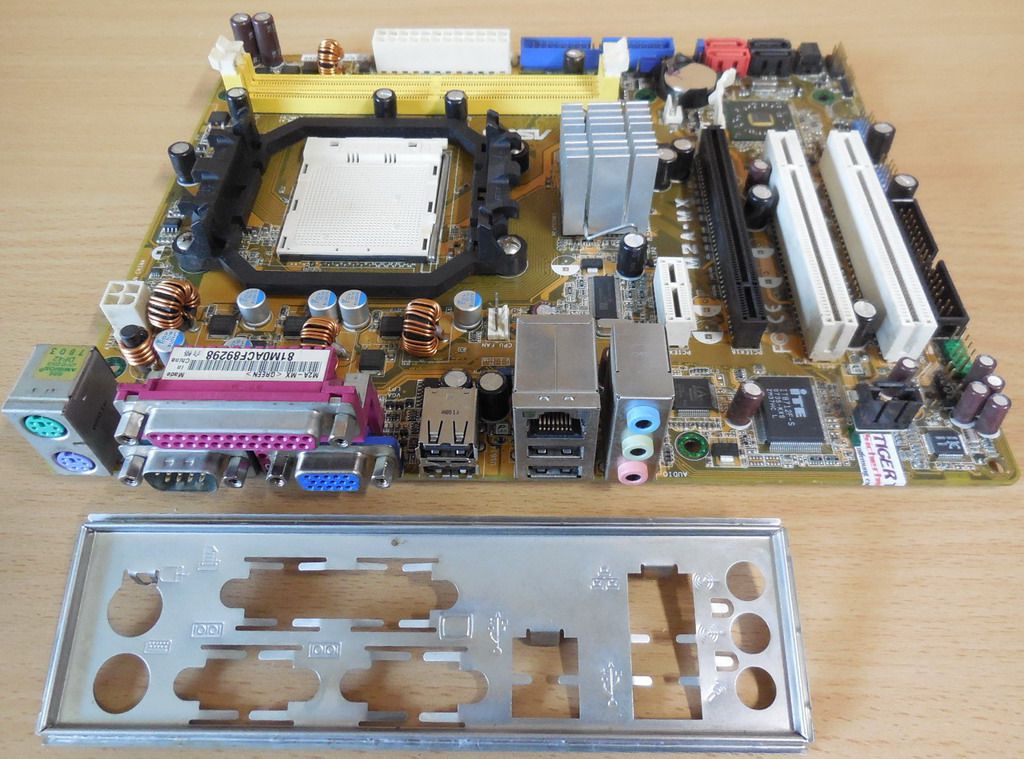

ASUS M2A-MX Rev 1.03G Mainboard + Blende Sockel AM2+ VGA GbE LAN Audio PCIe
Technische Daten
CPU
AMD Socket AM2 Athlon64 / Athlon64 FX / Athlon64 X2 / Sempron Processors
Compatible with AMD AM2+ CPU
AMD Cool 'n' Quiet™ Technology
AMD 64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live!™ Ready
Chipset
AMD 690V / SB600
Front Side Bus
2000 / 1600 MT/s
Memory
Dual channel memory architecture
2 x 240-pin DIMM, support max. 4GB DDR2 1066/800/667/533 Non-ECC,un-buffered memory
*DDR2 1066 is supported by AM2+ CPU only
*When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
VGA
Integrated Radeon X1200 VPU
High Definition Video Processing with max. resolutions to 2048 x 1536 @ 32 bpp
Expansion Slots
1 x PCI Express x16
1 x PCI Express x1
2 x PCI
Storage
1 x UltraDMA 133/100/66
4 x Serial ATA 3Gb/s supporting RAID 0, RAID 1, RAID 0+1
LAN
Atheros PCIE Gigabit LAN
Audio
ALC662 6 -Channel CODEC
Support Jack-Detect and S/PDIF out interface
USB
10 x USB2.0 ports
Special Features
ASUS MyLogo; ASUS EZ Flash; ASUS CrashFree BIOS 2; ASUS C.P.R.(CPU Parameter Recall); ASUS Q-Fan
Back Panel I/O Ports
1 x Parallel
1 x PS/2 Mouse
1 x PS/2 Keyboard
1 x COM
1 x VGA
1 x RJ45
4 x USB 2.0/1.1
6-channel Audio I/O
Internal I/O Connectors
3 x USB 2.0 connector supports additional 6 USB 2.0 ports
1 x Front Audio Panel connector
1 x CD/AUX audio inconnector
1 x S/PDIF output connector
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Chassis Intrusion connector
1 x Speaker connector
1 x System Panel connector
24-pin EATX power connector
4-pin ATX 12V Power connector
BIOS
8Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SMBIOS 2.5, ACPI v3.0, Green
Manageability
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
Form Factor
uATX Form Factor, 9.6 inch x 7.6 inch (24.5 cm x 19.4 cm)
Lieferumfang
Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
