ASUS M2A-VM Rev 1.01G Mainboard +Blende Sockel AM2+ VGA DVI GLAN Audio PCIe*m729

ASUS M2A-VM Rev 1.01G Mainboard +Blende Sockel AM2+ VGA DVI GLAN Audio PCIe*m729
Bild vergrößern

27,95 EUR

inkl. Mwst. Differenzbesteuert nach §25a UStG gegebenfalls plus Versandkosten

Lieferzeit: 3 Werktage

Lagerbestand: 0

Art.Nr.: m729
ASUS M2A-VM Rev 1.01G Mainboard +Blende Sockel AM2+ VGA DVI GLAN Audio PCIe*m729


Dieser Artikel ist momentan nicht verfügbar

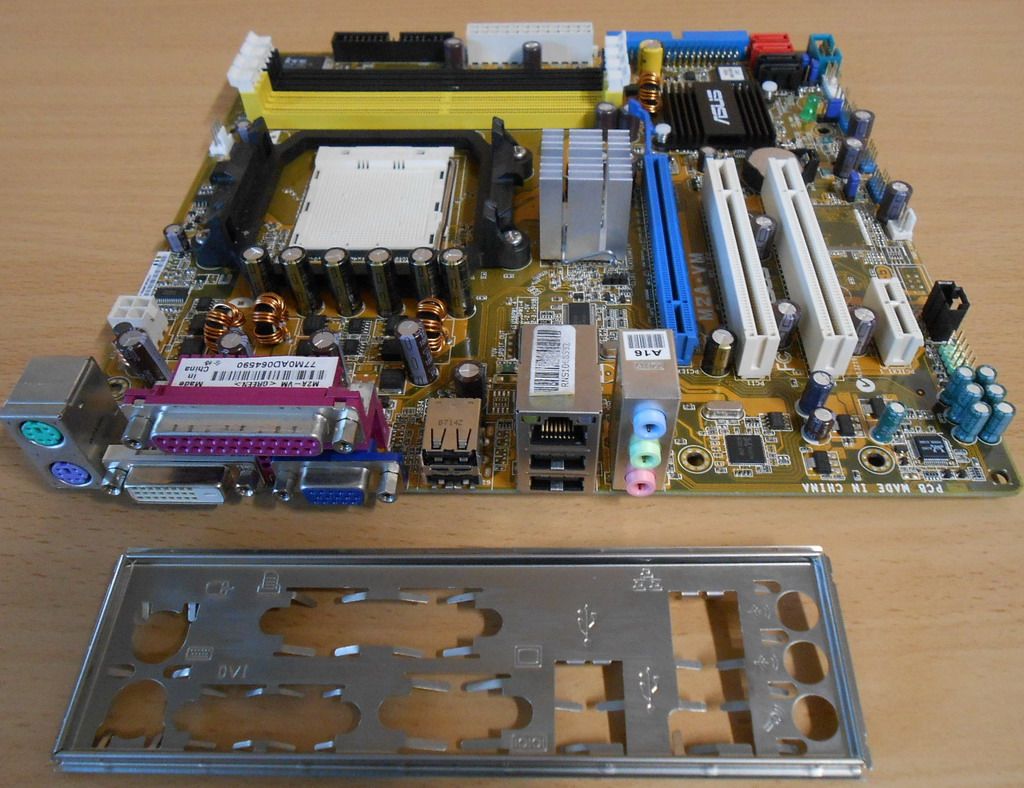

ASUS M2A-VM Rev 1.01G Mainboard + Blende

Sockel AM2 AM2+ VGA DVI GLAN Audio PCI-e

Technische Daten

CPU

Support AMD® Socket AM2+/ AM2 Phenom FX(2000MT/s)/Phenom(2000MT/s)/ Athlon 64 X2 / Athlon 64 FX / Athlon 64/ Sempron

AMD Cool 'n' Quiet™ Technology

AMD64 architecture enables simultaneous 32-bit and 64-bit computing

AMD Live!™ Ready

Chipset

AMD 690G

ATI SB600

Front Side Bus

2000 / 1600 MT/s

Memory

Dual channel memory architecture

4 x 240-pin DIMM, support max. 8GB DDR2 800/667/533 ECC and Non-ECC,un-buffered memory

*When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

VGA

Integrated ATI Radeon X1250-based graphics

Maximum shared memory of 1024 MB

Supports DVI-D with max. resolution 2560x1600 (@ 60Hz)

(It may not display 1080p smoothly when playing HD DVD and Blu-ray Disc due to current version player limit)

Supports RGB with max. resolution 2048 x 1536 (@85Hz)

Dual VGA output support:

RGB & DVI

Note: DVI-D can not be converted to output RGB Signal to CRT.

Expansion Slots

1 x PCI Express x16

1 x PCI Express x1

2 x PCI

Storage

1 x UltraDMA 133/100

4 x Serial ATA 3Gb/s supporting RAID 0, RAID 1,RAID10

LAN

PCIe Gb LAN

Audio

ALC883 High Definition Audio 6-channel CODEC

Supports Jack-Sensing, Enumeration, and Jack-Retasking

Supports S/PDIF out interface

Overclocking Features

SFS (Stepless Frequency Selection) from 200MHz to 400MHz at 1MHz increment

Adjustable CPU Voltage at 0.0125V increment

ASUS C.P.R.(CPU Parameter Recall)

USB

10 USB2.0/1.1 ports

Special Features

ASUS MyLogo2

ASUS CrashFreeBIOS3

ASUS EZ Flash2

ASUS Q-Fan

ASUS O.C Profile

ASUS Music Alarm

Back Panel I/O Ports

1 x Parallel

1 x PS/2 Mouse

1 x PS/2 Keyboard

1 x DVI

1 x VGA

1 x RJ45

4 x USB 2.0/1.1

6-channel Audio I/O

Internal I/O Connectors

3 x USB 2.0 connector supports additional 6 USB 2.0 ports

High Definition Front panel audio connector

COM port connector

CD audio-in connector

1 x S/PDIF output connector

CPU / Chassis/ Power Fan connectors

Chassis Intrusion connector

24-pin EATX power connector

4-pin ATX 12V Power connector

BIOS

8Mb Flash ROM, Award BIOS, PnP, DMI2.0, WfM2.0, SMBIOS 2.3

Manageability

WfM 2.0, DMI 2.0, WOL by PME, WOR by PXE, WOR by PME

O/S Compatibility

Windows XP/Vista

Form Factor

uATX Form Factor, 9.6" x 9.0" (24.5cm x 22.9cm)

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
