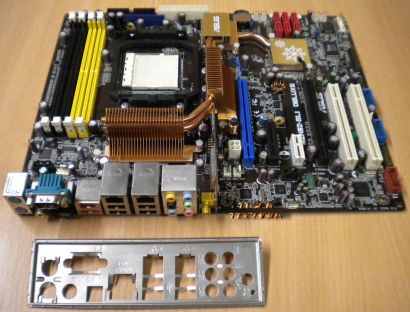

ASUS M2N32-SLI Deluxe WiFi Rev 1.04G AM2 Mainboard + Blende* m151

M2N32-SLI Deluxe, WiFi Wireless Edition Rev 1.04G

AM2 Mainboard mit Blende

CPU

Support AMD® Socket AM2+/ AM2 Phenom FX(2000MT/s)/Phenom(2000MT/s)/ Athlon 64 X2 / Athlon 64 FX / Athlon 64/ Sempron
AMD Cool 'n' Quiet™ Technology
AMD64 architecture enables simultaneous 32-bit and 64-bit computing
AMD Live!™ Ready

Chipset

NVIDIA nForce® 590 SLI™ MCP
NVIDIA LinkBoost™ Technology

Front Side Bus    2000/1600 MT/s

Memory

Dual channel memory architecture
4 x DIMM, max. 8GB, DDR2-800/667/533, ECC and non-ECC, un-buffered memory

Expansion Slots

2 x PCI Express x16 slot with NVIDIA® SLI™ technology support, at full x16, x16 speed
1 x PCI Express x4
1 x PCI Express x1
2 x PCI 2.2

Scalable Link Interface (SLI™)

Support two identical NVIDIA SLI-Ready graphics cards (both at x16 mode)
ASUS two-slot thermal design
ASUS PEG Link

Storage

NVIDIA nForce® 590 SLI™ MCP supports:
1 x Ultra DMA 133/100/66/33
6 x Serial ATA 3.0Gb/s
NVIDIA MediaShield™ RAID supports RAID 0, 1, 0+1, 5 and JBOD span cross Serial ATA drives
Silicon Image® 3132 SATA controller supports
1 x Internal Serial ATA 3.0Gb/s
1 x External Serial ATA 3.0Gb/s port on back I/O (SATA On-the-Go)
Support RAID 0, 1, and JBOD

LAN

Dual Gigabit LAN controllers support NVIDIA DualNet® technology
NVIDIA nForce® 590 SLI™ MCP built-in dual Gigabit MAC with external Marvell PHY
Support Teaming and fail-over functions
Support TCP/IP Acceleration

Audio

ADI 1988B 8-channel High Definition Audio CODEC
Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking
Coaxial, Optical S/PDIF out on back I/O port
Support DTS® Connect function

Wireless LAN    WiFi-AP Solo™ USB wireless module supports IEEE802.11b/g

IEEE 1394a    TI 1394 controller supports 2 x 1394a ports

USB    Wireless Edition: max. 8 USB2.0/1.1 ports

ASUS Unique Features   AI Nap   AI Gear
Advanced Thermal Design
ASUS Fanless Design: Heat-pipe Thermal solution
Stack Cool2

ASUS 8-Phase Power Design

ASUS Crystal Sound
ASUS Array Mic
Noise Filter

WiFi-AP Solo™ (Wireless Edition only)
54 Mbps IEEE 802.11g and backwards compatible with 11 Mbps IEEE 802.11b
Software Access point mode
Station mode : Infrastruceure mode and Ad-Hoc mode

Overclocking Features

Intelligent overclocking tools:
ASUS AI NOS™ (Non-delay Overclocking System)
AI Overclocking (intelligent CPU frequency tuner)
AI Clock Skew
ASUS PEG Link - automatically performance tuning for graphics cards
ASUS O.C. Profile: overclocking configuration-sharing tool

Precision Tweaker:
vDIMM: 25-step DRAM voltage control
vCore: Adjustable CPU voltage at 0.0125V increment
PCIe x16 Frequency: allowing PCIe x16 frequency from 100MHz up to 200MHz at 1MHz increment
SFS (Stepless Frequency Selection): allowing FSB tuning from 200MHz up to 400MHz at 1MHz increment

Overclocking Protection:
ASUS C.P.R.(CPU Parameter Recall)
ASUS AI Booster Utility
Adjustable FSB/DDR2 ratio. Fixed PCI/PCIe frequencies.

Special Features

ASUS EZ DIY:
Q-Connector
ASUS CrashFree BIOS3
ASUS EZ Flash2
ASUS Music Alarm
ASUS MyLogo3

Back Panel I/O Ports

1 x PS/2 Keyboard port
1 x PS/2 Mouses
1 x Optical + 1 x Coaxial S/PDIF Output
1 x External SATA
2 x LAN (RJ45) port
4 x USB 2.0/1.1 ports
1 x IEEE 1394a port
1 x WiFi-g™ antenna jack (Wireless Edition only)
1 x COM port
8-channel Audio ports

Internal I/O Connectors

Wireless Edition: 2 x USB 2.0 connectors supports additional 4 USB 2.0 ports
1 x Floppy disk drive connector
1 x IDE connector for two devices
7 x SATA connectors
1 x CPU / 4 x Chassis / 1x Chipset / 1 x Power Fan connectors
1 x IEEE1394a connector
1 x Parallel connector
1 x S/PDIF output connector
1 x ADH connector
Chassis Intrusion connector
Front Panel Audio connector
CD audio in
24-pin ATX Power connector
4-pin ATX 12V Power connector
System panel connector

BIOS    8Mb Flash ROM, AWARD BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3

Manageability   WOL by PME, WOR by PME, Chasis Intrusion, PXE

Accessories

1 x SLI bridge
1 x ASUS Array Mic
1 x ASUS Optional Fan
1 x ASUS Q-Connector Kit (USB, 1394, system panel; Retail version only)
1 x wireless antenna (Wireless Edition only)
1 x UltraDMA 133/100/66 cable
1 x Floppy disk drive cable
6 x SATA cables
3 x SATA power cable for 6 devices
1 x 2-port USB2.0 module
1 x IEEE1394a module
1 x I/O Shield
User's manual

Support Disc

Drivers
ASUS WiFi-AP Solo™ Wizard (Wireless Edition only)
ASUS PC Probe II
ASUS Update
ASUS AI Booster
NVIDIA MediaShield™ RAID
Anti-virus software (OEM version)

Form Factor    ATX Form Factor, 12"x 9.6"(30.5cm x 24.5cm)

Manual:     http://static.highspeedbackbone.net/pdf/Asus_M2N-SLI-DELUXE_Manual.pdf

Lieferumfang

Netzteil  - ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
