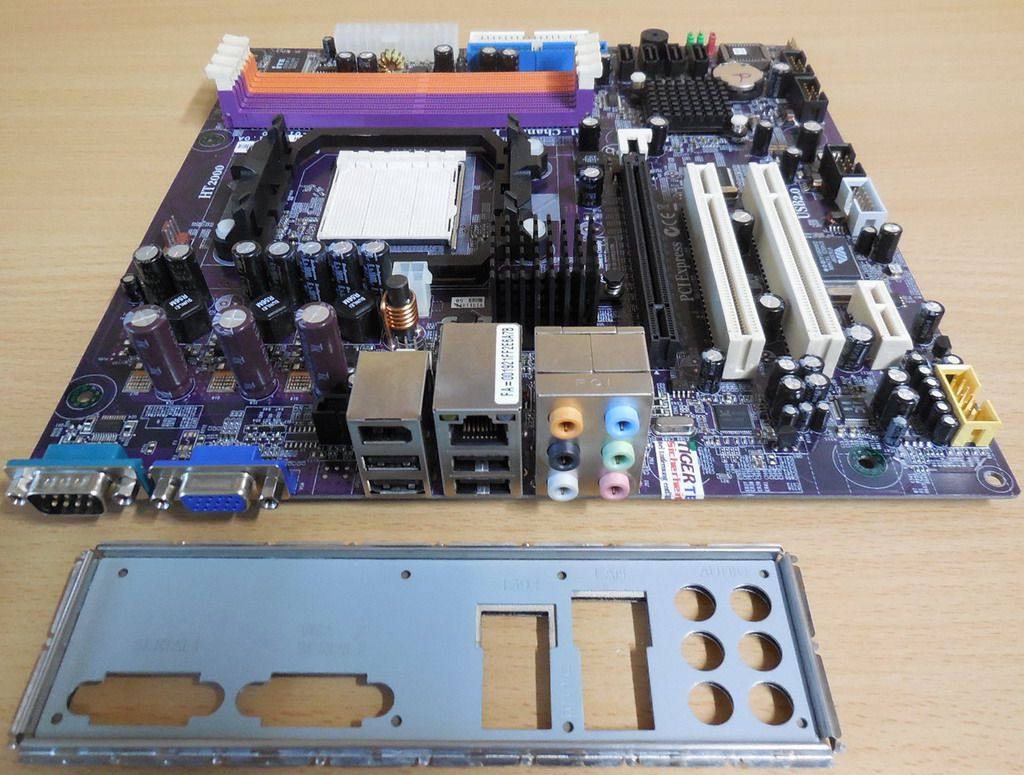

ECS Elitegroup AMD690VM-FMH Ver1.0A Mainboard+Blende Sockel AM2 SATA DDR2* m901

ECS Elitegroup AMD690VM-FMH Ver 1.0A Mainboard + Blende Sockel AM2 PCIe SATA DDR2

Technische Daten

CPU

Supports Socket AM2 AMD Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon 64 / Sempron processors

Supports up to 2000 MT/s HyperTransportTM (HT) interface speeds

HyperTransportTM Technology is a point-to-point link between two devices, it enables integrated circuits to exchange information at much higher speeds than currently available interconnect technologies.

CHIPSET

AMD 690V Northbridge (NB) + SB600 Southbridge (SB)

GRAPHICS

Full support for 3D primitive, Direct3D texture lighting, and OpenGL format for Indirect Vertices in Vertex Walker

Full DirectX 9.0 support (Vertex Shader version 2.0 and Pixel Shader version 2.0)

MEMORY

DDR2 800/667/533/400 DDR SDRAM with Dual Channel supported

Accommodates four unbuffered DIMMs, up to 32 GB maximum memory size

EXPANSION SLOT

1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots

STORAGE

2 x Ultra DMA133/100/66 devices

4 x Serial ATA 3.0Gb/s devices

AUDIO

7.1 + 2 Channel High Definition Audio Codec

All DACs support 192K/96K/48K/44.1KHz DAC sample rate

Meets Microsoft WHQL/WLP 3.0 audio requirements

Direct Sound 3DTM compatible

LAN

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC

1394a FireWire

Compliant with single chip host controller for IEEE Std 1394-1995 and IEEE 1394a-2000

Integrated 400 Mb/s 2-Port PHY

3.3V Power Supply with 5V Tolerant Inputs

REAR PANEL I/O

1 x IEEE1394 Firewire port

1 x Serial port (COM1)

1 x VGA port

4 x USB ports

1 x RJ45 LAN connector

Audio jacks for microphone, line-in and 8-ch High Definition Audio output

INTERNAL I/O CONNECTORS & HEADERS

24-pin ATX Power Supply connector

4-pin ATX 12V connector

1 x FDD connector

1 x IDE connector

4 x Serial ATA connectors

3 x USB 2.0 headers support additional 6 USB 2.0 Ports

1 x IEEE1394 header

1 x Clear CMOS Jumper

1 x Bios Recovery Jumper

1 x Skip Password Jumper

1 x SPDIF out header

1 x Front panel switch/LED header

1 x Front audio panel header

1 x System Fan header (4pin)

1 x CPU Fan header (4pin)

Award BIOS

Power management

Wake-up alarms

CPU parameters

CPU and memory timing

FORM FACTOR

Micro-ATX Size

Lieferumfang

Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
