Produktbeschreibung

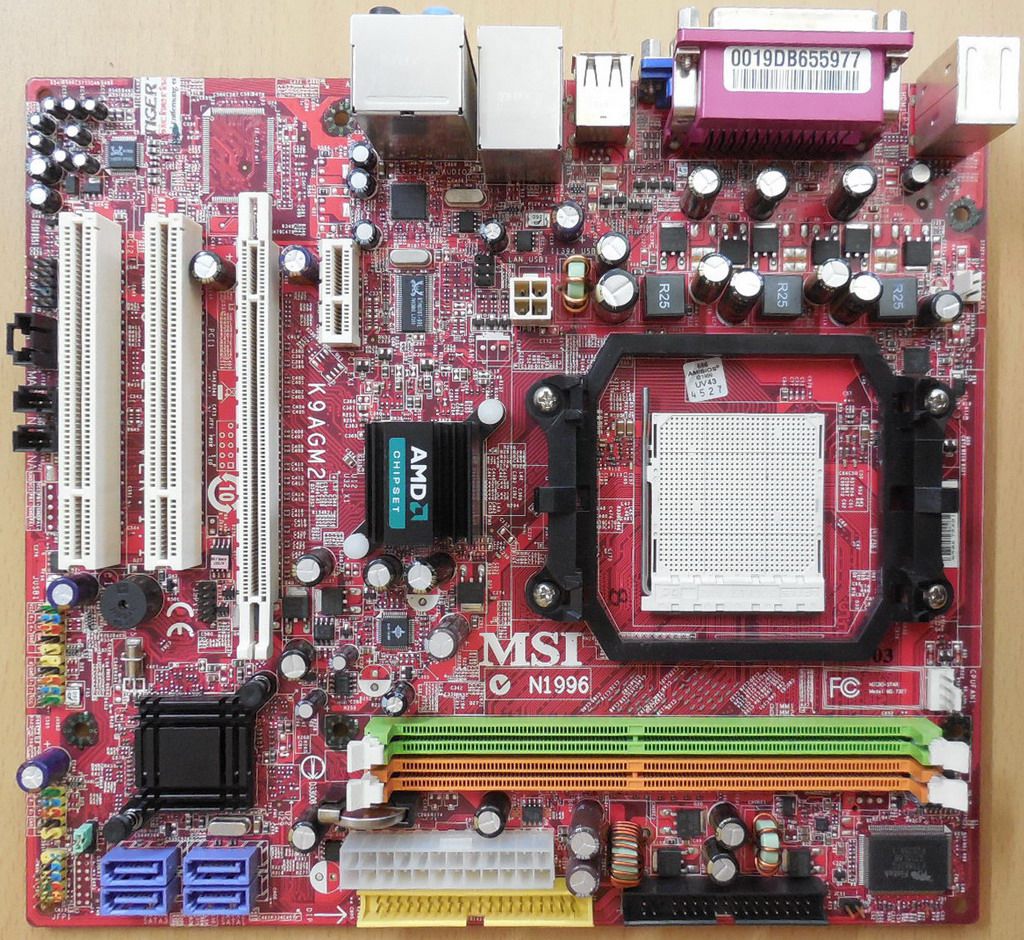

MSI MS-7327 Ver 1.1 K9AGM2 Mainboard + Blende Sockel AM2 PCIe DDR2 GbLAN VGA
Technische Daten
CPU
AMD® Athlon 64 X2, Athlon 64, Athlon FX and Sempron in the Socket AM2 package
Supports 4 pin CPU Fan Pin-Header with Fan Speed Control
Supports up to 5000+ and higher CPU
Please refer to CPU Support for compatible CPU; the above description is for reference only
FSB
HyperTransport supporting speed up to 1GHz (2000MT/s)
Chipset
AMD® 690G and SB600 Chipset
Main Memory
Supports Dual DDR2 400/533/667/800; max. memory size up to 4GB; 2 x DDR2 DIMMs(240pin / 1.8V)
Slots
1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots (Support 3.3V/ 5V PCI bus Interface)
On-Board IDE
One IDE port by AMD® SB600. Can connect up to two IDE devices
Supports Ultra DMA 66/100/133 mode; Supports PIO, Bus Master operation mode
On-Board SATA
4 x SATA II ports by AMD® SB600; Supports storage and data transfers at up to 300 MB/s
SATA II 1~4 supports RAID 0, 1 and 0+1 mode by AMD® SB600
Audio
Chipset integrated by Realtek® ALC888: Flexible 8-channel audio with jack sensing; Compliant with Azalia 1.0 Spec
Gigabit LAN
Supports 10/100/1000 Fast Ethernet by Realtek 8111B
Internal I/O Connectors
1 x ATX 24-pin power connector
1 x ATX 4-pin 12V CPU power connector
1 x 4-pin CPU FAN connector
1 x System FAN connector
1 x Chassis intrusion switch connector
1 x Front panel audio connector
1 x Front panel connector
1 x Clear CMOS jumper
1 x CD-in connector
1 x SPDIF out connector
1 x SPDIF in connector
1 x JSPI1 connector
3 x USB 2.0 connector support additional 6 ports
1 x Floppy disk drive connector (360K, 720K, 1.2M, 1.44M and 2.88Mbytes)
4 x Serial ATA II connectors
1 x ATA133 connector
Back Panel I/O Ports
1 x Parallel port
1 x PS/2 keyboard
1 x PS/2 mouse
4 x USB 2.0 ports
1 x RJ45 LAN jack
1 x Sub-D VGA port
1 x 6 in 1 audio jack
Dimension
24.4cm(L) x 21.5cm(W); Micro-ATX Form Factor
Mounting
6 mounting holes
Lieferumfang

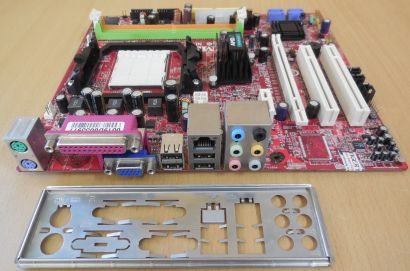

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
