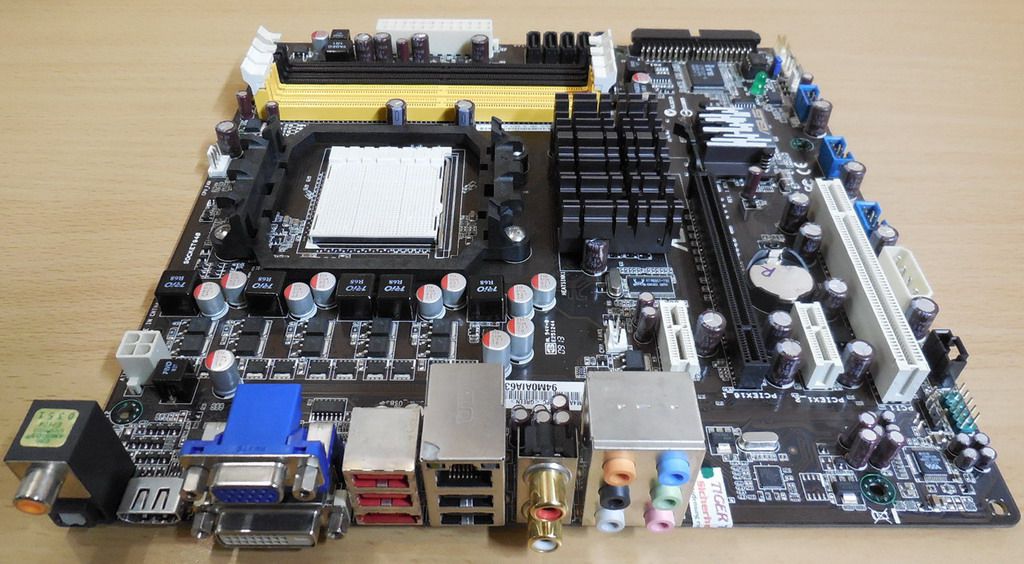

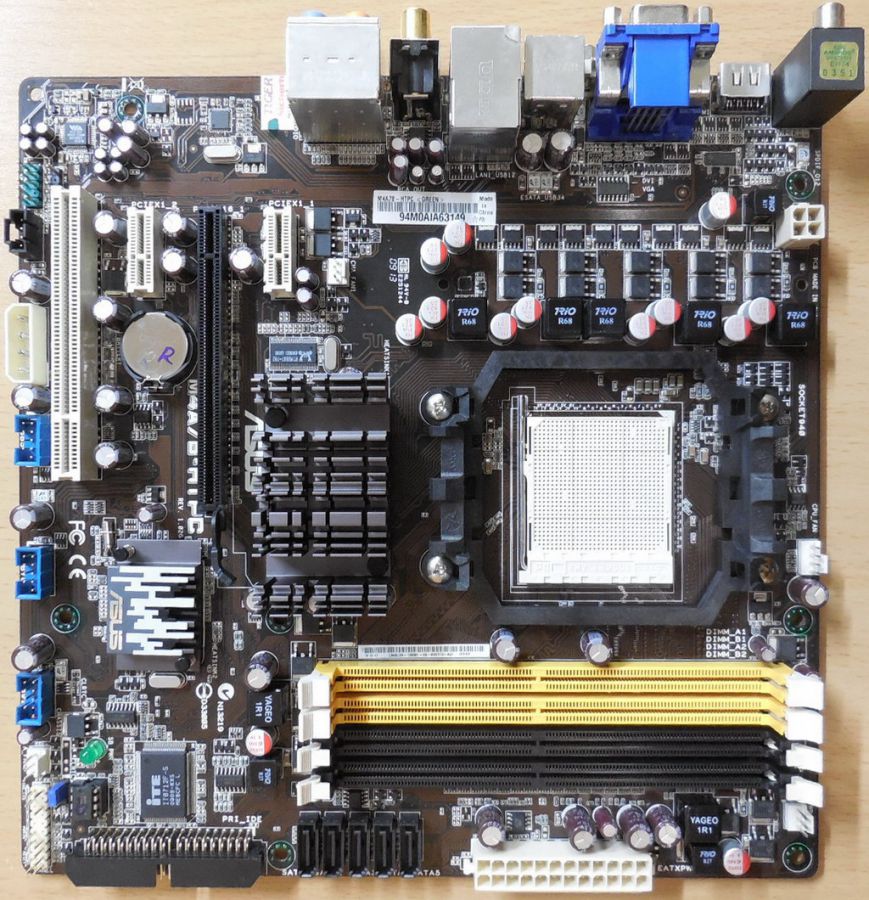

Asus M4A78-HTPC Rev1.02G Mainboard AMD Sockel AM3 AM2+ DDR2 VGA HDMI PCIe* m844
Für eine größere Ansicht klicken Sie auf das Vorschaubild
Asus M4A78-HTPC Rev1.02G Mainboard AMD Sockel AM3 AM2+ DDR2 VGA HDMI PCIe* m844

Asus M4A78-HTPC Rev1.02G Mainboard AMD Sockel AM3 AM2+ DDR2 VGA HDMI PCIe* m844

Art.Nr: m844
Lieferzeit: 3 Tage
Lagerbestand: 0
Artikelzustand: gebraucht

Dieser Artikel ist momentan nicht verfügbar
58,95 EUR
inkl. Mwst. Differenzbesteuert nach §25a UStG
gegebenenfalls plus Versandkosten


Produktbeschreibung

Asus M4A78-HTPC Rev 1.02G Mainboard AMD Sockel AM3 AM2+ DDR2 VGA HDMI PCIe

Technische Daten

CPU

AMD Compatible with Phenom™ II/Athlon™ X4/Athlon™ X3/ Athlon™ X2(AM3 CPU)

Support 45nm CPU Socket AM2+ / AM2 ;Athlon /Phenom X4/Athlon X2/Phenom X3/Sempron Processors

Chipsatz

AMD 780G/SB700

System Bus

5200/Up to for AM3 /AM2+ CPU

2000/1600 MT/s for AM2 CPU

HyperTransport™ 3.0 MT/s

Memory

4 x DIMM, max. 16 GB, DDR2 1066/800/667 ECC,Non-ECC,Un-buffered Memory

Dual Channel memory architecture

*Due to AMD CPU limitation, DDR2 1066 is supported by AM3/AM2+ CPU for one DIMM per channel only.

**Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.

***Refer to the Asus Website or the user manual for the Memory QVL (Qualified Vendors Lidts)

Expansion Slots

1 x PCIe 2.0 x16

2 x PCIe x1

1 x PCI 2.2

VGA

Integrated ATI Radeon™ HD 3200 GPU

- Supports HDMI™ Technology with max. resolution up to 1920 x 1200 (1080P)

- Supports Dual-link DVI with max. resolution up to 2560x1600 @60Hz

- Supports D-Sub with max. resolution up to 2560x1440 @75Hz for 16:9 format

- Hybrid CrossFireX™ Support

- Dual independent displays support with HDMI/DVI and D-Sub

- Supports Microsoft® DirectX 10, OpenGL 2.0, Pixel Shader 4.0

- Hardware Decode Acceleration for H.264, VC-1, and MPEG-2 Max. shared memory: 256 MB

Storage

1 x external SATA 3Gb/s ports

1 x UltraDMA 133/100/66 for up to 2 PATA devices

5 x SATA 3 Gb/s ports 0,1,10 Support RAID

** Due to the Windows XP/ Vista limitation, the RAID array with the total capacity over 2TB cannot be set as a boot disk. A RAID array over 2TB can only be set as a data disk only. SB700 Chipset

LAN

Atheros L1E Gigabit LAN controller featuring AI NET 2

Audio

8 -Channel High Definition Audio CODEC

- Supports Jack-Detection, Multi-Streaming

- Coaxial and Optical S/PDIF Out ports at back I/O

- DTS Surround Sensation Ultra PC

- 2-ch Gold-plated RCA output at back I/O

- ASUS Noise Filtering

USB

10 USB 2.0 ports (6 ports at mid-board, 4 ports at back panel)

ASUS AI Lifestyle Features

ASUS HTPC Features

- ASUS Absolute Pitch Hi-Fi

- ASUS Home Theater Gate

- ASUS Tranquil Mode (for AM3/AM2+ CPU only)

- DTS Surround Sensation Ultra PC

ASUS Quiet Thermal Solution

- ASUS Fanless Design: Soundwave Heat-sink solution

ASUS Express Gate

ASUS EZ DIY

- ASUS Q-Connector

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 2

- ASUS MyLogo 2

Overclocking Features

Precision Tweaker - vCore: Adjustable CPU voltage at 0.0125V increment 0.05V

SFS (Stepless Frequency Selection)

- FSB tuning from 200MHz up to 550MHz 1MHz increment

- GPU tuning from 500MHz up to 999MHz

- PCI Express frequency tuning from 100MHz 150MHz at 1MHz

Overclocking Protection

- ASUS C.P.R.(CPU Parameter Recall)

Back Panel I/O Ports

1 x DVI

1 x D-Sub

1 x Coaxial S/PDIF Out

1 x Optical S/PDIF Out

1 x HDMI

1 x External SATA

4 x USB 2.0/1.1

2-ch RCA Audio output connectors

8 Channel Audio I/O

Internal I/O Connectors

3 x USB connectors (6 ports)

CD audio in

24-pin ATX Power connector

4-pin ATX 12V Power connector

4-pin ATX 12V Audio power connector

1 x IDE connector

5 x SATA connectors

1 x CPU Fan connector

2 x Chassis Fan connector

1 x Power Fan connector

1 x S/PDIF Out connector

1 x Front panel audio connector

System Panel

BIOS

8 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0, ASUS EZ Flash 2

Form Factor

uATX Form Factor

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
