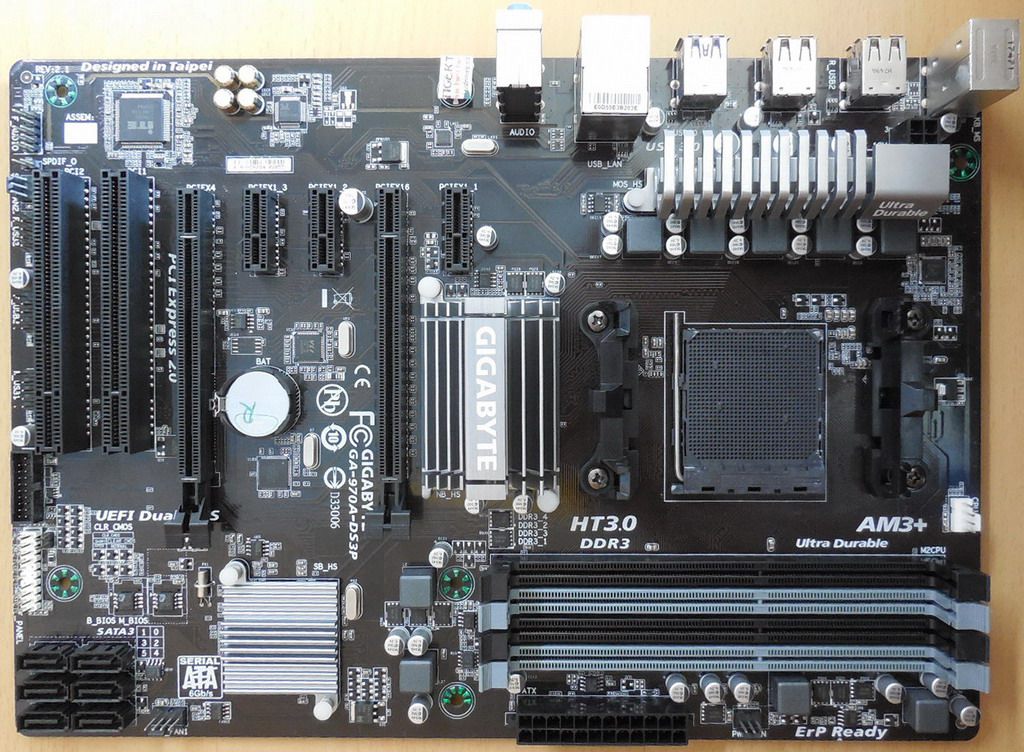

Gigabyte GA-970A-DS3P Rev2.1 Mainboard +Blende AMD 970A Sockel AM3+ DDR3* m1055

Gigabyte GA-970A-DS3P Rev 2.1 Mainboard + Blende AMD 970A Sockel AM3+ PCIe DDR3

Technische Daten

Prozessor

Support for AMD AM3+ FX processors

Support for AMD AM3 Phenom™ II processors / AMD Athlon™ II processors

(Please refer "CPU Support List" for more information.)

Hyper Transport™ 3.0 Bus

Support up to 5200MT/s

Chipsatz

AMD 970 North Bridge + AMD SB950 South Bridge

Arbeitsspeicher

4 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory (Note 1; AM3+ CPU benötigt)

Dual channel memory architecture

Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules (Note 2)

(Please refer "Memory Support List" for more information.)

Realtek® ALC887 Audio codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN

1 x Realtek® GbE LAN chip (10/100/1000 Mbit)

Erweiterungssteckplätze

1 x PCI Express x16 2.0 slot, running at x16 (PCIEX16) (Note 3)

1 x PCI Express x16 2.0 slot, running at x4 (PCIEX4)

3 x PCI Express x1 2.0 slots

2 x PCI slots

Storage Interface

6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices

Support for RAID 0, RAID 1, RAID 5, RAID 10 and JBOD

Multi-Graphics Technology

Support for AMD CrossFireX™ technology (PCIEX16 and PCIEX4)

USB

Up to 12 USB 2.0/1.1 ports (6 ports on the back panel, 6 ports available through the internal USB headers) by Sothbridge

Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header) by VIA® VL805

Interne I/O Anschlüsse

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

6 x SATA 6Gb/s connectors

1 x 4-pin CPU fan header

1 x 4-pin system fan header

1 x 3-pin system fan header

1 x 3-pin power fan header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

3 x USB 2.0/1.1 headers

1 x USB 3.0/2.0 header

1 x Clear CMOS jumper

Rückseite I/O Panel

1 x PS/2 keyboard port

1 x PS/2 mouse port

6 x USB 2.0/1.1 ports

2 x USB 3.0/2.0 ports

1 x RJ-45 port

3 x audio jacks (Line In / Line Out / Microphone)

I/O

ITE IT8620E chip

H/W Überwachung

System voltage detection

CPU/System temperature detection

CPU/System/Power fan speed detection

CPU overheating warning

CPU/System/Power fan fail warning

CPU/System fan speed control (Note 4)

BIOS

2 x 32 Mbit flash

Use of licensed AM UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Einzigartige Funktionen

Support for @BIOS, Q-Flash, APP Center (Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications), Xpress Install, EasyTune (Note 4, Available functions in EasyTune may differ by motherboard model), Smart Recovery 2, ON/OFF Charge, Ambient LED, Cloud Station, Game Controller, Smart TimeLock, System Information Viewer, USB Blocker, Smart Switch

Betriebssystem

Support for Microsoft Windows 10 / 8.1 / 7 32-bit/64-bit

Form Factor

ATX Form Factor; 30.5cm x 21.5cm

Hinweise

(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

(Note 2) To support a DDR3 1866 MHz (and above) memory, you must install an AMD AM3+ CPU first.

(Note 3) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

(Note 4) Whether the fan speed control function is supported will depend on the cooler you install.

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
