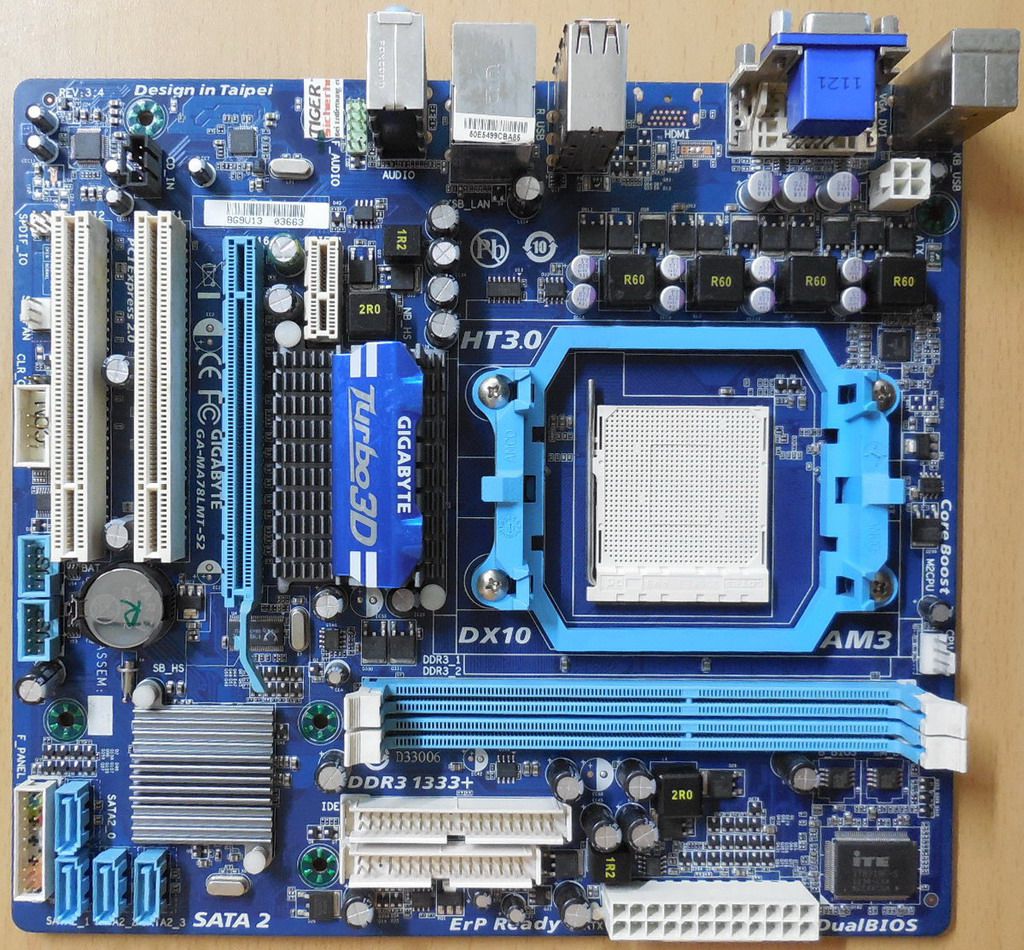

Gigabyte GA-MA78LMT-S2 Rev 3.4 Mainboard +Blende AMD 760G Sockel AM3 DDR3* m1044

Gigabyte GA-MA78LMT-S2 Rev 3.4 Mainboard + Blende AMD 760G Sockel AM3 DDR3

Technische Daten

CPU

Support for AMD Phenom™ II / AMD Athlon™ II AM3 processors

Hyper Transport Bus

5200 MT/s

Chipset

AMD 760G North Bridge + AMD SB710 South Bridge

Memory

2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)

Dual channel memory architecture

Support for DDR3 1333/1066/800 MHz memory modules

Support for non-ECC memory modules

Onboard Graphics

Integrated in the North Bridge

1 x D-Sub port

1 x DVI-D port (Note 2)

Audio

Realtek ALC888B High Definition Audio codec

2/4/5.1/7.1-channel (Note 3)

Support for S/PDIF In; S/PDIF Out; CD In

Gigabit LAN

Realtek 8111D/E chip (10/100/1000 Mbit)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (conforms to PCI Express 2.0 standard.)

1 x PCI Express x1 slots

2 x PCI slots

Storage Interface

by South Bridge:

1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

Support for SATA RAID 0, RAID 1, RAID 10 and JBOD

by iTE IT8718 chip:

1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)

Internal I/O Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

1 x floppy disk drive connector

1 x IDE connector

4 x SATA 3Gb/s connectors

1 x 4-pin CPU fan header

1 x 3-pin system fan header

1 x front panel header

1 x front panel audio header

1 x CD In connector

1 x S/PDIF In/Out header

2 x USB 2.0/1.1 headers

1 x serial port COM header

1 x clearing CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard or PS/2 mouse port

1 x D-Sub port

1 x DVI-D port (Note 2)

8 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O Controller

ITE IT8718 chip

H/W Monitoring

System voltage detection; CPU/System temperature detection; CPU/System fan speed detection; CPU overheating warning; CPU/System fan fail warning; CPU/System fan speed control (Note 4)

BIOS

2 x 8 Mbit flash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

Support for @BIOS; Q-Flash; Download Center; Xpress Install; Xpress Recovery2; EasyTune (Note 5); Xpress BIOS Rescue; Smart Recovery; Auto Green; On/Off Charge; Q-share

Operating System

Support for Microsoft® Windows® 7 / Vista / XP

Form Factor

Mirco ATX Form Factor; 24.3cm x 22.0 cm

Notes

(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.

(Note 2) The DVI-D port does not support D-Sub connection by adapter.

(Note 3) To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver.

(Note 4) Whether the CPU/system fan speed control function is supported will depend on the CPU/ system cooler you install.

(Note 5) Available functions in EasyTune may differ by motherboard model.

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
