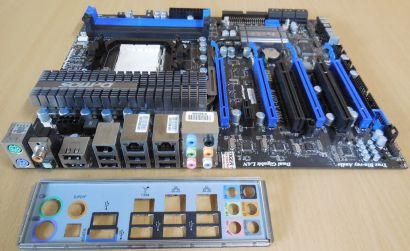

MSI 790FX-GD70 MS-7577 Ver1.1 Mainboard +Blende AMD 790FX Sockel AM3 DDR3* m1043

MSI 790FX-GD70 MS-7577 Ver 1.1 Mainboard + Blende AMD 790FX Sockel AM3 DDR3

Technische Daten

CPU

64-bit AMD® Phenom II CPU

Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

HyperTransport 3.0 supporting speed up to 5200MT/s

Chipset

AMD® 790FX and SB750 Chipset

Main Memory

Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600*/1800*/2133* (OC) SDRAM, 16GB Max

Slots

2 x PCI Express x16 slots (PCI_E1 & PCI_E4) support up to PCIE 2.0 x16 speed (PCI Express Bus SPEC V2.0 compliant; supports CrossFire Technology)

2 x PCI Express x16 slots (PCI_E3 & PCI_E5) support up to PCIE 2.0 x8 speed  (PCI Express Bus SPEC V2.0 compliant; supports CrossFire Technology)

When 4 PCI Express x16 slots are all installed, the PCIE x 16 lanes will auto arrange form x16/ x0/ x16/ x0 to x8/ x8/ x8/ x8

1 x PCI Express gen2 x1 slot

2 x PCI slots, support 3.3V/ 5V PCI bus Interface

On-Board IDE by AMD® SB750

Supports Ultra DMA 66/100/133 mode; Supports PIO, Bus Master operation mode

Can connect up to two IDE devices

On-Board SATA

6 x SATA II 3Gb/s(1~6) ports by AMD® SB750

2 x SATA II 3Gb/s(7~8) ports by JMicron® JMB322

1 x eSATA port by JMicron® JMB362

RAID Function

SATA II 1~6 support RAID 0, 1, 5, 10 or JBOD mode by AMD® SB750

SATA II 7~8 support RAID 0, 1, or JBOD mode by JMicron® JMB322

Realtek® ALC889 Chipset integrated Audio

True Blu-ray Audio Support

Flexible 8-channel audio with jack sensing

Compliant with Azalia 1.0 Spec

Dual Gigabit LAN

Dual Realtek PCI-E GbLAN controller 8111DL

Integrated Fast Ethernet MAC and PHY in single chip

Supports 10Mb/s, 100Mb/s and 1000Mb/s

Compliance with PCI-Express Bus specification v1.0a

VIA® VT6315N IEEE1394 / FireWire

Transfer rate is up to 400Mbps

Internal I/O Connectors

1 x ATX 24-pin power connector

1 x ATX 8-pin 12V CPU power connector

1 x 4-pin CPU FAN connector

4 x 3-pin System FAN connector

1 x CD-in connector

1 x Front panel audio connector

1 x JFP1 Front panel connector

1 x JFP2 Front panel connector

1 x Chassis intrusion switch connector

2 x USB 2.0 connectors

1 x Floppy disk drive connector

8 x Serial ATA II connectors

1 x ATA133 HD connector

1 x Serial port connector

1 x Clear CMOS button

1 x Power button

1 x Reset button

1 x Green Power button

1 x OC Gear button

1 x OC Drive regulator

1 x SPDIF-Out connector

1 x Debug LED

1 x IEEE1394 connector support additional 1 port

1 x TPM module header

1 x JSMB1 header

1 x JSPI1 connector

Back Panel I/O Ports

1 x PS/2 keyboard

1 x PS/2 mouse

7 x USB 2.0 ports

1 x eSATA/USB share port

2 x RJ45 LAN jacks

1 x coaxial SPDIF-out port

1 x optical SPDIF-out port

1 x IEEE1394 port

1 x 6 in 1 audio jack

Dimension & Mounting

30.4cm(L) x 24.5cm(W) ATX Form Factor; 9 mounting holes

Lieferumfang

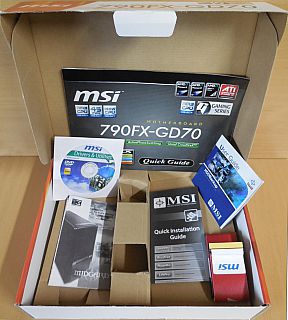

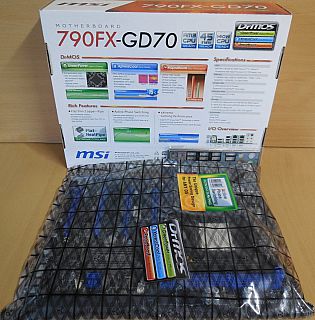

Das Mainboard inkl. Blende, Anleitungen, CD und IDE Kabel in OVP * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
