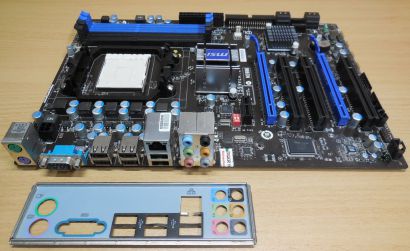

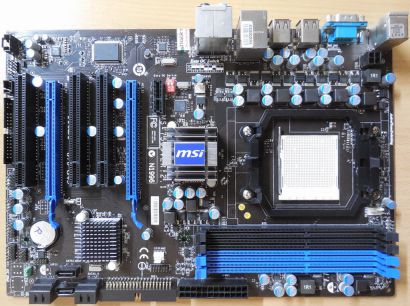

MSI 870-G45 MS-7599 Ver2.1 Mainboard +Blende AMD Sockel AM3 DDR3 PCIe SATA* m881

MSI 870-G45 MS-7599 Ver 2.1 Mainboard + Blende AMD Sockel AM3 DDR3 PCIe SATA

Technische Daten

CPU

64bit AMD® Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU.

Please refer to CPU Support for compatible CPU; the above description is for reference only.

Hyper Transport Bus

HyperTransport 3.0 supporting speed up to 5200MT/s

Chipset

AMD® 870 and SB710 Chipset

Main Memory

Supports four unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333/1600*/1800*/2000* (OC) DRAM, 16GB Max

Slots

1 x PCI Express 2.0 slot with x16 operation (PCI Express Bus SPEC V2.0 compliant)

1 x PCI Express 2.0 slot with x4 operation (PCI Express Bus SPEC V2.0 compliant)

1 x PCI Express x1 slot

3 x PCI slots, support 3.3V/ 5V PCI bus Interface.

On-Board IDE

One IDE port by AMD® SB710

- Supports Ultra DMA 66/100/133 mode

- Supports PIO, Bus Master operation mode

- Can connect up to two IDE devices

On-Board SATA

6 x SATA II (1~6) ports by AMD® SB710

- Supports storage and data transfers at up to 3Gb/s

RAID Function

SATA II 1~6 support RAID 0, 1, 10 or JBOD mode by AMD® SB710

Audio

Chipset integrated by VIA® VT1828S

- Flexible 8-channel audio with jack sensing

- Compliant with Azalia 1.0 Spec

LAN

Atheros PCI-E GbLAN controller AR8131M

- Supports 10Mb/s, 100Mb/s and 1000Mb/s

- Compliance with PCI-Express Bus specification v1.0a

Internal I/O Connectors

- 1 x ATX 24-pin power connector

- 1 x ATX 4-pin 12V CPU power connector

- 1 x CPU FAN + 2 x System FAN connectors

- 1 x Front panel audio connector

- 1 x Front panel connector

- 1 x Front panel 2 connector JFP2

- 1 x Chassis intrusion switch connector

- 3 x USB 2.0 connectors

- 6 x Serial ATA II connectors

- 1 x ATA133 HD connector

- 1 x Easy OC Switch

- 1 x Clear CMOS jumper

- 1 x SPDIF-out  connector

- 1 x CD-In connector

- 1 x TPM module connector

- 1 x JSPI1 connector

Back Panel I/O Ports

- 1 x PS/2 keyboard

- 1 x PS/2 mouse

- 1 x Serial port

- 6 x USB 2.0 ports

- 1 x RJ45 LAN jack

- 6 in 1 audio jack

Dimension

30.5cm(L) x 21.0cm(W) ATX Form Factor

Mounting

6 mounting holes.

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
