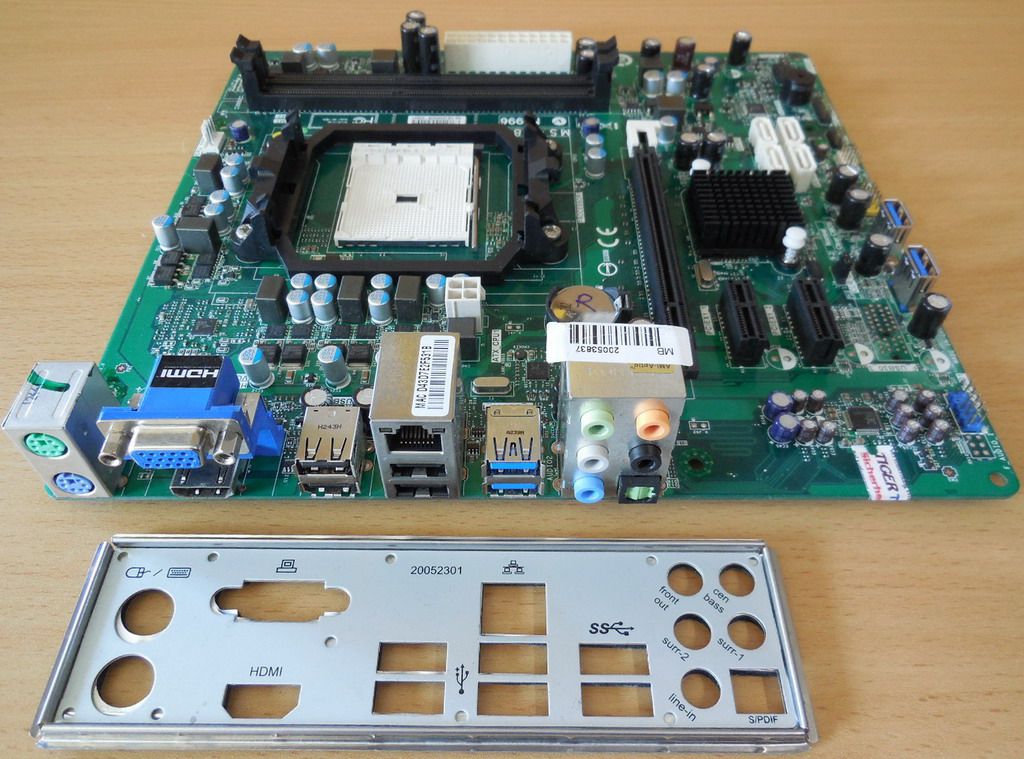

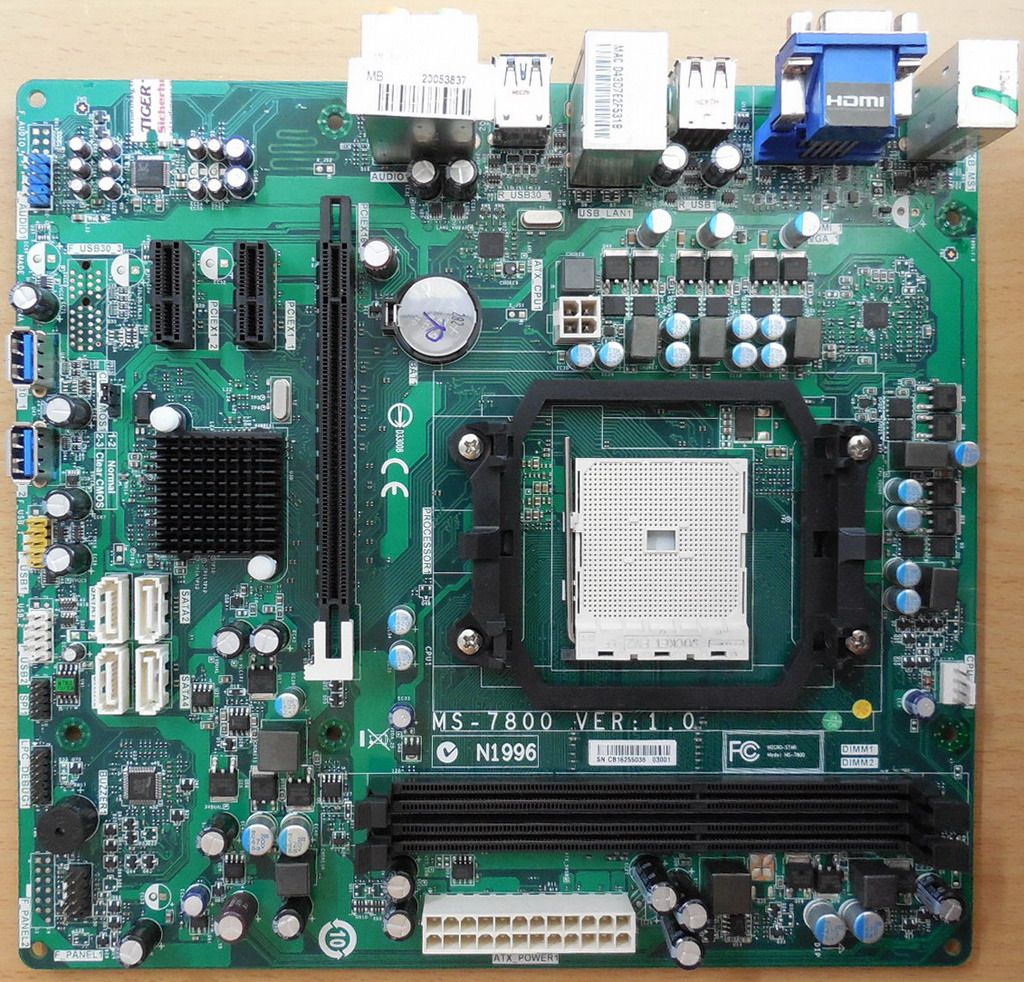

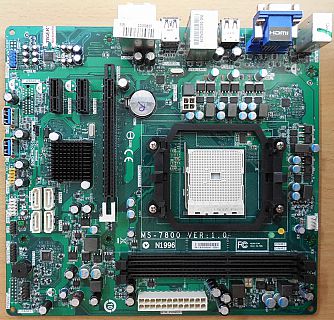

Medion Akoya E4065D MSI MS-7800 Ver1.0 Mainboard +Blende AMD Sockel FM2* m1009

Medion Akoya E4065D MSI MS-7800 Ver 1.0 Mainboard + Blende AMD Sockel FM2

Technische Daten

Processor Support

AMD® A8-550 APU in the socket FM2 package

Chipset

AMD® A55 chipset

Memory Support

DDR3 1066/1333/1600/1866/SDRAM (8GB Max)

2 x DDR3 DIMMs (240pin/1.5V)

LAN

Supports 10/100/1000 Gigabit Ethernet LAN by Realtek

Audio

Realtek 7.1channel Audio chip integrated

Back panel

1 x PS/2 mouse port

1 x PS/2 keyboard port

1 x VGA port

1 x HDMI port

4 x USB 2.0 Ports

2 x USB 3.0 Ports

1 x LAN jack (10/100/1000)

7.1-channel Audio I/O

On-Board Pinheaders & Connectors

1 x 24-pin ATX connector

1 x 4-pin P4 12V connector

1 x 4-pin CPU FAN connector

4 x SATAIII connectors

1 x LPC_Debug1 connector

1 x SPI1 connector

2 x USB 2.0 pinheaders

2 x USB 3.0 connectors

1 x Front Panel connector

​​​​​​​1 x Buzzer

​​​​​​​1 x Front Audio Panel connector

1 x CMOS Jumper

Slots

1 x PCI Express x16 slot

2 x PCI Express x1 slots

Form Factor

ATX; ca. 24.5 cm X 22.5 cm

Lieferumfang

Das Mainboard inkl. Blende * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
