ASRock Fatal1ty H87 Performance Mainboard + Blende Intel H87 Sockel 1150* m1031
Für eine größere Ansicht klicken Sie auf das Vorschaubild

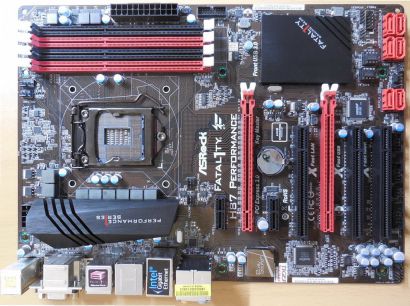

ASRock Fatal1ty H87 Performance Mainboard + Blende Intel H87 Sockel 1150* m1031
ASRock Fatal1ty H87 Performance Mainboard + Blende Intel H87 Sockel 1150* m1031
ASRock Fatal1ty H87 Performance Mainboard + Blende Intel H87 Sockel 1150* m1031
ASRock Fatal1ty H87 Performance Mainboard + Blende Intel H87 Sockel 1150* m1031

ASRock Fatal1ty H87 Performance Mainboard + Blende Intel H87 Sockel 1150* m1031

Art.Nr: m1031
Lieferzeit: 3 Tage
GTIN/EAN: 4717677321067
Lagerbestand: 0
Artikelzustand: gebraucht
HAN: Fatal1ty H87 Performance
Hersteller: ASRock

Dieser Artikel ist momentan nicht verfügbar
114,95 €
inkl. Mwst. Differenzbesteuert nach §25a UStG
gegebenenfalls plus Versandkosten

Produktbeschreibung

ASRock Fatal1ty H87 Performance Mainboard + Blende Intel H87 Sockel 1150

Technische Daten

A-Style

Home Cloud

Purity Sound™

HDMI-In

Gaming Armor

CPU Power:       Hi-Density Power Connector

VGA Card:       15μ Gold Finger in VGA PCIe Slot (PCIE2)

Internet:       Intel® LAN

Audio:       Purity Sound™

CPU

Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)

Digi Power Design

8 Power Phase Design

Supports Intel® Turbo Boost 2.0 Technology

Chipsatz

Intel® H87

Supports Intel® Small Business Advantage 2.0

Arbeitsspeicher

Dual Channel DDR3/DDR3L memory technology

4 x DDR3/DDR3L DIMM slots

Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory

Max. capacity of system memory: 32GB*

Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2

Distortion-Free Slot

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS (neueste Version ist bereits aufgespielt)

2 x 64Mb AMI UEFI Legal BIOS with Multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)

Supports Secure Backup UEFI Technology

ACPI 1.1 Compliance Wake Up Events

SMBIOS 2.3.1 Support

CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment

Grafik

Supports Intel® HD Graphics Built-in Visuals: Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600

Pixel Shader 5.0, DirectX 11.1

Max. shared memory 512MB*

Multi Graphics Output Options: D-Sub, DVI-D and HDMI

Supports Triple Monitor

Supports HDMI Technology with max. resolution up to 4K x 2K (4096x2304) @ 24Hz

Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)

Supports HDCP function with DVI-D and HDMI ports

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI ports

*The size of maximum shared memory may vary from different operating systems.

**Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit.

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)

Premium Blu-ray audio support

Supports Purity Sound™

115dB SNR DAC with differential amplifier

TI NE5532 Premium Headset Amplifier (Supports up to 600 ohm headsets)

Direct Drive Technology

EMI shielding cover

PCB isolate shielding

Supports DTS Connect

LAN

Gigabit LAN 10/100/1000 Mb/s

Giga PHY Intel® I217V

Supports Intel® Remote Wake Technology, Wake-On-LAN; Energy Efficient Ethernet 802.3az; PXE

Steckplätze

1 x PCI Express 3.0 x16 slot (PCIE2: x16 mode)

1 x PCI Express 2.0 x16 slot (PCIE4: x4 mode)

2 x PCI Express 2.0 x1 slots

3 x PCI slots

Supports AMD Quad CrossFireX™ and CrossFireX™

*If PCIE1 or PCIE3 slot is occupied, PCIE4 slot will run at x2 mode.

Speicherplatz

6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 12 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug

Anschluss

1 x IR header

1 x COM Port header

1 x Power LED header

2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)

3 x Chassis Fan connectors (1 x 4-pin, 2 x 3-pin)

1 x Power Fan connector (3-pin)

1 x 24 pin ATX power connector

1 x 8 pin 12V power connector

1 x Front panel connector

1 x Internal Speaker connector

1 x Front panel audio connector

2 x USB 2.0 headers (support 4 USB 2.0 ports)

1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)

1 x CMOS Jumper

Blende I/O Panel

1 x PS/2 Mouse/Keyboard Port

1 x D-Sub Port

1 x DVI-D Port

1 x HDMI-Out Port

1 x HDMI-In Port

1 x Optical SPDIF Out Port

3 x USB 2.0 Ports

1 x Fatal1ty Mouse Port (USB 2.0)

4 x USB 3.1 Gen1 Ports

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Einzigartige Features

ASRock F-Stream; APP Shop; Instant Flash; APP Charger; XFast USB; XFast LAN; Fast RAM; Crashless BIOS; OMG (Online Management Guard); Internet Flash; System Browser; UEFI Tech Service; Dehumidifier; Easy RAID Installer; Easy Driver Installer; Interactive UEFI; Fast Boot; Restart to UEFI; USB Key; Key Master; Home Cloud; FAN-Tastic Tuning; Hybrid Booster: ASRock U-COP; Boot Failure Guard (B.F.G.); Good Night LED

Hardware Überwachung

CPU, Chassis temperature sensing; CPU, Chassis, Power Fan Tachometer; CPU, Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature); CPU, Chassis Fan multi-speed control; Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore

Formfaktor

ATX Form Factor

ASRock DuraCap (2.5 x longer life time) (100% Japan made high quality conductive polymer capacitors)

Betriebssystem

Microsoft® Windows® 10 64-bit / 8 / 8 64-bit / 7 / 7 64-bit compliant

Zertifizierungen

FCC, CE

ErP/EuP Ready (ErP/EuP ready power supply is required)

Lieferumfang

Das Mainboard inkl. Blende, Handbuch und CD * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
