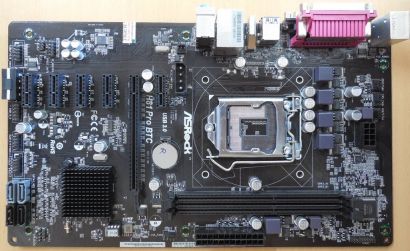

ASRock H81 Pro BTC R2.0 Mining Mainboard Intel Sockel 1150 PCIe DDR3 USB3* m1149

ASRock H81 Pro BTC R2.0 Mining Mainboard Intel H81 Sockel 1150 PCIe DDR3 USB3.0 HDMI

CPU

Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)

Digi Power design

4 Power Phase design

Supports Intel® Turbo Boost 2.0 Technology

Chipsatz

Intel® H81 Express Chipset

Arbeitsspeicher

Dual Channel DDR3 Memory Technology

2 x DDR3 DIMM Slots

Supports DDR3 1600 / 1333 / 1066 non-ECC, un-buffered memory

Supports Intel® Extreme Speicherprofile (XMP) 1.3 / 1.2

Max. capacity of system memory: 16GB

Aufgrund von Limitierungen im Betriebssystem ist es möglich, dass Windows® 32-bit OS weniger als 4 GB RAM für das System reservieren kann. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

Grafik

Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600

Pixel Shader 5.0, DirectX 11.1

Dual Graphics Output: support HDMI and D-Sub ports by independent display controllers

Supports HDMI with max. Auflösung up to 1920x1200 @ 60Hz

Supports D-Sub with max. Auflösung up to 1920x1200 @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

Supports HDCP with HDMI Port

Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

Max. shared memory 512MB*

*The size of maximum shared memory may vary from different operating systems

**Intel® HD Graphics Built-in Visuals und die VGA-Ausgänge können nur bei der Verwendung von CPUs mit integrierter GPU-Einheit genutzt werden

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit

Audio

5.1 CH HD Audio (Realtek ALC662 Audio Codec)

Supports Surge Protection (ASRock Full Spike Protection)

LAN

Realtek RTL8111GR 10/100/1000 Mb/s Gigabit Ethernet LAN Controller

Supports Wake-On-LAN; Wake-On-WAN; Lightning/ESD Protection (ASRock Full Spike Protection); Energy Efficient Ethernet 802.3az; PXE, LAN Cable Detection

Steckplätze

1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode)

5 x PCI Express 2.0 x1 Slots

Speicherplatz

2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Interne I/O Anschlüsse

1 x COM Port Header

1 x TPM Header

1 x Power LED Header

1 x 4-Pin CPU FAN1 Connector

1 x 3-Pin CPU FAN2 Connector

1 x 3-Pin Power FAN Connector

1 x 4-Pin Chassis FAN Connector

1 x 3-Pin Chassis FAN Connector

1 x 24-Pin ATX Power Connector

1 x 8-Pin 12V Power Connector

2 x SATA III Connectors

2 x SATA II Connectors

1 x System Panel Connector

1 x Internal Speaker Connector

1 x SPDIF Out Connector

1 x Clear CMOS Jumper

1 x Front Panel HD Audio Connector

2 x Molex PCIe Power Connectors

2 x USB 2.0 Headers for 4 USB 2.0 ports (Supports ESD Protection - ASRock Full Spike Protection)

1 x IR Header

I/O Blende

1 x PS/2 Mouse Port

1 x PS/2 Keyboard Port

1 x Serial COM1 Port

1 x Parallel Port (ECP/EPP)

1 x HDMI Port

1 x D-Sub VGA Port

2 x USB 2.0 Ports (Supports ESD Protection - ASRock Full Spike Protection)

2 x USB 3.1 Gen1 Ports (Supports ESD Protection - ASRock Full Spike Protection)

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

BIOS

32Mb AMI UEFI Legal BIOS with multilingual GUI support

ACPI 1.1 Compliant wake up events

SMBIOS 2.3.1 support

CPU, DRAM, PCH 1.05V Voltage multi-adjustment

Einzigartige Features

ASRock Super Alloy       High Density Glass Fabric PCB

ASRock Full Spike Protection

ASRock Live Update & APP Shop

Software und UEFI

Software       ASRock USB Key; APP Charger; Fast Boot (Fast Boot, Restart to UEFI)

UEFI       ASRock Interactive UEFI; UEFI Guide; Sofort-Flash; Internet Flash; Crashless BIOS; UEFI Tech Service; Dehumidifier; Easy Driver Installer

Hardware-Überwachung

CPU, Chassis temperature sensing

CPU, Chassis, Power Fan Tachometer

CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)

CPU, Chassis Fan multi-speed control

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Formfaktor

ATX Form Factor; 12.0-in x 7.0-in, ca. 30.5 cm x 17.8 cm

All Solid Capacitor design

Betriebssystem

Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Zertifizierungen

FCC, CE

ErP/EuP ready (ErP/EuP ready power supply is required)

Lieferumfang

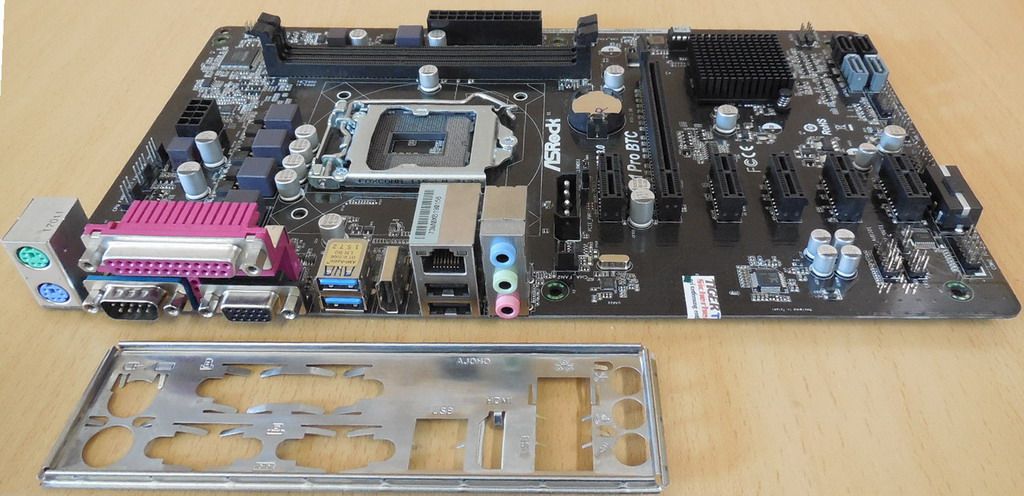

Das Mainboard inkl. Blende * wird ohne weiteres Zubehör in der OVP geliefert * gebraucht *

Abbildung ähnlich
