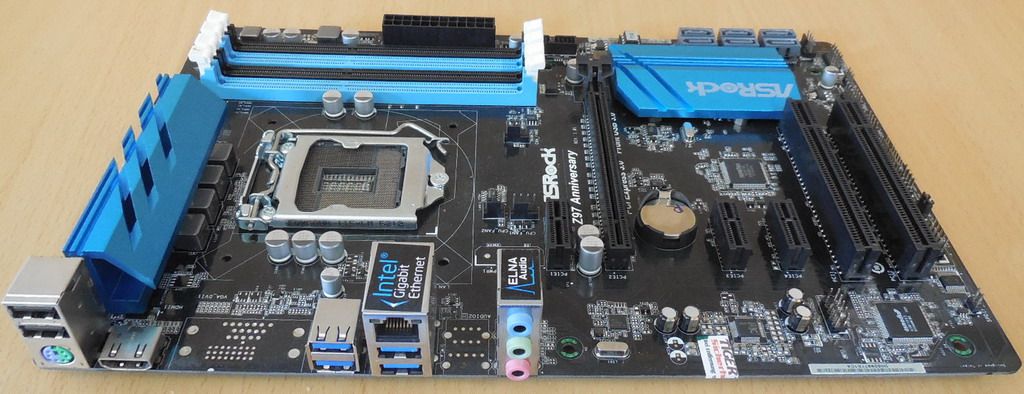

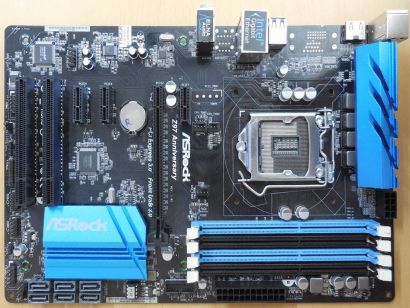

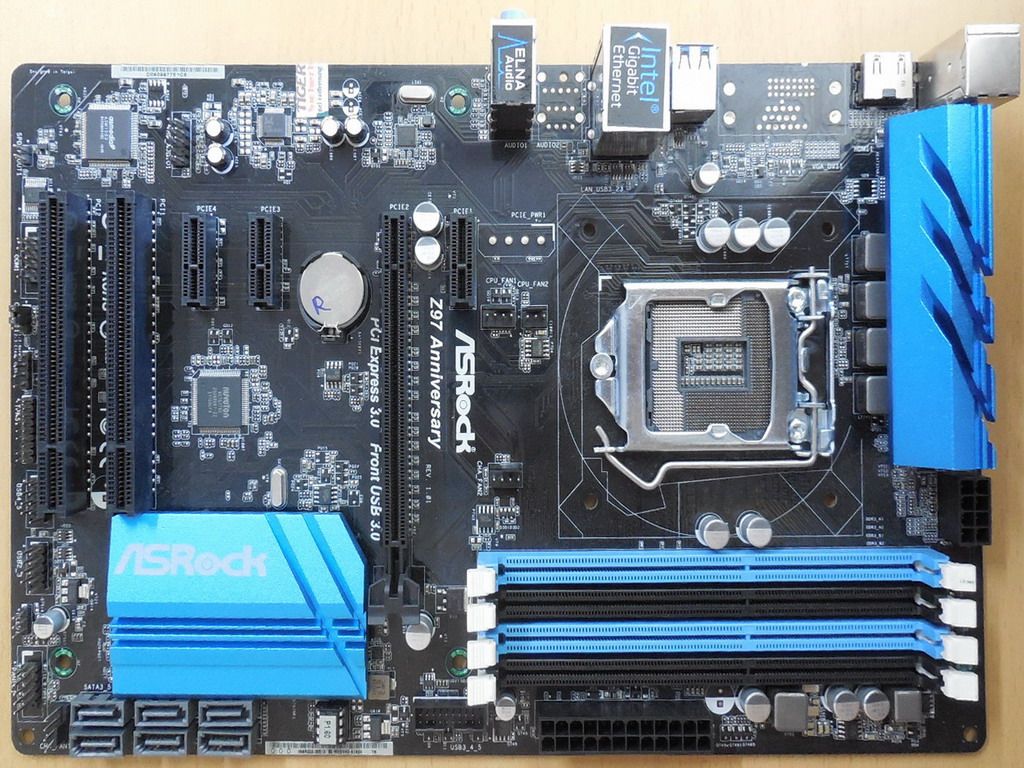

ASRock Z97 Anniversary Mainboard Intel Z97 Sockel 1150 PCIe DDR3 USB3.0* m1132

ASRock Z97 Anniversary Mainboard Intel Z97 Sockel 1150 PCIe DDR3 USB3.0

CPU

Supports 5th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)

Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)

Digi Power design

4 Power Phase design

Supports Intel® Turbo Boost 2.0 Technology; Intel® K-Series unlocked CPUs; ASRock BCLK Full-range Overclocking

Chipsatz

Intel® Z97 Express Chipset

Arbeitsspeicher

Dual Channel DDR3/DDR3L Memory Technology

4 x DDR3/DDR3L DIMM Slots

Supports DDR3/DDR3L 3100+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory

Supports Intel® Extreme Speicherprofile (XMP) 1.3 / 1.2

Max. capacity of system memory: 32GB

Aufgrund von Limitierungen im Betriebssystem ist es möglich, dass Windows® 32-bit OS weniger als 4 GB RAM für das System reservieren kann. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

Grafik

Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600

Pixel Shader 5.0, DirectX 11.1

Supports HDMI with max. Auflösung up to 1920x1200 @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

Supports HDCP with HDMI Port

Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

Max. shared memory 512MB*

*The size of maximum shared memory may vary from different operating systems

**Intel® HD Graphics Built-in Visuals und die VGA-Ausgänge können nur bei der Verwendung von CPUs mit integrierter GPU-Einheit genutzt werden

***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit

****Intel® InTru™ 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit

Audio

7.1 CH HD Audio (Realtek ALC887 Audio Codec)

Supports Surge Protection (ASRock Full Spike Protection)

ELNA Audio Caps

*Um 7.1-CH-Sound zu konfigurieren, nutzen Sie bitte das HD-Front-Panel und aktivieren das Multi-Kanal-Sound-Feature im Soundtreiber

LAN

Gigabit LAN 10/100/1000 Mb/s

Giga PHY Intel® I218V

Supports Intel® Remote Wake Technology; Wake-On-LAN; Lightning/ESD Protection (ASRock Full Spike Protection); Energy Efficient Ethernet 802.3az; PXE

Steckplätze

1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)

3 x PCI Express 2.0 x1 Slots

2 x PCI Slots

Speicherplatz

6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 13 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug

Interne I/O Anschlüsse

1 x COM Port Header

1 x TPM Header

1 x Power LED Header

1 x 4-Pin CPU Fan Connector

1 x 3-Pin CPU Fan Connector

2 x 4-Pin Chassis Fan Connectors

1 x 3-Pin Power Fan Connector

1 x 24-Pin ATX Power Connector

1 x 8-Pin 12V Power Connector

6 x SATA III Connectors

1 x System Panel Connector

1 x Speaker Connector

1 x SPDIF Out Connector

1 x Clear CMOS Jumper

1 x Front Panel HD Audio Connector

2 x USB 2.0 Headers for 4 USB 2.0 ports (Supports ESD Protection - ASRock Full Spike Protection)

1 x USB 3.1 Gen1 Header for 2 additional USB 3.1 Gen1 ports (Supports ESD Protection - ASRock Full Spike Protection)

I/O Blende

1 x PS/2 Mouse/Keyboard Port

1 x HDMI Port

2 x USB 2.0 Ports

4 x USB 3.1 Gen1 Ports

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

BIOS

64Mb AMI UEFI Legal BIOS with multilingual GUI support

ACPI 1.1 Compliant wake up events

SMBIOS 2.3.1 support

CPU, DRAM, PCH 1.05V Voltage multi-adjustment

Einzigartige Features

ASRock Super Alloy       Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke); NexFET™ MOSFET; Sapphire Black PCB

ASRock Full Spike Protection

ASRock Cloud

ASRock APP Shop

Software und UEFI

Software       ASRock A-Tuning; Disk Health Report; USB Key; APP Charger; XFast RAM; Restart to UEFI; Pentium® Anniversary Boost

UEFI       ASRock Full HD UEFI; My Favorites in UEFI; UEFI Guide; Sofort-Flash; Internet Flash; Crashless BIOS; OMG (Online Management Guard); UEFI System Browser; UEFI Tech Service; Dehumidifier; Easy RAID Installer; Easy Driver Installer

Hardware-Überwachung

CPU, Chassis temperature sensing

CPU, Chassis, Power Fan Tachometer

CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)

CPU, Chassis Fan multi-speed control

Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Formfaktor

ATX Form Factor

Solid Capacitor design

High Density Glass Fabric PCB

Betriebssystem

Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Zertifizierungen

FCC, CE

ErP/EuP ready (ErP/EuP ready power supply is required)

Lieferumfang

Nur das Mainboard * ohne weiteres Zubehör * gebraucht *

Abbildung ähnlich
