Produktbeschreibung

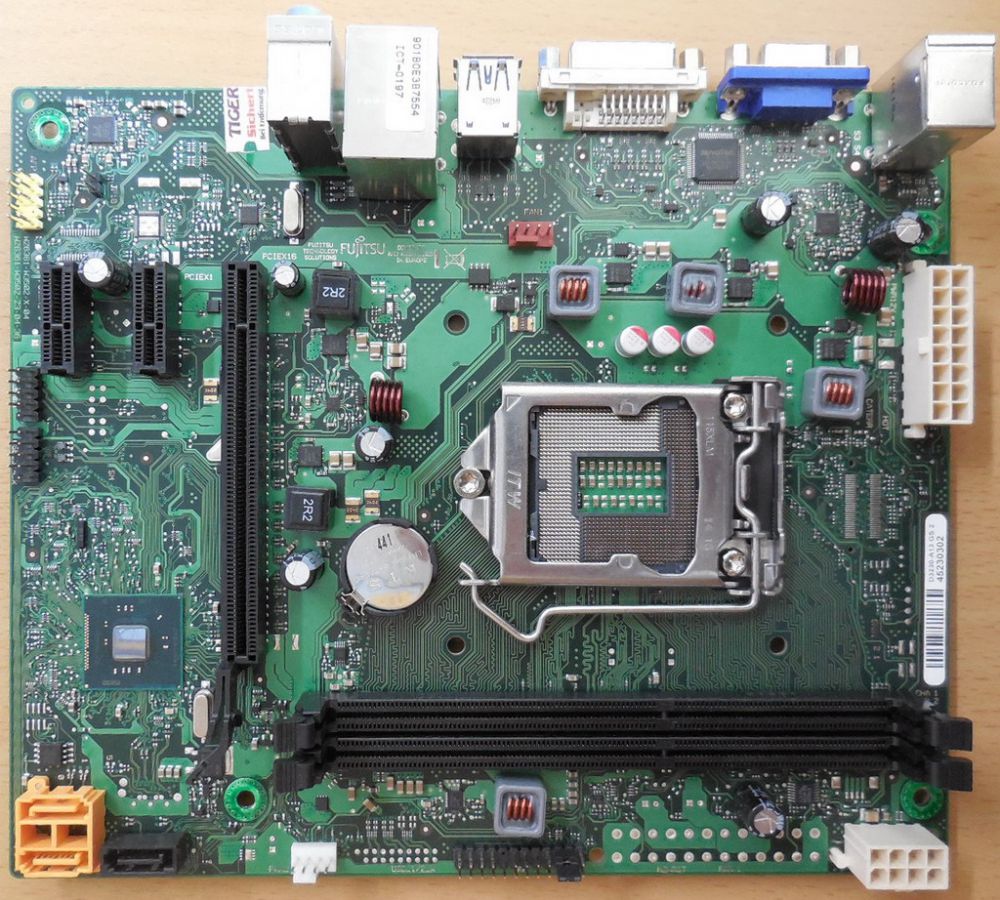

Fujitsu Esprimo P420 D3230-A13 GS2 Mainboard + Blende Intel H81 Sockel 1150
Technische Daten
Hersteller: Fujitsu
Model: D3230-A13 GS2
CPU-Unterstützung:
Intel® Core™ i7 / Intel® Core™ i5 / Intel® Core™ i3 processors with max. 95W
(For details on supported processors please refer to the Fujitsu Website)
Sockel: Intel 1150
Chipsatz: Intel H81
Memory: 2x 240-Pin DDR3 1.5V Steckplätze für ungepufferte non-ECC 1333(PC3-10600)/1600(PC3-12800) MHz DIMM Module
Single-Channel und Dual-Channel Support; 64 Bit, max. 16 GB Hauptspeicher
LAN: Realtek RTL8111G Gigabit Ethernet Controller with 10/100/1000 MBit/s; WoL; Remote Boot
Audio: Realtek ALC 671, 5.1-channel Surround Sound, High Definition Audio
Erweiterungssteckplätze: 1x PCI-E2.0 x16; 2x PCI-E x1
USB: 2x USB3.0 (Rear Panel); 6x USB2.0 (2x Rear Panel; 4x via Header)
Intern: Echtzeituhr/Kalender mit Batteriepufferung
2 x SATA3 Ports (bis zu 6GBit/s)
1 x SATA2 Ports (bis zu 3GBit/s)
1 x FAN1 Connector (4-pin)
1 x FAN2 Connector (4-pin)
2 x USB2.0 Connector für insgesamt 4 weitere USB Ports z.B. via Blende
1 x Fujitsu ATX Power 16-pin
1 x Fujitsu SATA Power 8-pin
1 x Audio Front Panel Connector (AFP)
Externe Anschlüsse: 1x VGA Sub-D; 1x DVI-D; 1x PS/2 Maus, 1x PS/2 Tastatur, 2x USB3.0, 1x LAN, 2x USB2.0, 1x Line-In, 1x Line-Out, 1x Mic
Hardware Monitoring
FAN monitored and controlled CPU (FAN1) / System (FAN2); TEMP monitored CPU / Onboard1
BIOS
AMI Aptio 4.6
BIOS Flash EPROM-Aktualisierung per Software
Wiederherstellungs-BIOS
Unified Extensible Firmware Interface (UEFI)
Special Features
Silent Fan LT Independent temperature related processor fan and system fan control
System Guard View Silent Fan LT features
Silent Drives Noise reduction for optical and hard disk drives
Recovery BIOS Restores a corrupted BIOS
Desk Update Simple driver update with Driver&Utilities DVD
Multi Boot Comfortable boot from any boot device
HDD Password Access protection for disk drives
Keyboard Power Button Fujitsu Technology Solutions Keyboard Power Button Support
Low Power Soft Off Reduced Energy consumption in shut down
USB Power Off Enable/Disable USB Power via BIOS in shut down mode
Formfaktor: Ultra small μATX 219 x 184 mm (z.B. Esprimo P420)
Lieferumfang

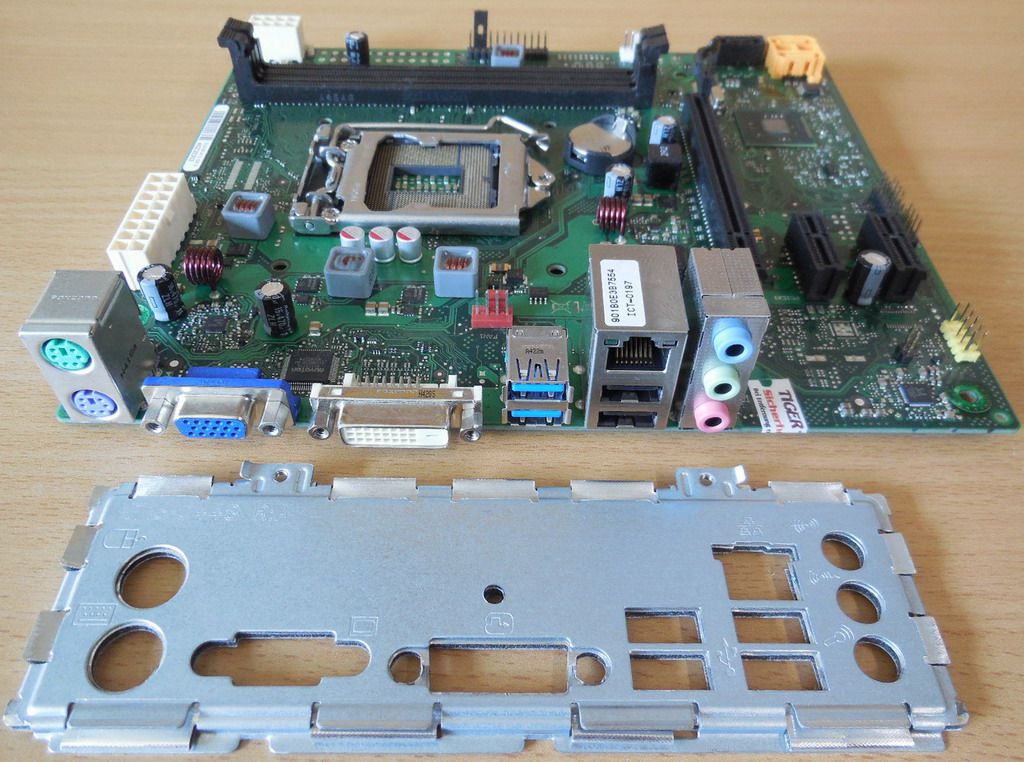

Das Mainboard inkl. Blende - ohne weiteres Zubehör * gebraucht *
Abbildung ähnlich
